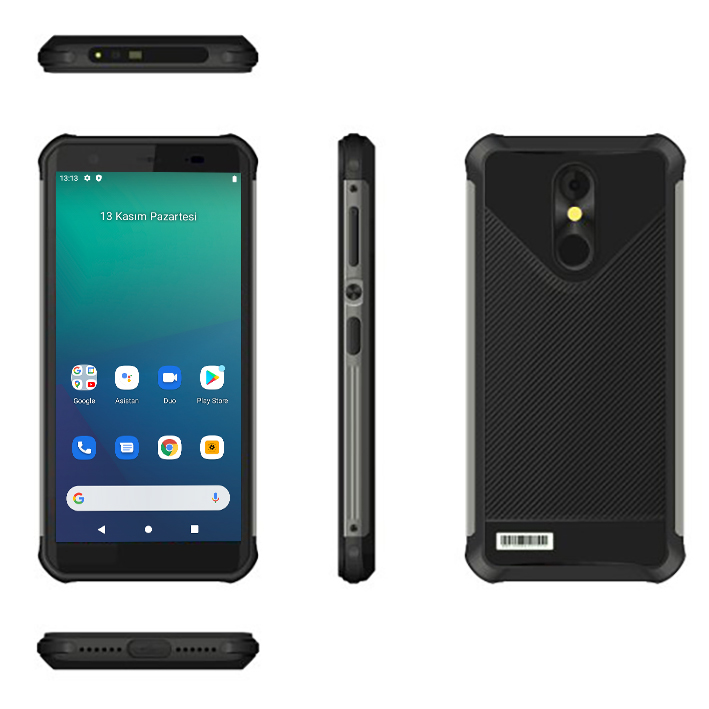

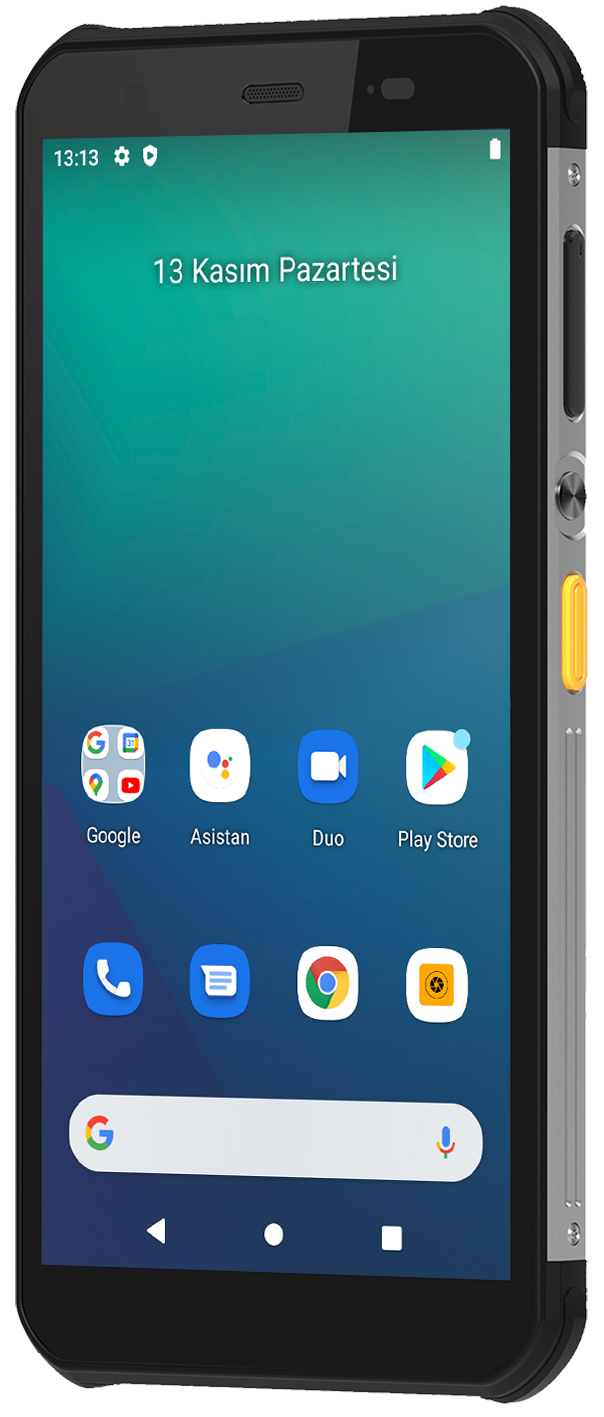

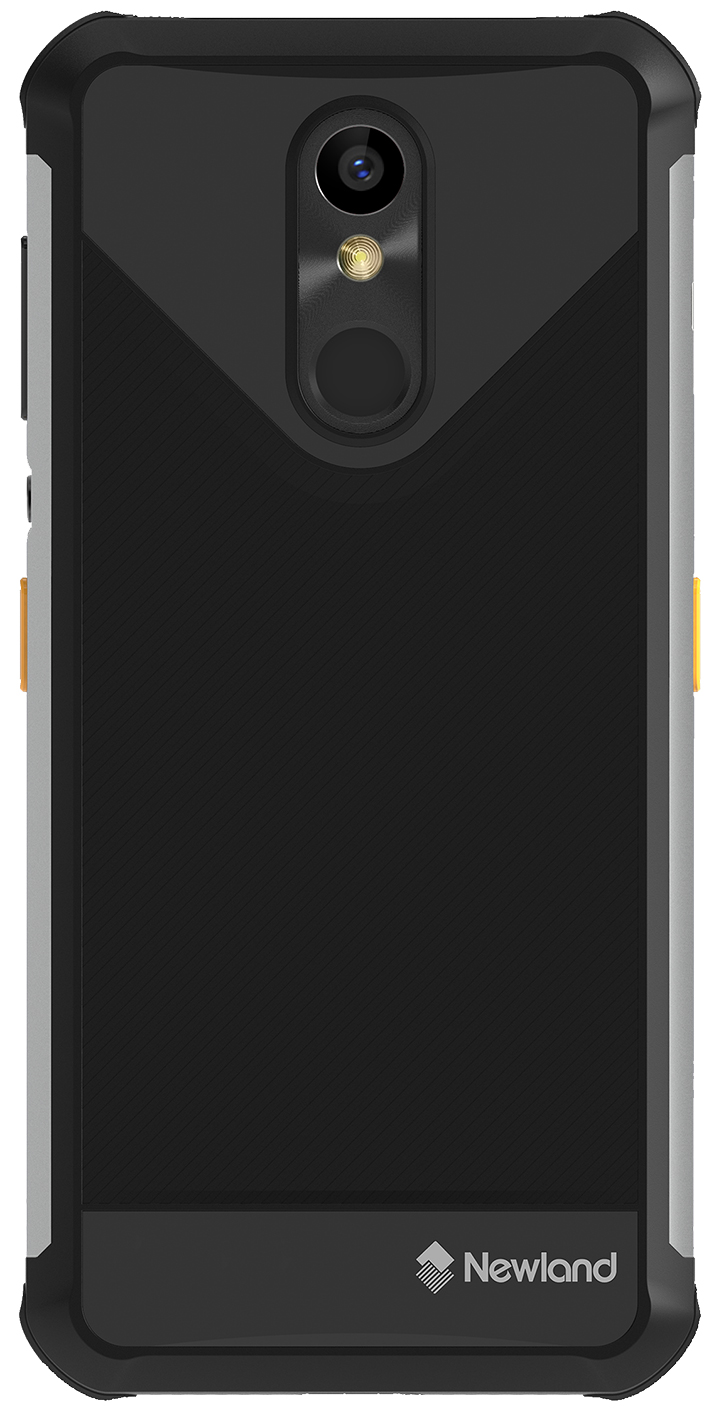

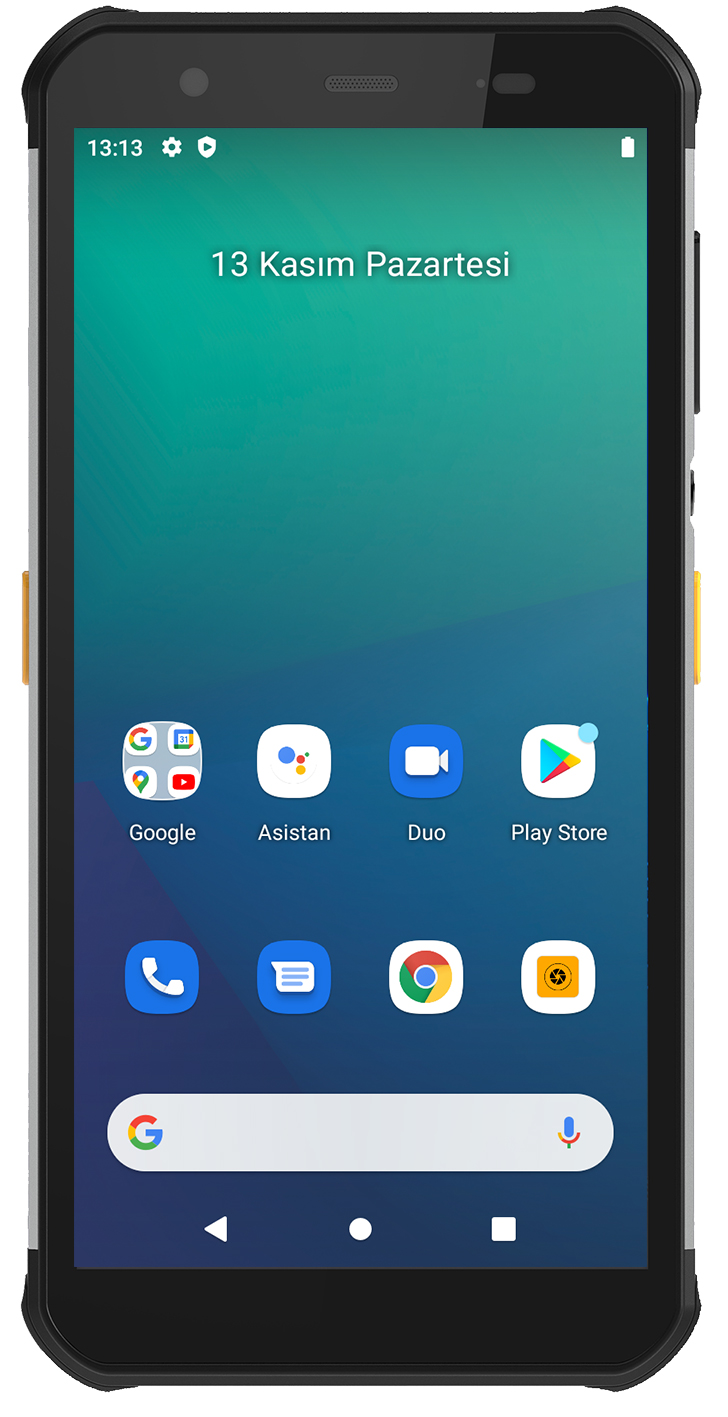

Newland NFT10
(Pilot Pro)
Android Handheld Terminal



● Android 11 (R) Operation Systems
● GMS (Google Mobile Service) Support
● Octa Core 2,0 Ghz Proccessor
● 4 GB RAM, 64 GB ROM
● 5 Inch Capacitive Touch Screen
● Wifi, Bluetooth, 4G, NFC, GPS Technology
● 2D Barcode Scanner
● IP65 Protection Class

 Model  Operation System Wifi Bluetooth 4G GSM
  NLS-NFT1055-W4  Android 11.0 (R) Yes Yes Yes Yes
System
 Micro Processor Octa Core 2,0 Ghz (64-bit) Proccessor
 Memory 4 GB RAM, 64 GB ROM
 Operation System Android 11 (R) (GMS + AER)
(GMS = Google Mobile Service)
(AER= Android Enterprise Recommended)
 Camera Rear  13 Megapixels, (Auto Focus, With LED Flashlight)
Front  2 Megapixels, (Fixed Focus)
 Keypad  5 Pcs (Including Side Keys)
 Notification Vibrator, Muli Color LED and Speaker
 Expansion MicroSD card slot (Max. 128 GB)
 Display
 Display Type HD
 Touch Screen Type Capacitive
 Dimension 5" (Inch)
 Resolutioin 1280 x 720 Pixel
 Features Full Touch, Gorilla® Glass
Barcode Scanner
 Optic System 2D Area Imager
 Supported Barcode Types 1D: Code 128, UCC/EAN-128, AIM 128, EAN-8, JAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 25, ITF-6, ITF-14, Deutsche 14, Deutsche 12, COOP 25, Matrix 25, Industrial 25, Standard 25, Code 39, Codabar/NW7, Code 93, Code 11, Plessey, MSI/Plessey, GS1 Databar
2D: QrCode PDF417, QRs Code, Data Matrix, Chinese Sensible Code etc.
 Communications
 USB Type-C 2.0 (OTG)
 Wifi Frequency 2.4 Ghz and 5 Ghz
Protocol IEEE 802.11 a/b/g/n/ac
 Bluetooth Bluetooth 4.2 LE (Backward Compatible)
 WWAN 2G: GSM/GPRS/EDGE (900/1800MHz)
3G: WCDMA (B1, B8); CDMA2000 1X/ EV-DO Rev. A (BC0);
TD-SCDMA (B34, B39)
4G: TD-LTE (B38, B39, B40, B41), FDD-LTE (B1,B2,B3,B5,B7B8,B20,B28)
Card Slot: Nano + Nano or Nanon +TF
 GSM Available
 GPS GPS, Beidou, GLONASS
 RFID Frequency: 13,56 Mhz
Supported Tags: SO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags
 Electrical
 Power Source Input: AC100 ~ 240V, 50 ~ 60Hz
Output: 5V/7V/9V, 1.67A
 Main Battery 3.8V, 4800 mAh (In NFT10-BHGG-B Model)
4.3V, 4800 mAh (In NLS-NFT10-W4 Model)
 Working time ~ 10 Hours
 Charge time ~ 5 Hours (Via AC Adapter)
 Physical
 Dimensions Width: 76.3 mm
Height: 157 mm
Thickness: 12.6 mm
Weight 231g (including battery)
 Enviromental
 Operating temperature -20°C to 50°C
 Storage temperature -30°C to 60°C
 ESD ±15 kV (Air Discharge), ±8 kV (Direct Discharge)
 Drop 1.22 meter (MIL-STD-810)
1.5 meter (GBT/T2423.8-1995 PART2)
 Environmental Sealing IP67
 Certifications
 Certifications CE
Accessories
 Accessories USB Cable
  AC adapter
Micro SD (Max. 128 GB)
Rubber Boot
