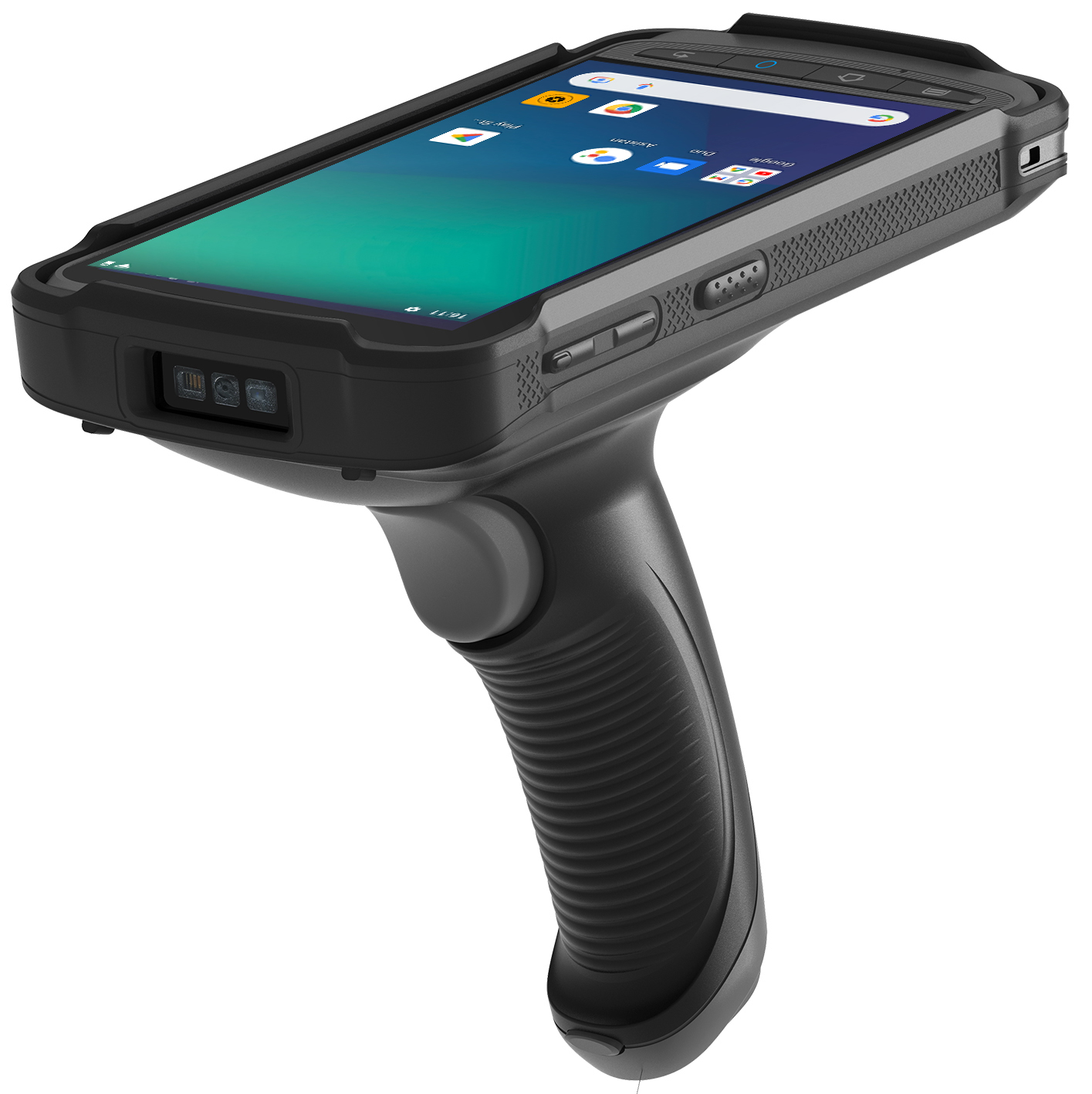

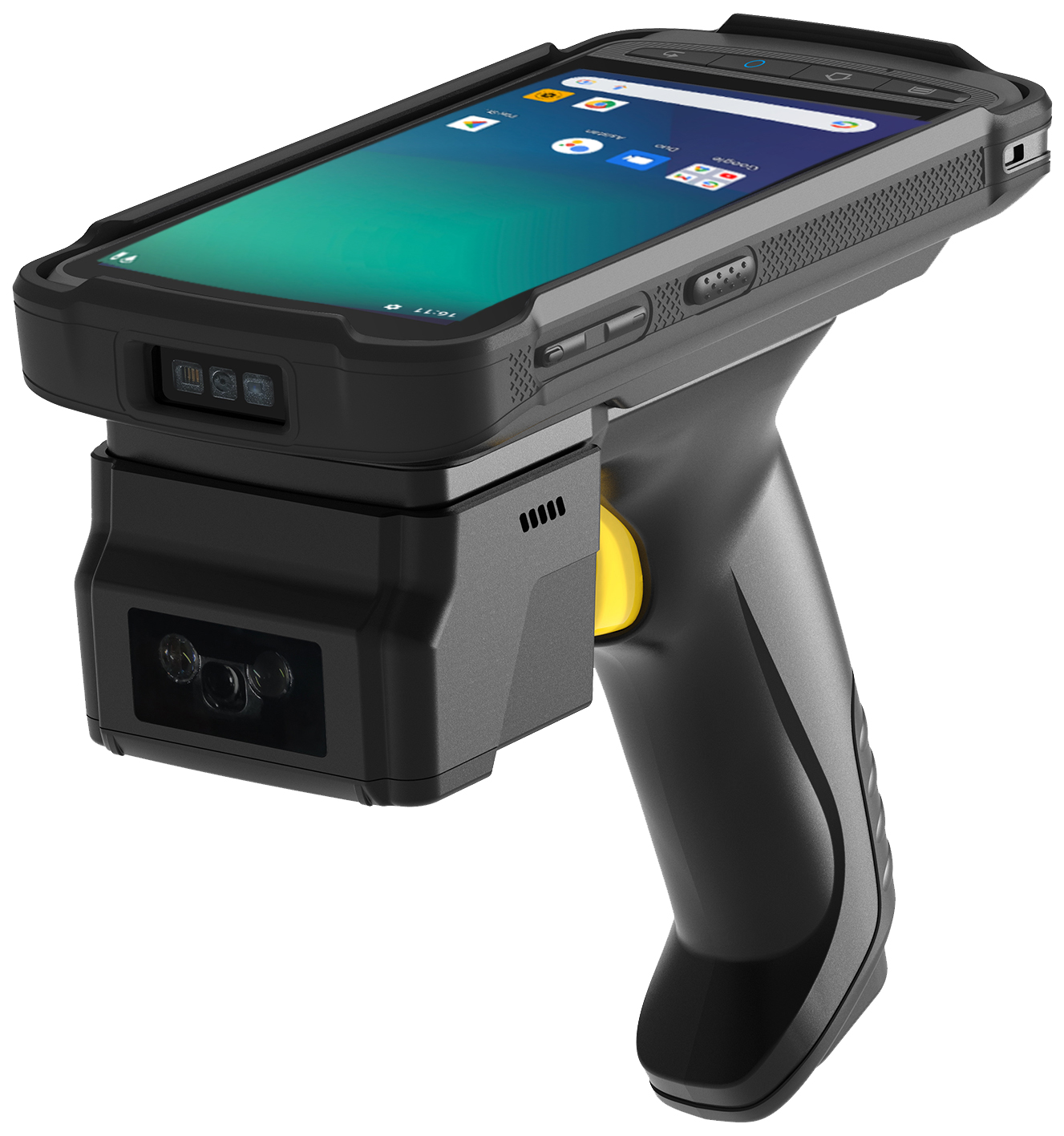

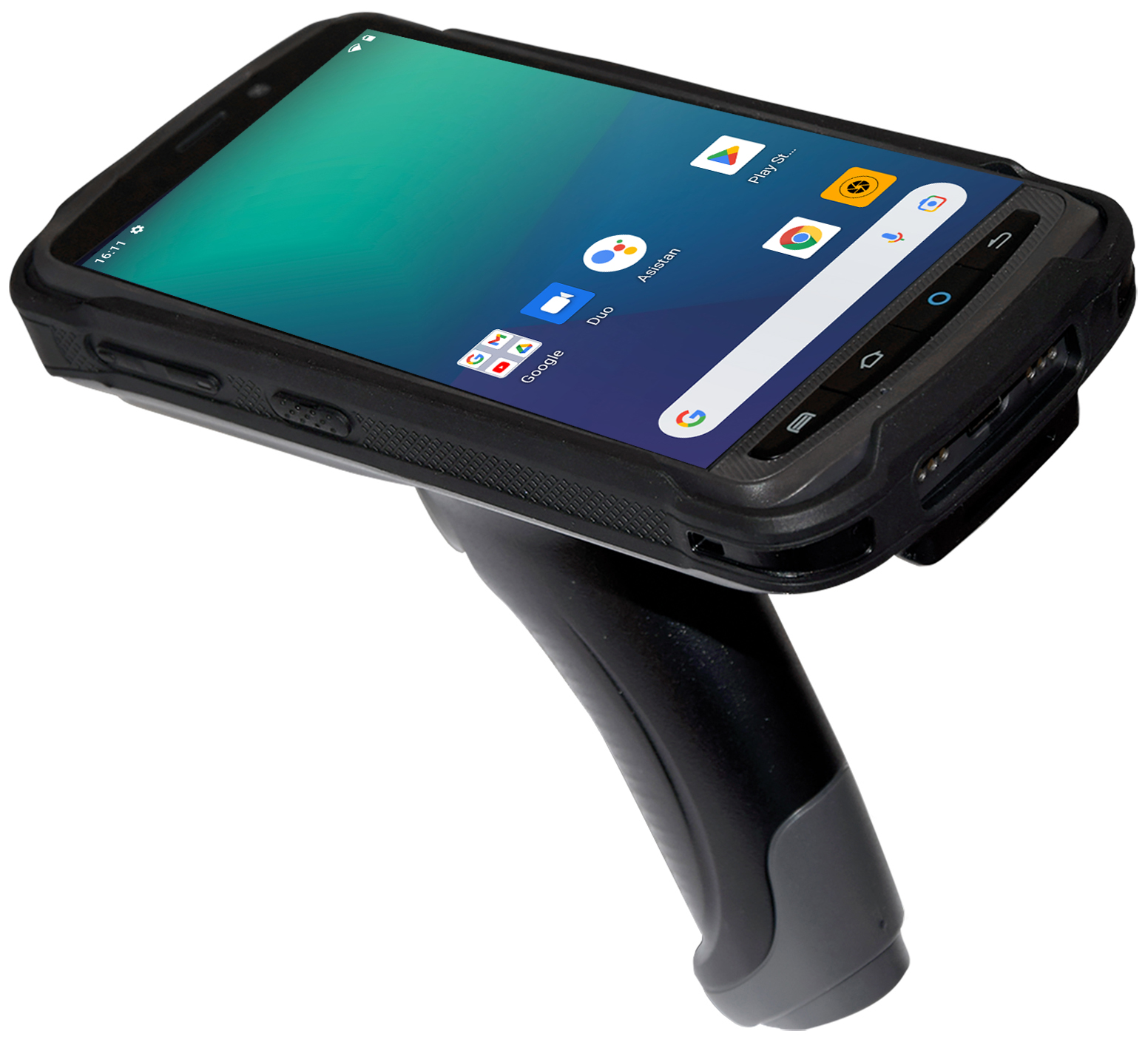

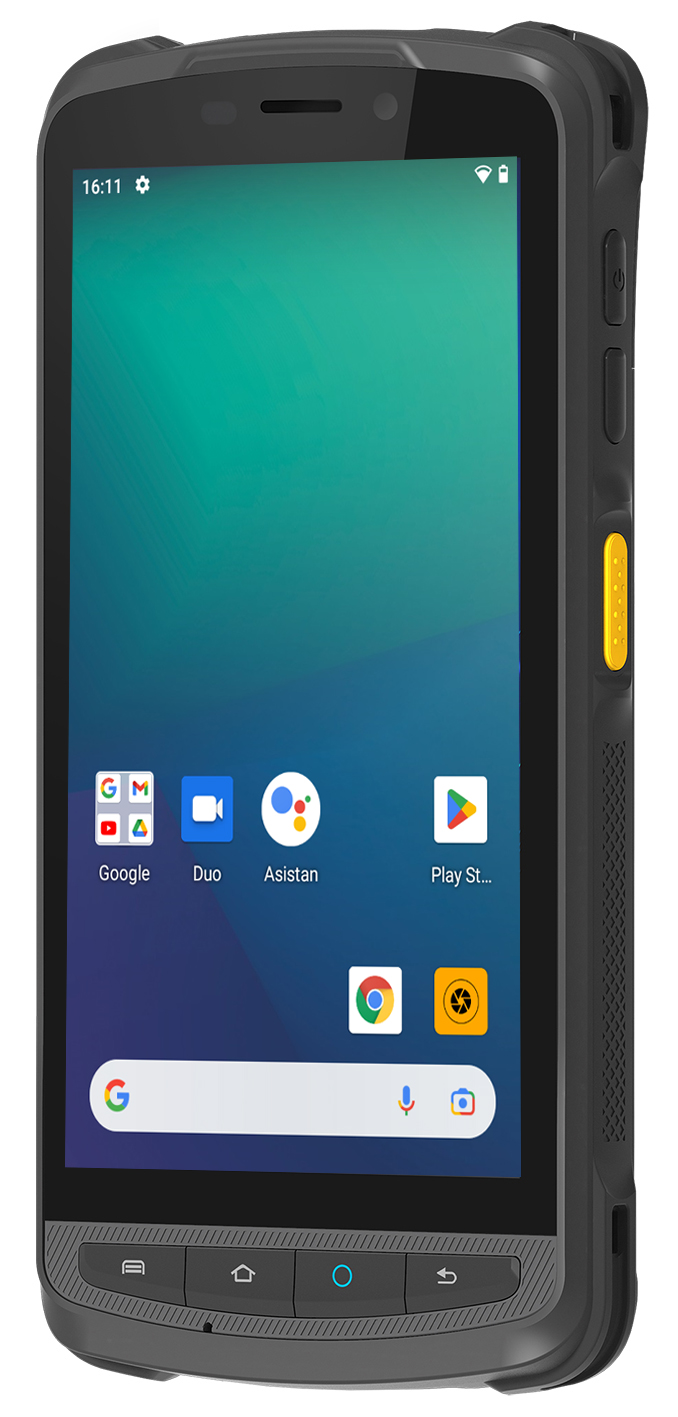

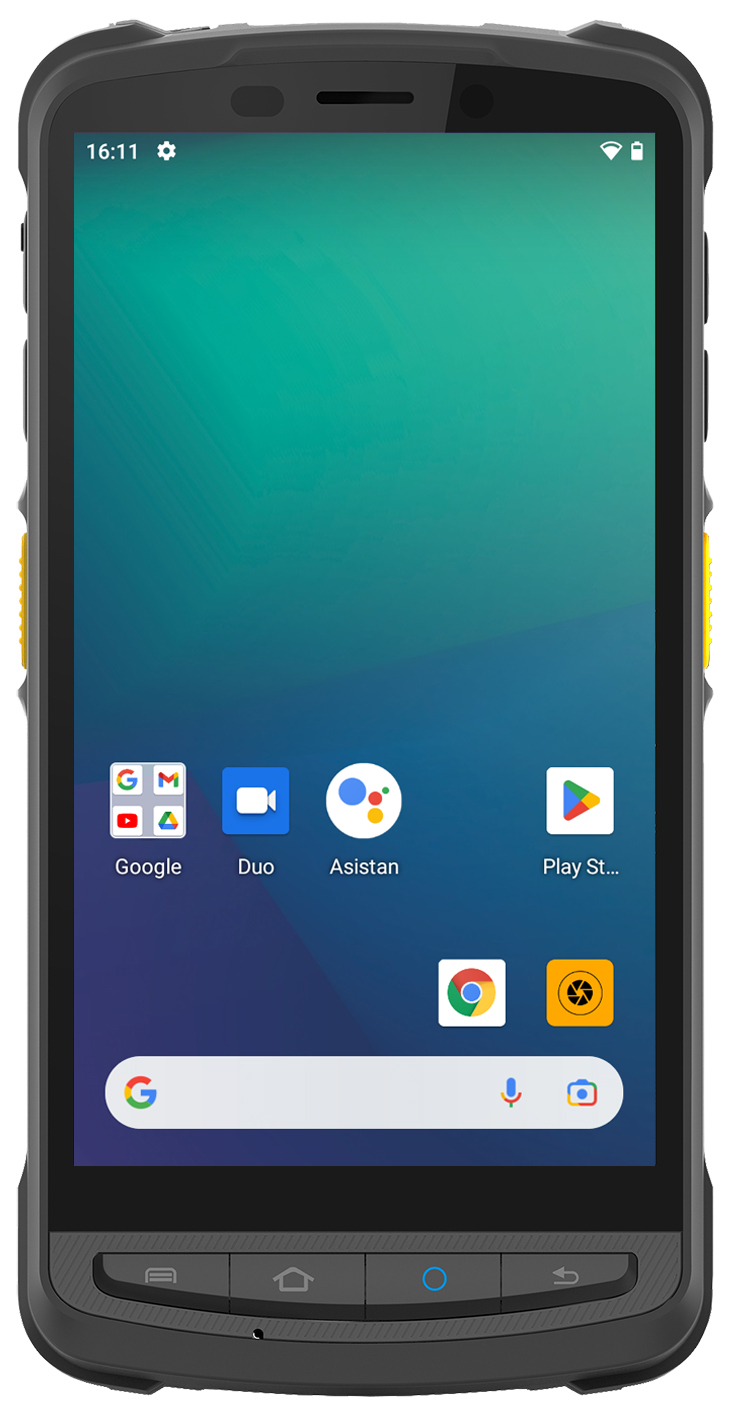

Newland MT9085
(Orca Pro II)
Android Handheld Terminal



● Android 11 (GMS+AER) Operation Systems
● Octa Core 2,0 Ghz Proccessor
● 6 GB RAM, 128 GB ROM
● 5 Inch Capacitive Touch Screen
● Wifi, Bluetooth, 4G (Data), NFC, GPS Technology
● 2D Barcode Scanner
● IP65 Protection Class

 Model  Operation System Wifi Bluetooth 4G GSM
 NLS-MT9085-W4-DO  Android 11 Yes Yes Yes None
System
 Micro Processor Octa Core 2,0 Ghz (64-bit) Proccessor
 Memory 6 GB Mobile DDR RAM, 128 GB Flash ROM
 Operation System Android 11 (GMS + AER)
(GMS = Google Mobile Service)
(AER = Android Enterprise Recommended)

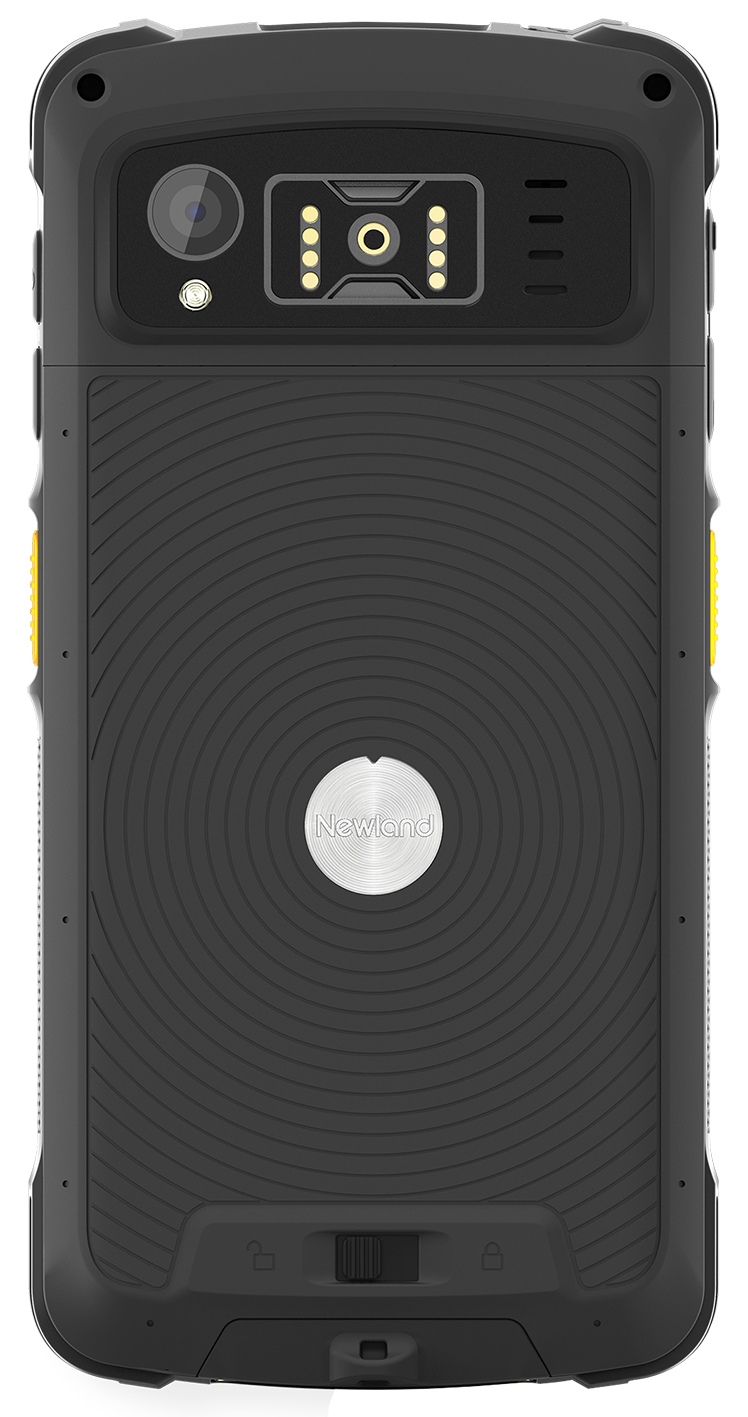

 Camera Rear  13 Megapixels, (Auto Focus, With LED Flashlight)
Front  5 Megapixels, (Auto Focus)
 Keypad Quantity  10 Pcs (Including Side Keys)
Left Volume Up, Volume Down, Left Scan Key
Right Right Scan Key, Power Button, Function Key
Front  Feature Button, Home Button, Scan Button, Back Button
 Notification Vibrator, Muli Color LED and Speaker
 Expansion MicroSD card slot (Max. 128 GB)
 Display
 Display Type HD
 Touch Screen Type Capacitive
 Dimension 5" (Inch)
 Resolutioin 1280 x 720 Pixel
 Features Full Touch, Gorilla® Glass
Barcode Scanner
 Optic System 2D Area Imager
 Supported Barcode Types 1D: Code 128, UCC/EAN-128, AIM 128, EAN-8, JAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 25, ITF-6, ITF-14, Deutsche 14, Deutsche 12, COOP 25, Matrix 25, Industrial 25, Standard 25, Code 39, Codabar/NW7, Code 93, Code 11, Plessey, MSI/Plessey, GS1 Databar
2D: QrCode PDF417, QRs Code, Data Matrix, Chinese Sensible Code etc.
 Communications
 USB USB Type-C
 Wifi Frequency 2.4 Ghz and 5 Ghz
Protocol IEEE 802.11 a/b/g/n/ac (802.11 d/h/i/k/r/v/w Compatible)
 Bluetooth Bluetooth 4.2 LE (Backward Compatible)
 WWAN 2G: 850/900/1800/1900 Mhz
3G: WCDMA (B1,B2,B5,B8), TD-SCDMA (B34,B39), CDMA 1X/EVDO (BC0)
4G: DD-LTE (B38,B39,B40,B41(100m)), FDD-LTE (B1,B2,B3,B5,B7,B8,B2,B28a&b)
SIM Slot: Mini SIM
 GSM None
 GPS Galileo, GLONASS, GPS (AGPS)

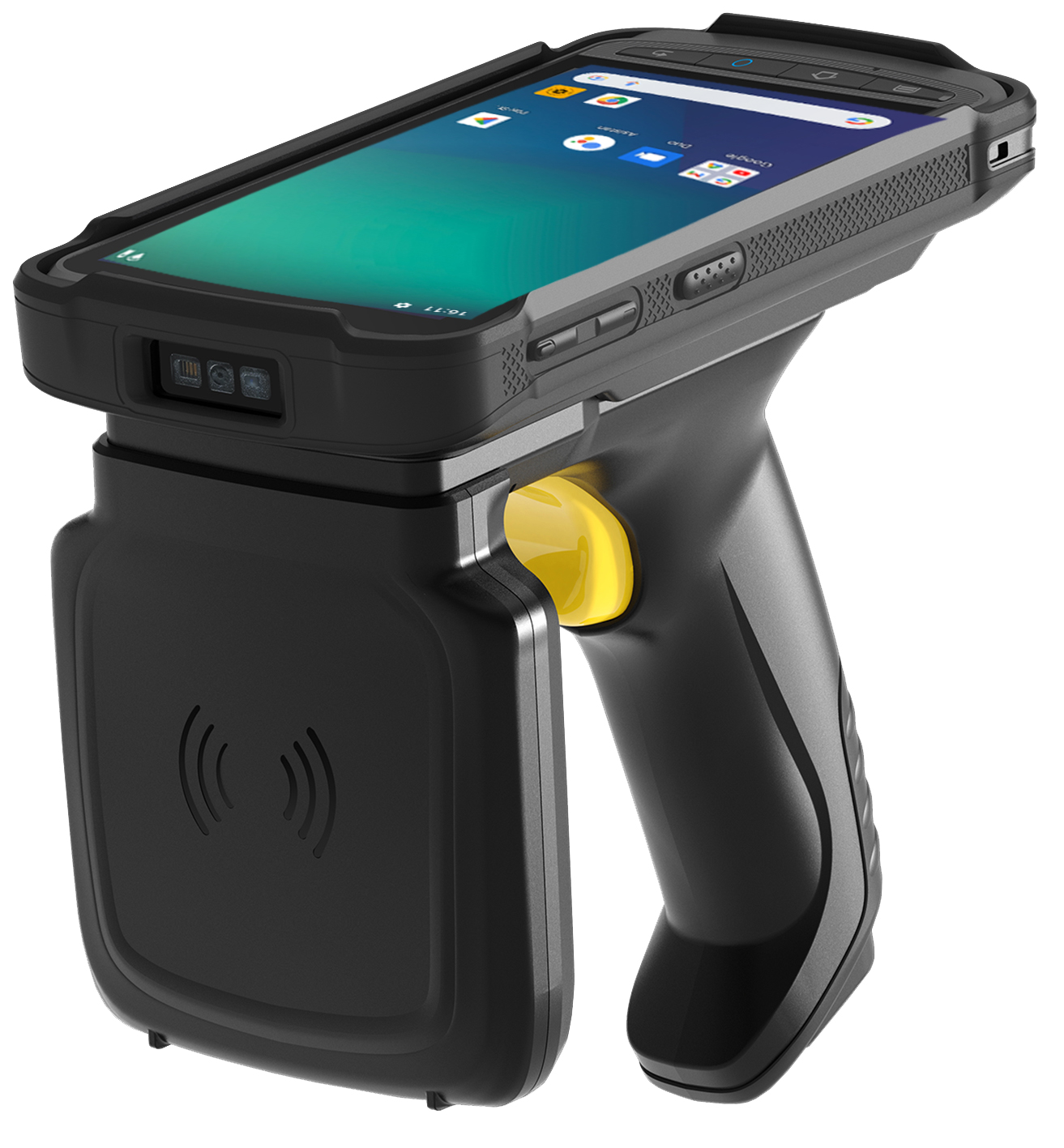

 RFID Frequency: 13,56 Mhz
Supported Tags: ISO14443A/B, MIFARE, Felica, NFC Forum Tags, ISO15693
 Electrical
 Power Source Input: AC100 ~ 240V, 50 ~ 60Hz
Output: 5V/2A
 Main Battery 3.8V, 4500 mAh
 Working time ~ 10 Hours
 Charge time ~ 5 Hours (Via AC Adapter)
 Physical
 Dimensions Width: 78 mm
Height: 155 mm
Thickness: 20 mm
Weight 265g (including battery)
 Enviromental
 Operating temperature -20°C to 55°C
 Storage temperature -40°C to 70°C
 Drop 1,5 meter
 Environmental Sealing IP65
  Certifications
 Certifications CE,RED,FCCID,RoHS,IEC6247,Laser Safety (Class II)
 Accessories

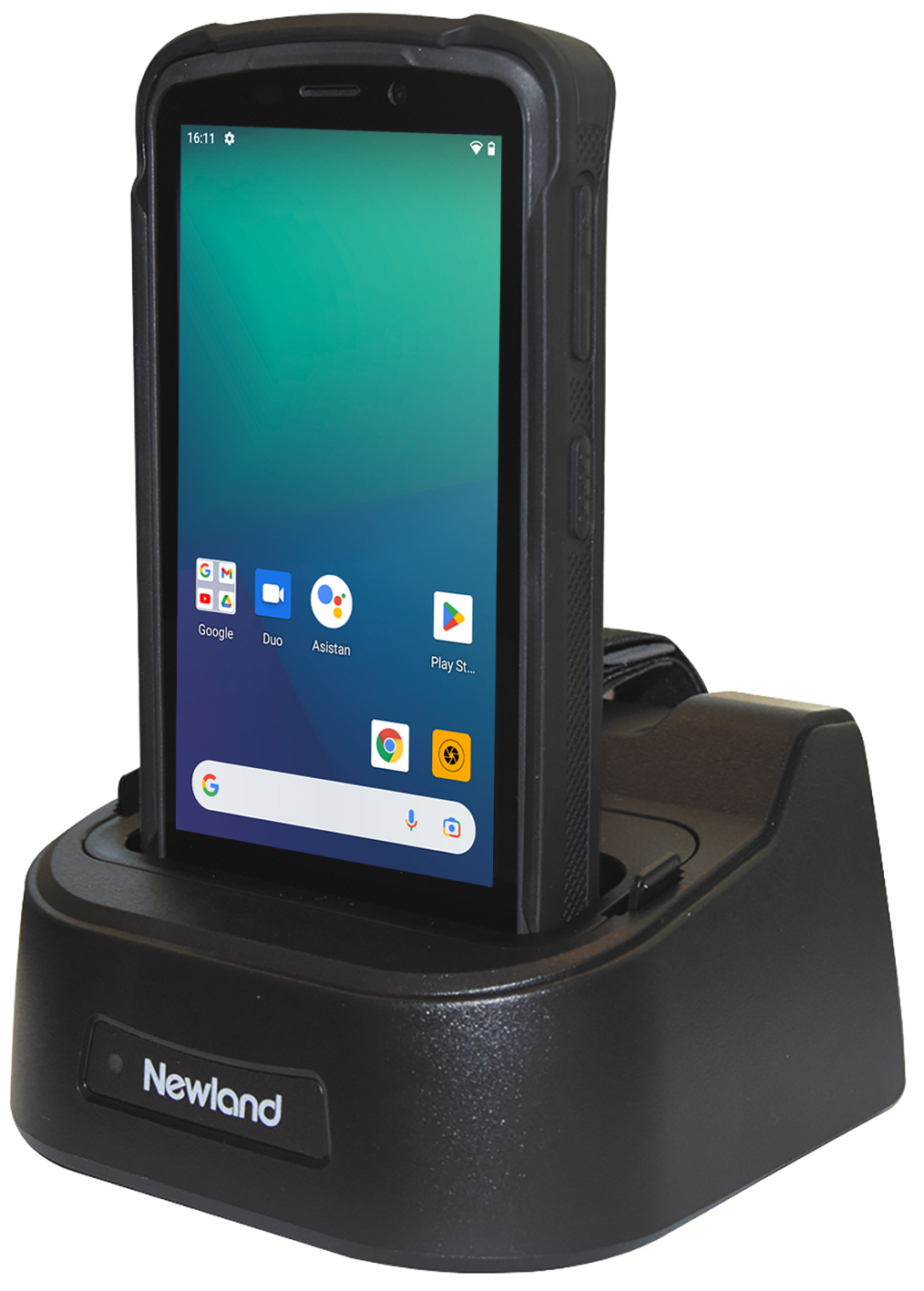

 Accessories Single Charging Cradle
USB Cable
Battery
AC adapter
Pistol Grip
Wrist Strap
Hand Strap
