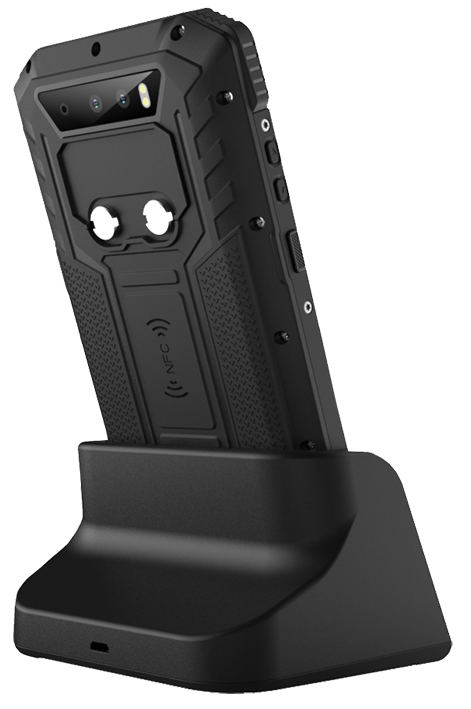

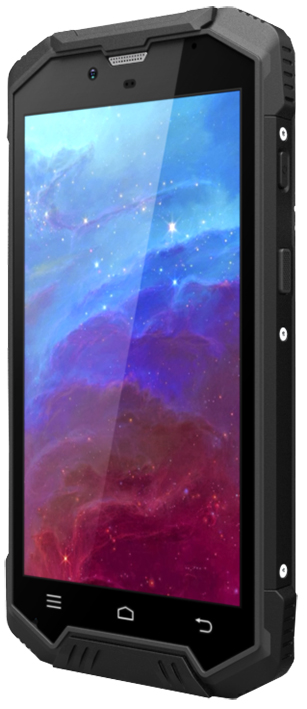

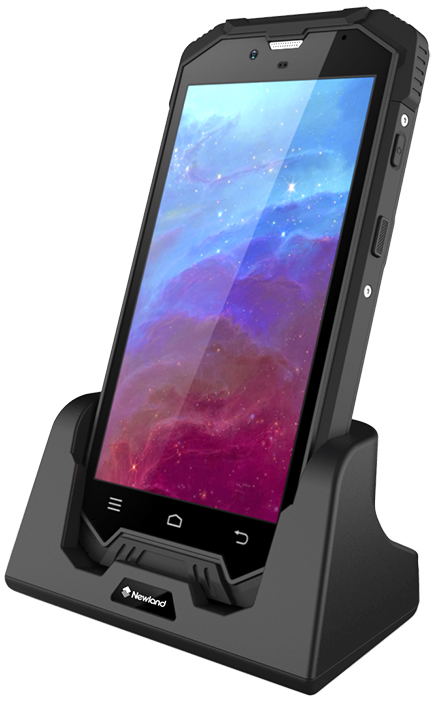

Newland N7000R
(Symphone)
Android Handheld Terminal



● Android 5.1 operation systems
● Quad Core 1,3 Ghz proccessor
● 3 GB RAM, 32 GB ROM
● 5 Inch Capacitive Touch Screen
● Wifi, Bluetooth, RFID, GPRS, GSM, GPS technology
● 1,5 mt Drop Resistance
● IP68 Protection Class
● 13 MP Autofocus Camera with LED Flash

System
 Micro Processor Quad Core 1,3 Ghz proccessor
 Memory 3 GB RAM, 32 GB Flash ROM
 Operation System Android 5.1 (64-bit)(Lollipop)
 Camera Rear : 13 megapixels, auto focus, with LED Flash Light
Front: 2 megapixels (Double Flash Light)
 Audio 3.5mm Earphone
 Notification Vibrator, Muli Color LED and Speaker
 Expansion MicroSD card slot (Max. 32 GB)
 Display
 Display Type HD
 Touch Screen Type Capacitive
 Dimension 5" (Inch)
 Resolutioin 1280 x 720 Pixel
 Features Full Touch, Gorilla® Glass
 Barcode Scanner
 Type 2D Area Imager
 Supported Barcode Types 1D: Code39, Codabar, Code128, EAN8, EAN13, UPC-A, UPC-E, Interleaved 2 of 5 etc.
2D: QrCode, PDF417, DataMatrix, MaxiCode
 Communications
 USB Micro USB (OTG)
 Wifi Frequency 2.4 Ghz and 5 Ghz
Protocol IEEE 802.11 a/b/g/n
 PAN Bluetooth 4.0
 WWAN GSM (band 3/8), WCDMA (band 1/8), CDMAIX, EVDO (band BC0), TD-SCDMA (band 34/39), LTE FDD (band 1/3/7/17), LTE TDD (band 38/39/40/41)
SIM Slot: Dual Nano SIM
 NFC (RFID) Frequency: 13,56 Mhz
Distance : ≤5 cm
 GPS GPS/BeiDou system
 Electrical
 Power Supply Input: 5V, 2A
 Main Battery 5200 mAh
 Physical
 Dimensions Width: 73.9 mm
Height: 146.7 mm
Thickness: 9.3 mm
Weight 280g (including battery)
 Enviromental
 Operating temperature -25°C to 60°C
 Storage temperature -40°C to 70°C
 Drop 1,5 meter
 Environmental Sealing IP68
 Accessories
 Accessories AC adapter
USB Cable
