Datalogic Memor11
Android Handheld Terminal



● Android 11 Operation Systems
● Oca Core 2 Ghz Proccessor
● 4 GB RAM, 32 GB Flash ROM
● 5 Inch Color Touch Screen
● Wifi and Bluetooth Communication Technology
● 1,5 mt (5 ft) Drop Resistance
● IP65 Protection Class
"Green Spot" Light For Good Read Feedback

System
 Micro Processor Octa Core 2 Ghz Proccessor
 Memory 3 GB RAM, 32 GB Flash ROM
 Operation System Android 11 (R) (Upgradable Ver: 14)
 Expansions Slots Micro SD Card Slot: Compatible with Micro SD-HC cards, up to 64 GB; User-accessible
 Real-Time Clock Time and date stamping under software control
 Camera Resolution: 13 MP; Illumination: LED flash; Lens: Auto focus
 Keypad Physical Keys: 2 side scan keys; Power On/Off; Volume Up/ Down; 3 user programmable Android™ keys
Sensors
 Vibration Software programmable for duration and intensity
 Magnetometer Senses orientation (eCompass)
 Accelerometer 3-Axis accelerometer to detect orientation
 *Gyroscope Senses angular velocity *(Wi-Fi/Cellular model only)
 Ambient Light Auto adjusts display backlight
 Proximity Auto deactivates display when close to face
 Display
 Dimension 5" (Inch)
 Resolutioin 1280 x 720 pixel
 Display Type HD
 Features Dragontrail hardened glass
 Touch Screen 5 points multi-touch capacitive panel
 Communication
 USB USB (Type-C) High Speed USB 2.0 OTG
 Wifi IEEE 802.11 a/b/g/n/ac and 802.11 d/h/i/k/r/v/w
Frequency range: Country dependent, typically 2.4 GHz and 5 GHz bands
Wi-Fi alliance Certification; WPA3 (Personal and Enterprise)
 WPAN Class 2, Bluetooth® V5.0, Low Energy (BLE) Support
 NFC Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
 GPS Integrated Assisted-GPS (A-GPS) Supported Types: GPS, GLONASS, BeiDou
 Electrical
 Battery Type Rechargable Li-Ion Battery
Capacity 3.8V 4100 mAH (15.6 Watt-Hours)
 Wireless Charging 10 Watt fast charging
Physical
 Dimension Width : 78 mm
Length : 155 mm
Thickness: 18.7 mm
 Weight 285 gr
 Enviromental
 Operating temperature -20°C to 50°C
 Storage temperature -30°C to 70°C
 Drop test to Concrete Withstands drops from 1.5 m / 5.0 ft onto concrete (with rubber boot); Withstands drops from 1.2 m / 4.0 ft onto concrete (without rubber boot). Tested onto steel/ concrete according to IEC 60068-2-32 Method 2 and MIL STD 810H Transit drop test.
 Tumbles Withstands 1,000 hits from 0.5 m / 1.6 ft and 250 hits from 1.0 m / 3.2 ft per IEC 60068-2-32 with rubber boot; Withstands 600 hits from 0.5 m / 1.6 ft per IEC 60068-2- 32 without rubber boot
 Sealing IP65
 Chemical Resistance Chemical cleanser and industrial oil resistant
 Healthcare Cleanable Isopropyl Alcohol, Hydrogen Peroxide, Clorox® Bleach; applicable for both the device and docks
 Barcode Scanner
 Model Halogen™ DE2102-HP
 Features 2D Ultra slim area imager
 Supported Barcode Types 1D / 2D
 Resolution 1280 x 800 pixels (Megapixel)
 Good Read Feedback Datalogic’s ‘Green Spot’
 Resolution 1D : 0.0635 mm (2.5 mil)
2D : 0.762 m (6.6 Mil) (PDF417)
2D : 0.152 mm (7.5 mil) (Datamatrix)
 Decoding Capability
 1D / Linear Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
 2D Codes Aztec Code, Data Matrix, HanXin Code, MaxiCode, MicroQR Code, QR Code, Dotcode
 Postal Codes Australian Post, Japan Post, KIX Code, PLANET,POSTNET, Royal Mail Code (RM4SCC), USPS Intelligent Mail
 Stacked Codes Micro-PDF417, PDF417, GS1 Composite, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, OCR (ID Cards, Passport)
 Digital Watermark Codes Digimarc® Barcode
 Safety & Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use
 Enviromental Compliance Complies to EU RoHS
 Software
 Applications Datalogic’s SoftSpot technology for configurable soft triggers
 Provisioning QR Code enrollment
 Configuration and maintenance Scan2Deploy Studio, DXU
SOTI MobiControl (optional)
 Develepment Java, Cordova and Xamarin SDK available
 MDM SOTI MobiControl, VMWare AirWatch, Ivanti Avalanche, 42Gears SureMDM
 Accessories

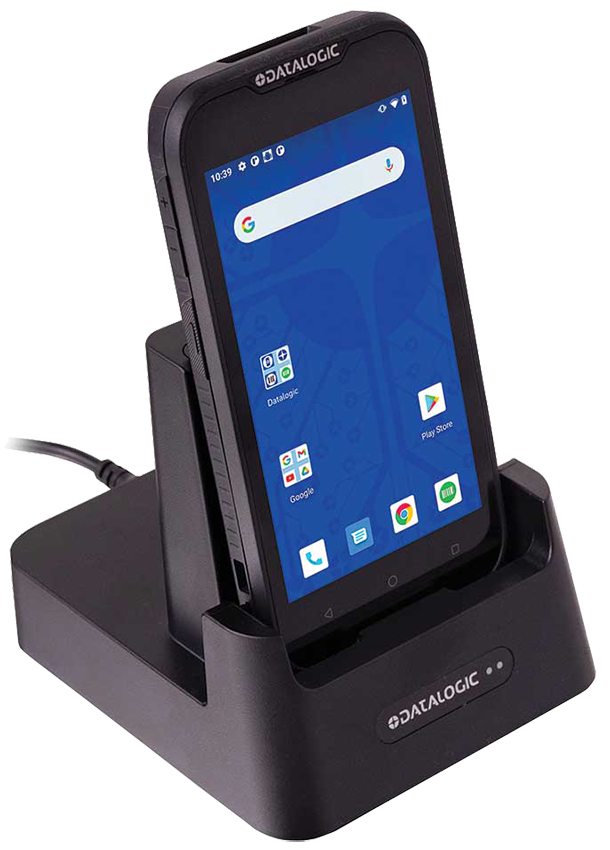

 Optional Items Single Slot Dock
Belt Holster
Rubber Boot
