● Android 4.4 (Kit Kat) operation systems
● TI OMAP 4430 Dual Core 1 Ghz proccessor
● 1 GB DDR-RAM, 8 GB eMMC ROM
● 5 Inch (1280 x 720 pixel) TFT, IPS LCD Display
● Wifi, Bluetooth, RFID, GPRS (3,5G), GSM, GPS technology
● 1,8 mt (6 ft) drop resistance
● IP67 Protection Class
● 5MP CMOS Sensor Autofocus Camera with Flash
| System | ||
| Micro Processor | 1TI OMAP 4430 Dual Core 1 Ghz proccessor | |
| Memory | 1 GB Mobile DDR RAM, 8 GB eMMC Flash ROM | |
| Operation System | Android 4.4 (Kit Kat) | |
| Embedded Sensors | Accelerometer, Gyroscope, Ambient light, Proximity | |
| Real Time Clock | Time and date stamping under software control | |
| Expansion Slots | Micro-SD card slot: Compatible with Micro SD-HC cards, Data transfer up to 48 Mbps, User-accessible | |
| Camera | Resolution | 5 megapixel |
| Illumination | User controllable LED flash | |
| Lens | Auto focus | |
| Display | ||
| Display Type | TFT HD, LED Backlight | |
| Dimension | 5" (Inch) | |
| Resolutioin | 1280 x 720 Pixel | |
| Touch Panel | 5 points multitouch capacitive panel with Corning Gorilla Glass 3, Glove Support | |
| Keypad | ||
| Physical Keys | Home/Scan Key and 2 side scan keys, Power On/Off, Volume Up/Down | |
| User programmable key | 3 user programmable virtual keys out of the display area | |
| Physical | ||
| Dimension | Length: 157 mm, Width: 80, Thickness: 19 mm | |
| Weight | With Standard Battery: 350 g, With High Capacity Standard Battery: 400 g | |
| Audio | Standard 3.5 mm audio jack, suitable for headsets or mobile POS attachables | |
| Interfaces | ||
| Interfaces | Micro-USB connector | High Speed USB 2.0 Hostand Client |
| Ethernet | Via single dock, up to 1 Gbps | |
| Barcode Scanner | ||
| Type | 2D Area Imager | |
| Supported Barcode Types | 1D And 2D | |
| Resolution | 752 x 480 pixels (WVGA) | |
| Goog Read Feedback | Datalogic Green Spot | |
| Depth of field | 8,5 cm ~ 50 cm | |
| Illumination | White LEDs | |
| Aiming | 650 nm VLD | |
| Field of View | 40°H x 26°V | |
| Print Contrast (Minimum) | %25 | |
| Minimum Element Width | 1D | 0.0762 mm (3 Mil) |
| 0.127 mm (5 Mil) | ||
| DataMatrix | 0.195 mm (7.5 Mil) | |
| Decoding Capability | ||
| 1D / Linear | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes | |
| 2D Codes | Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail | |
| Postal Codes | Australian Post, Japan Post, KIX Code, PLANET,POSTNET, Royal Mail Code (RM4SCC) | |
| Stacked Codes | Micro-PDF417, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional | |
| Regulatory Approvals | ||
| Regulatory Approvals | CE, NCC, FCC, BSMI, VCCI, CCC and RoHS compliance | |
| Wireless Communications | ||
| WLAN | 802.11 a/b/g/n Cisco CCX v4 certified (Supporting MIMO Technology) | |
| PAN | Bluetooth 4.0 ((IEEE 802.15) | |
| WWAN | 3G/4G (HSPA+): 850/900/1800/1900/2100 MHz (Voice & data communication) | |
| GPS | Integrated Assisted-GPS (A-GPS) with u-blox technology; Supported Types: GPS, GLONASS, Beidou; Time-To-First-Fix: Cold starts 26s; Aided starts 2s; Reacquisition 1.5s | |
| NFC | Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica | |
| Electrical | ||
| Battery | Standard Battery: 3,8V 3200 mAh Li-Ion Battery | |
| Extended Battery: 3,8V 6400 mAh Li-Ion Battery | ||
| Working time | With Standard Battery: ~ 10 Hours | |
| With Extended Battery: ~ 20 Hours | ||
| Enviromental | ||
| Operating temperature | -20°C to 50°C | |
| Storage temperature | -30°C to 70°C | |
| Drop test to Concrete | Without Rubber Boot: 1,2 meter | |
| With Rubber Boot: 1,8 meter | ||
| Environmental Sealing | IP67 | |
| Safety & Regulatory | ||
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use | |
| Enviromental Compliance | Complies to EU RoHS | |
| 2D Imager | Aiming System (laser): EN/IEC 60825-1:2007 (Class 2); 21 CFR 1040 (CDRH) (Class 2) Illumination System (white LEDs): IEC 62471 Exempt risk group | |
| Software | ||
| Applications | Datalogic’s SoftSpot technology for configurable soft triggers, Pre-licensed device and browser lockdown powered by 42Gears, Enterprise class PTT offered by Zello | |
| Configuration and maintenance | Datalogic DXU for device configuration and firmware upgrade from PC, NFC Tap to Configure,NFC Tap to Pair (for other Bluetooth® devices) | |
| Develepment | Datalogic SDK™ with Android | |
| Accessories | ||

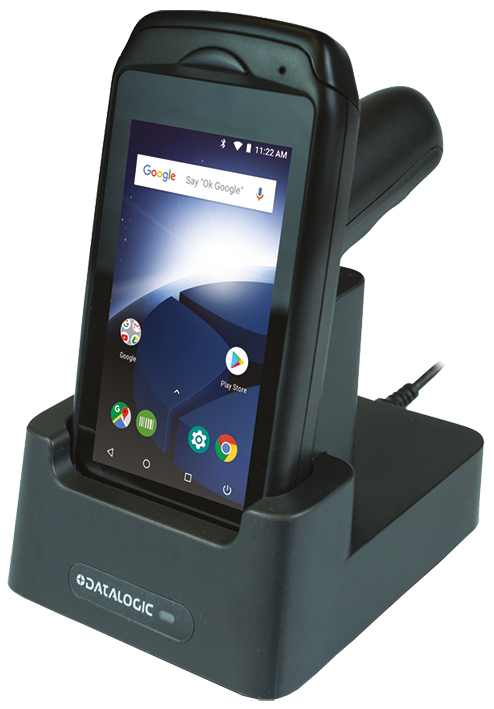

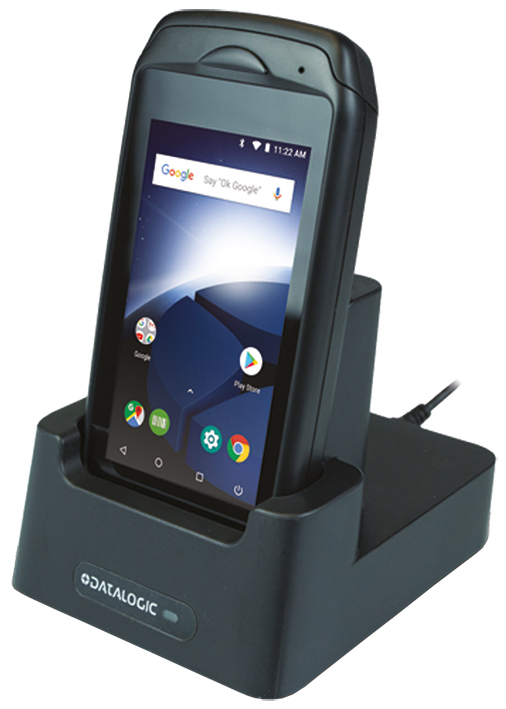

| Accessories | Single Slot Dock USB | |
| Single Slot Ethernet | ||
| 4-Slot Battery Charger | ||

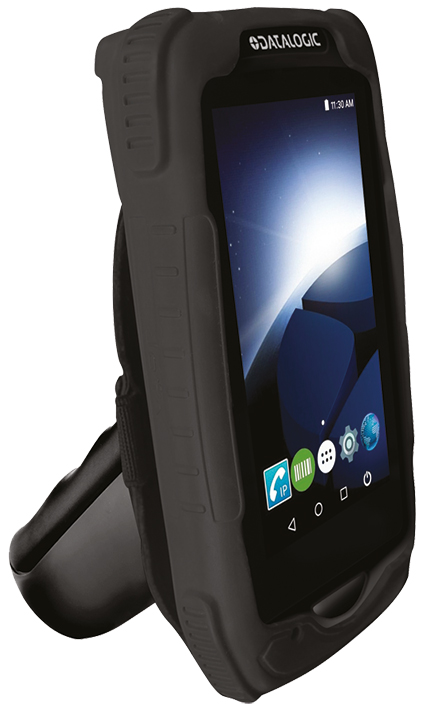

| Rubber Boot | ||
| Hand Strap | ||
| Bluetooth Headset | ||
