Newland MT9055
(Orca III)
Android Handheld Terminal
(Wifi Only)



● Android 11 Operation Systems
● GMS (Google Mobile Service) Support
● Octa Core 2.0 Ghz Proccessor
● 4 GB RAM, 64 GB ROM
● 5 Inch Capacitive Touch Screen
● Wifi, Bluetooth and GPS Technology
● 2D Barcode Scanner
● IP65 Protection Class
Note: This Model Does Not Have GSM (Speaking) Feature

 Model  Operation System Wifi Bluetooth 3G / 4G
 NLS-MT9055-WOX  Android 11 Yes Yes None
System
 Micro Processor Quad Core 1,5 Ghz (64-bit) Proccessor
 Memory 2 GB RAM, 16 GB ROM
 Operation System Android 11
(GMS=Google Mobile Service)
 Camera 8 megapixels, auto focus, with LED flashlight
 Keypad Quantity 10 Pcs (Including Side Keys)
Left Volume Up, Volume Down, Left Scan Key
Right Right Scan Key, Power Button, Function Key
Front  Feature Button, Home Button, Scan Button, Back Button
 Notification Vibrator, Muli Color LED and Speaker
 Expansion MicroSD card slot (Max. 128 GB)
 Display
 Display Type HD
 Touch Screen Type Capacitive, Full Touch, Gorilla® Glass
 Dimension 5" (Inch)
 Resolutioin 1280 x 720 Pixel
Barcode Scanner
 Optic System 2D Area Imager
 Image Sensor 1280x800 CMOS
 Illumination White LED (625±10nm)
 Aiming Laser diode
 Scan Modes Trigger Mode, Sense Mode
 Scan Rate 60 frames per second
 Supported Barcode Types 1D: All major 1D symbologies
2D: All major 2D symbologies
 Communications
 USB USB Type-C
 Wifi Frequency 2.4 Ghz and 5 Ghz
Protocol IEEE 802.11 a/b/g/n/ac
 Bluetooth Bluetooth 5.0 LE (Backward Compatible)
 WWAN None
 GSM None
 GPS GPS (AGPS), GLONASS
 RFID Frequency: 13,56 Mhz
Supported Tags: ISO14443A/B, MIFARE, Felica, NFC Forum Tags, ISO15693
 Electrical
 Power Source Input: AC100 ~ 240V, 50 ~ 60Hz
Output: 5V/2A
 Main Battery 3.8V, 4500 mAh
 Working time ~ 10 Hours
 Charge time ~ 5 Hours (Via AC Adapter)
 Physical
 Dimensions Width: 78.5 mm
Height: 155 mm
Thickness: 20 mm
Weight 270g (including battery)
 Enviromental
 Operating temperature -20°C to 55°C
 Storage temperature -40°C to 70°C
 Humidity 5% to 95% (non-condensing)
 Electro Static Discharge (ESD) ±15 kV (air discharge), ±8 kV (direct discharge)
 Drop 1,5 meter
 Environmental Sealing IP65
  Certifications
 Certifications CE,RED,FCCID,RoHS,IEC6247,Laser Safety (Class II)
 Accessories
 Standart Battery, AC adapter, USB cable, Rubber Boot

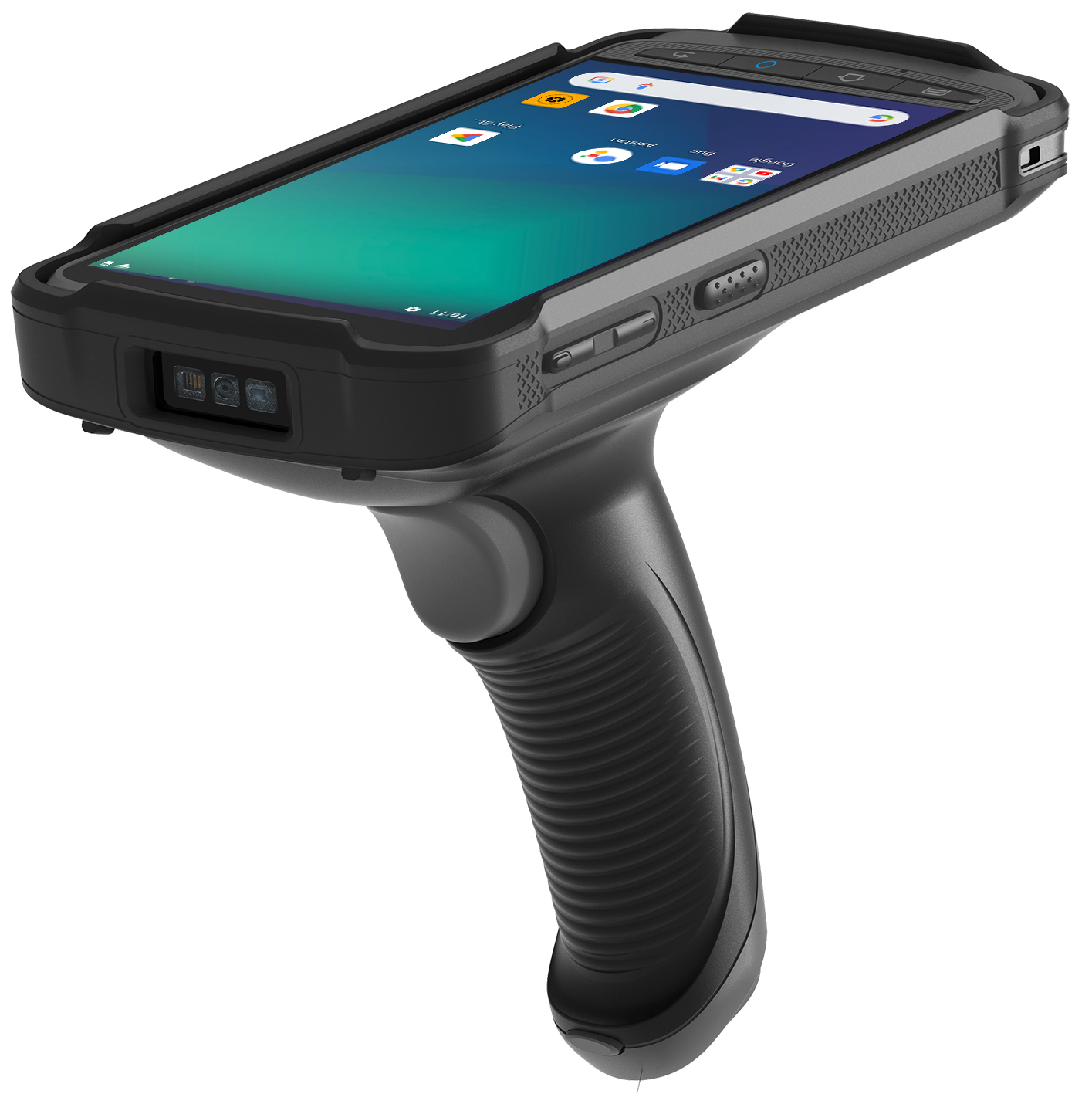

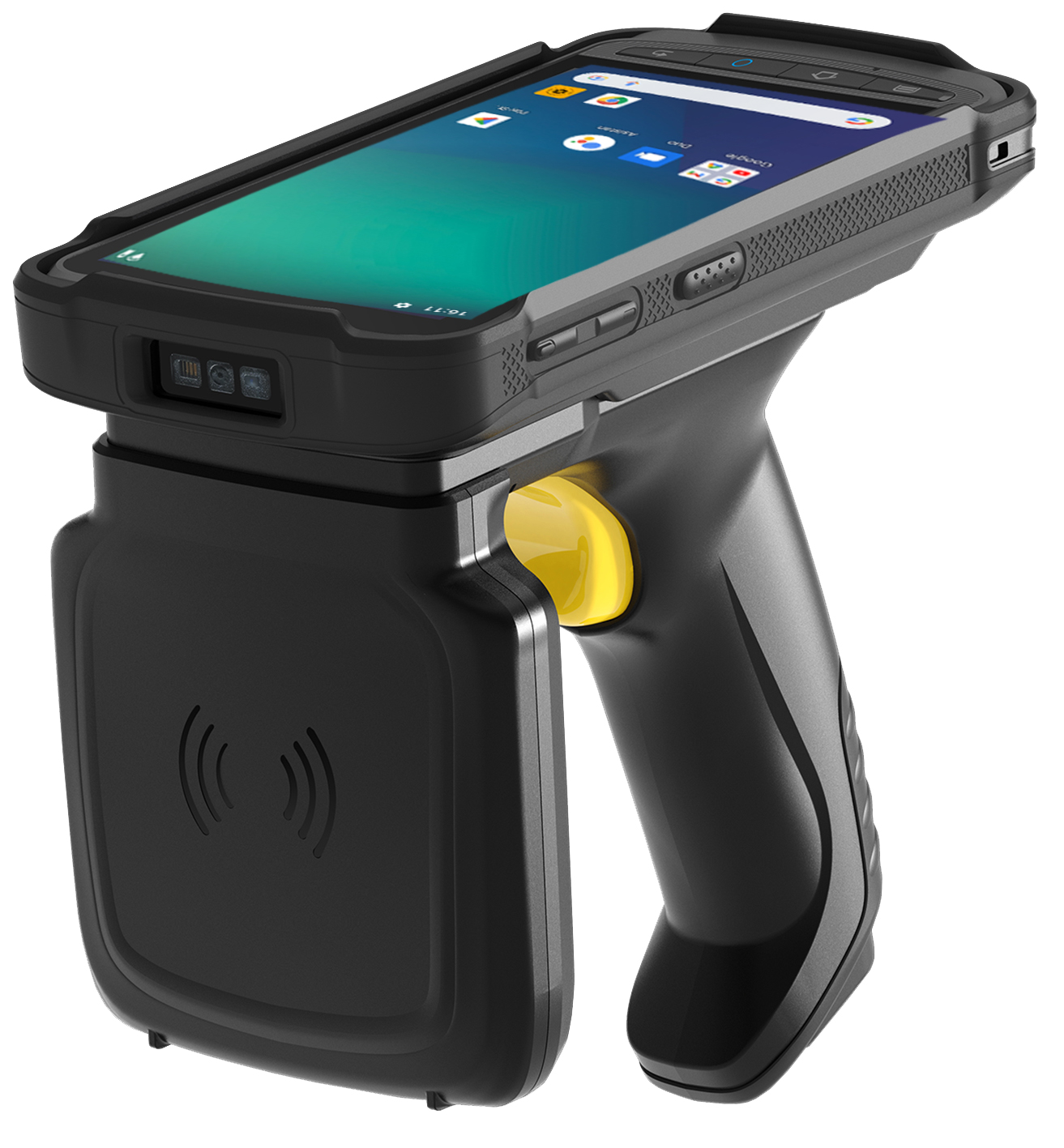

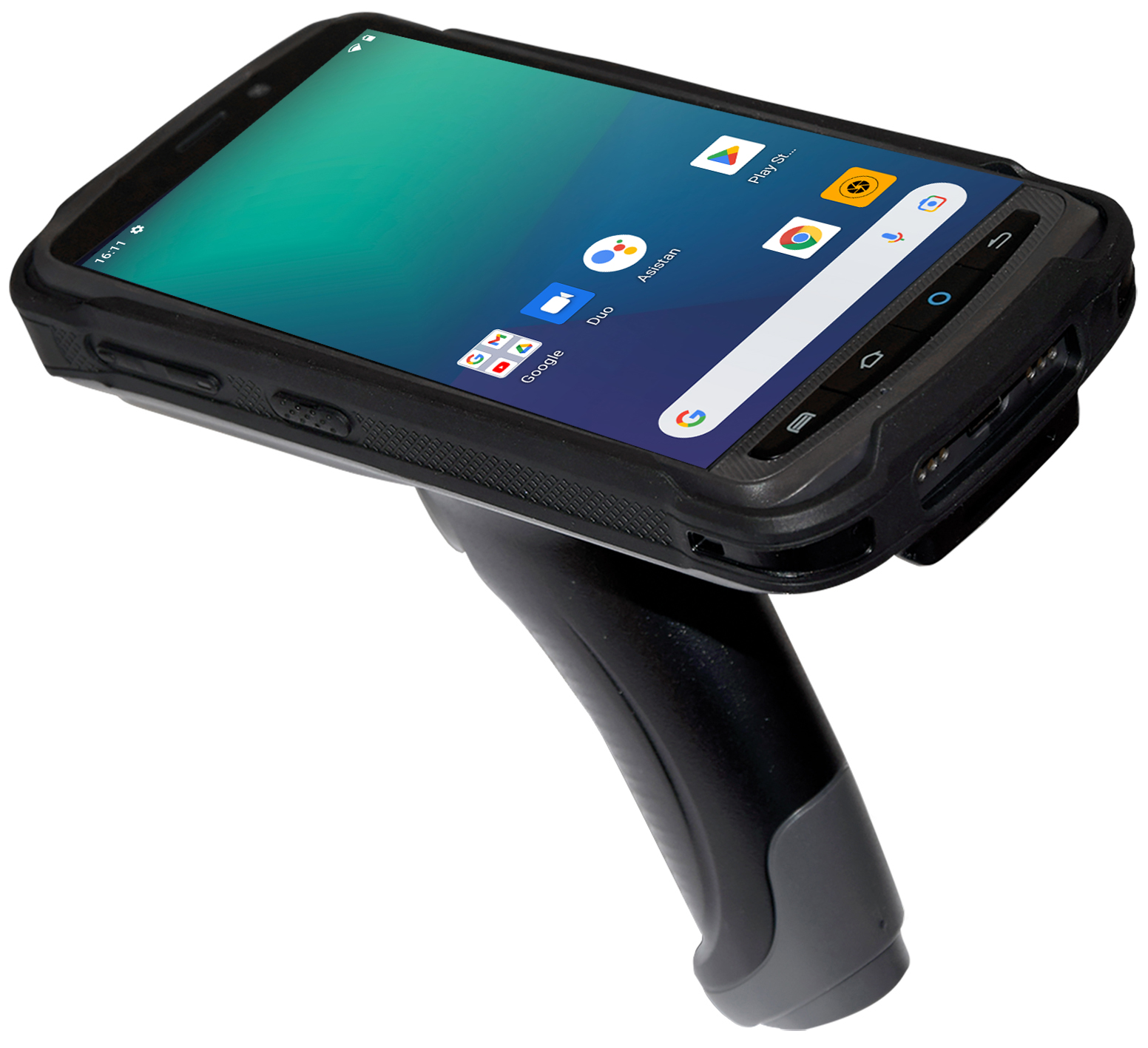

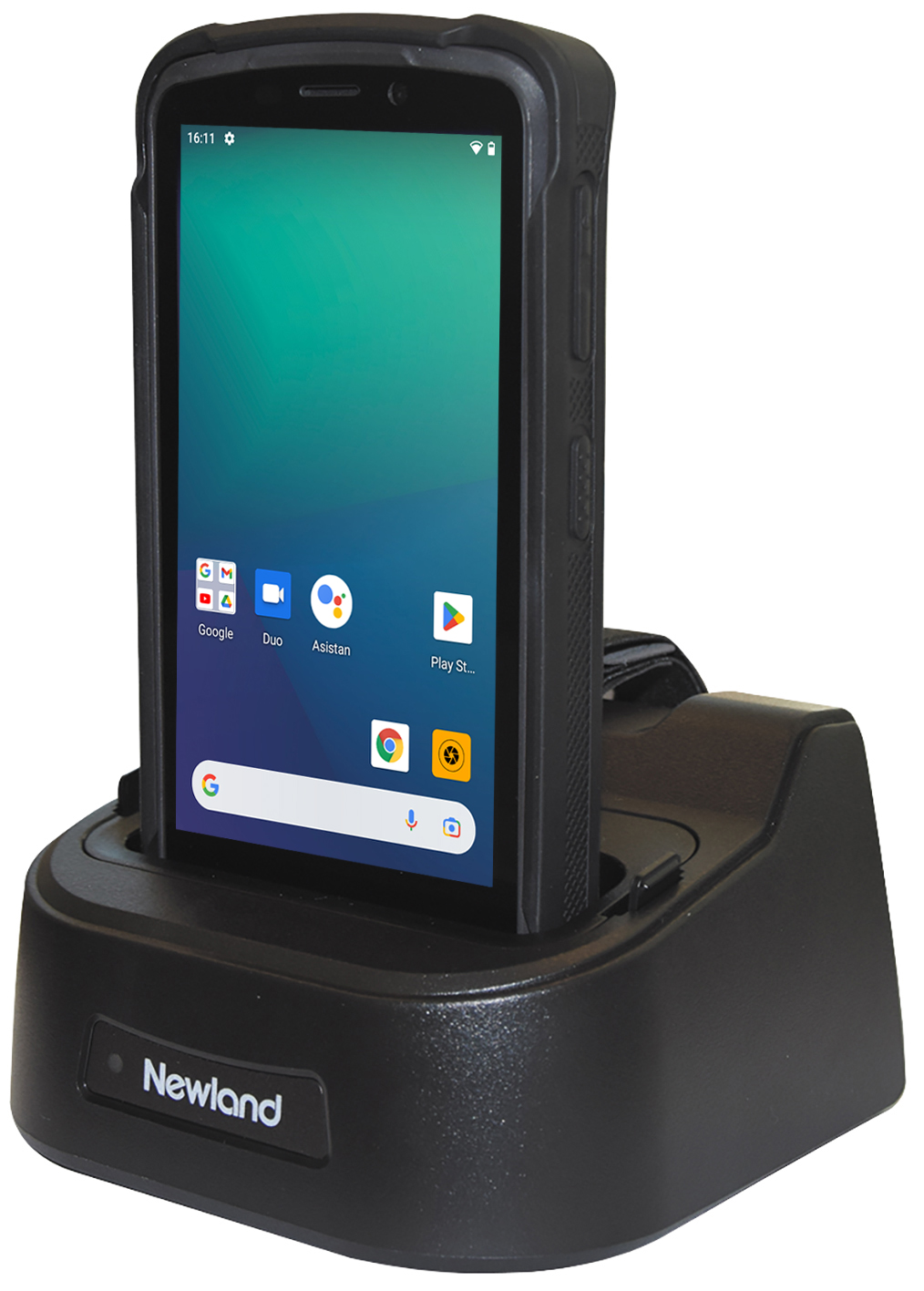

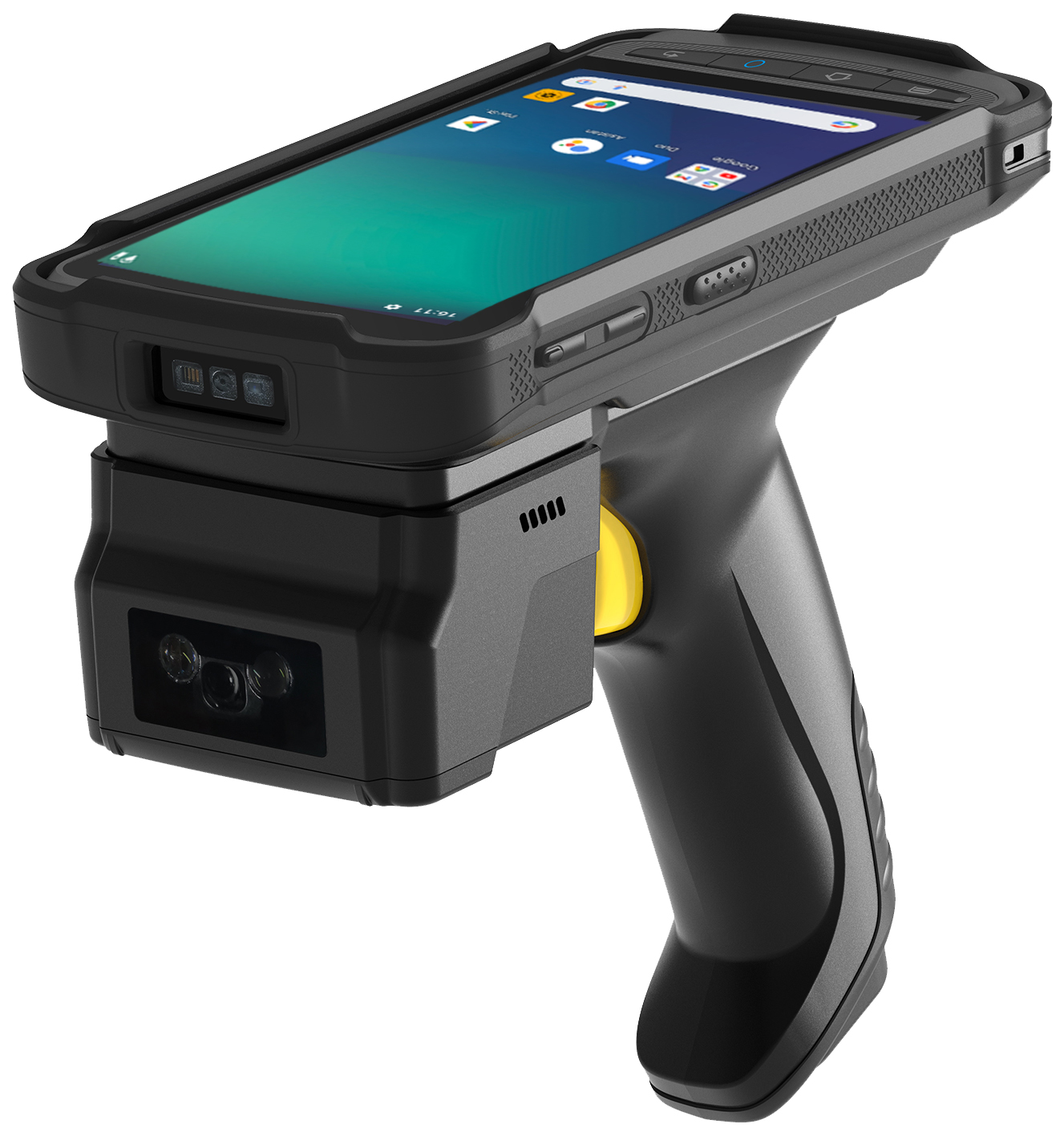

 Optional Charging Cradle, Pistol Grip, Long Range Pistol Grip, UHF Pistol Grip, Wrist Strap, Hand Strap, 3 Slot Cradle, 4 Slot Battery Charger, High Capacity Battery
