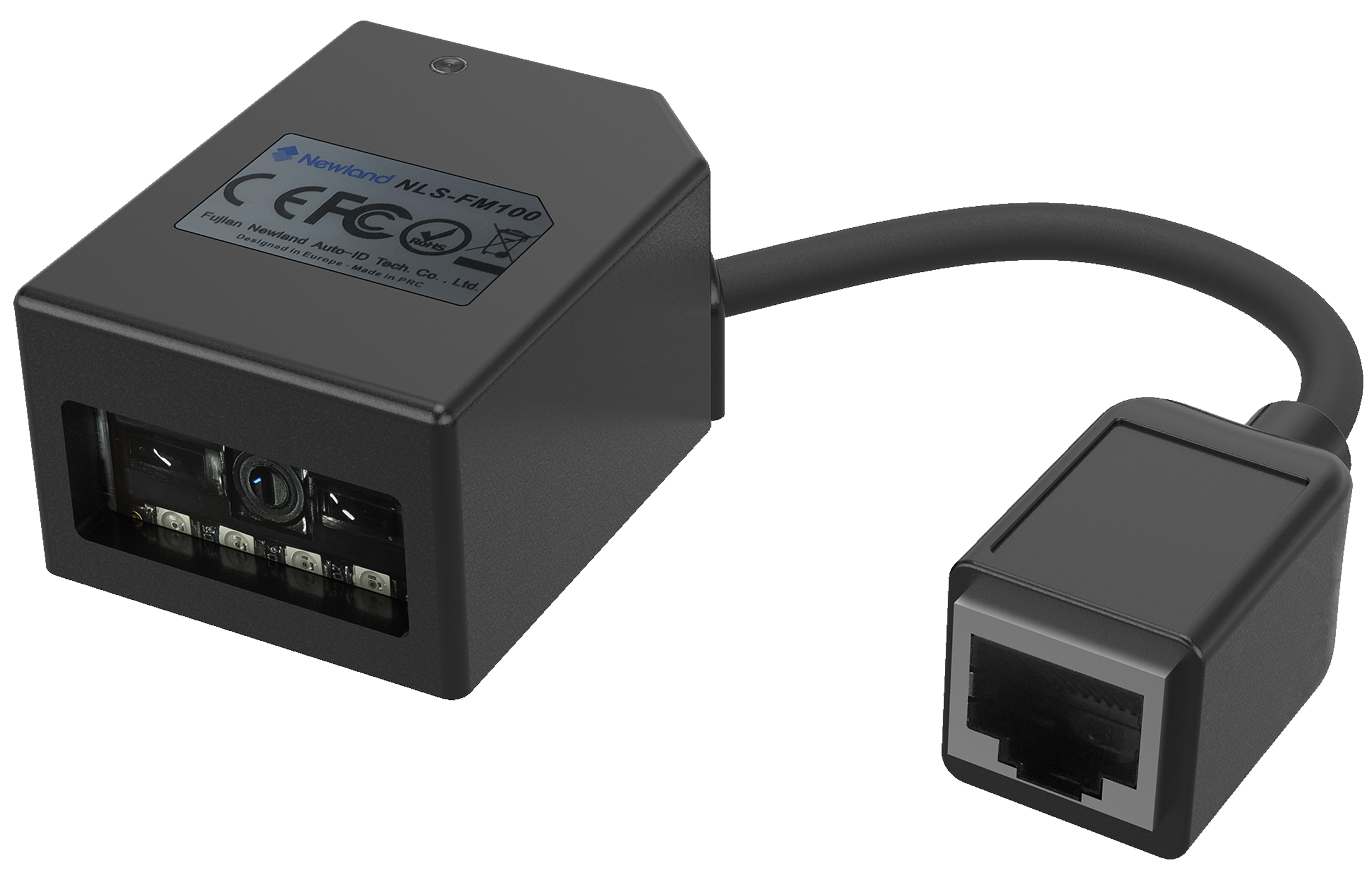

Newland FM100
1D Module Barcode Scanner



● 1D Barcode Reader
● Support 1D Barcodes
● 2500 Pixel Sensor
● 5 mil resolution
● Easy to install
● RS-232 and USB Interfaces

 Performance
 Image Sensor CCD
 Resolution 2500 Pixel
 Light Intensity 265 LUX (130 mm)
 Minimum Bar Width ≥ 5mil( Condition: PCS=0.9, testing code: Code 39)
 Sensitivity Pitch: ±65°; Roll: ±30°; Yaw: ±60°
 Depth of Scan Field 40 mm - 430 mm
 Print Contrast ≥%30
 Light Source LED(622 nm - 628 nm)
 Supported Interfaces RS-232 and USB
 Physical
 Length 49 mm
 Width 37 mm
 Height 26 mm
 Weight 70 Gram
 Electrical
 Voltage DC 5V
 Power Consumption 1,25W
 Current Max. 250mA
Working: 170mA
Idle: 65mA
 Environmental
 Operation temperature -5 °C ~ 45 °C
 Storage temperature -40 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1Databar etc.
