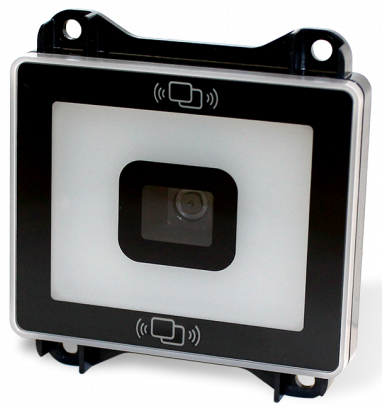

Newland EM20-85
2D Barcode and NFC Module Scanner



● 1D/2D Barcode Reader
● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● Easy to install
● 36,43 Gram Weight
● Powerful data editing capability
● TTL, USB and NFC Interfaces

 Performance
 Image Sensor 640 x 480 Pixel CMOS
 Light Source Illumination: Red LED
 Scan Angle Pitch: ±40°; Roll: ±360°; Yaw: ±45°
 Field of View Horizontal: 68°, Vertical: 51°
 Print Contrast ≥%25
 Depth of Scan Field 1D EAN-13 (13 mil) 30 mm ~ 85 mm
Code 39 (5 mil) 25 mm ~ 70 mm
2D PDF417 (6,67 mil) 30 mm ~ 50 mm
Datamatrix (10 mil) 25 mm ~ 60 mm
 Notification Beeper
 Supported Interfaces TTL-232, RS-232,USB and NFC
 Reading Distances (NFC) 0 ~ 40 mm

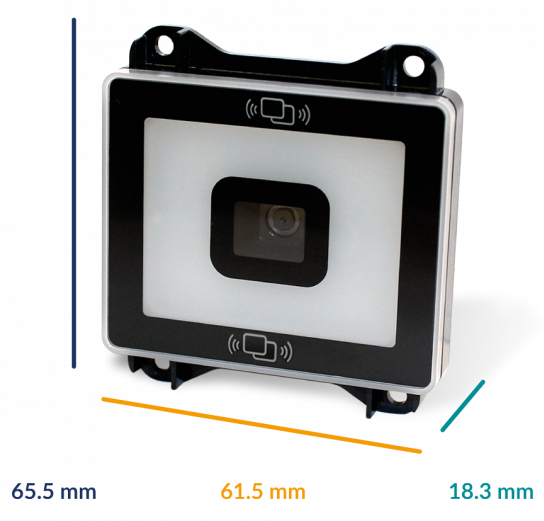

 Physical
 Width 61,5 mm
 Depth 65,5 mm
 Height 18,3 mm
 Weight 36,4 Gram
 Electrical
 Input Voltage 5VDC (±%5)
 Power Consumption 1.07W (Without NFC), 1.26W (With NFC)
1129 mW (5V DC)
 Current Working 215 mA (Max:578 mA) (Without NFC)
253 mA (Max:736 mA) (With NFC)
Stand By 120 mA (Without NFC)
144 mA (With NFC)
 Environmental
 Operation temperature -20°C ~ 60°C
 Storage temperature -40°C ~ 70°C
 Humidty %5 ~ %95 (Non Condensing)
 Ambient Light 0 ~ 100.000 Lux (natural light)
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B, RoHS
 Scanning Capability
 1D Linear Barcodes Code 128, UCC/EAN128, AIM128, EAN-8, EAN-13, ISSN/ISBN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Standard 25, CodaBar, Industrial 25, Code 39, Code 93, Code 11, Plessey, MSI-Plessey, GS1-128 (UCC/EAN-128), GS1-Databar™ (RSS) (RSS14, RSS-Limited, RSS-Expand, Matrix 2 of 5
 2D Barcodes PDF 417, Micro PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode
