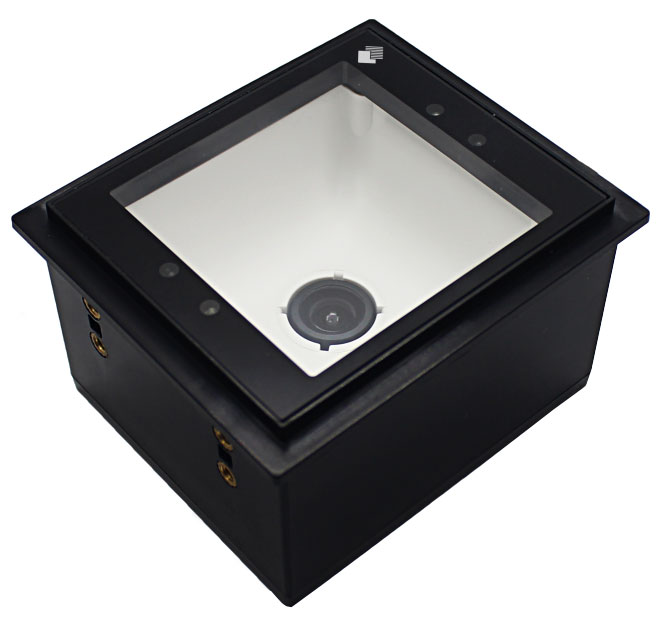

● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 800 x 800 Pixel Sensor
● Reading from LCD Screens
● Easy to install

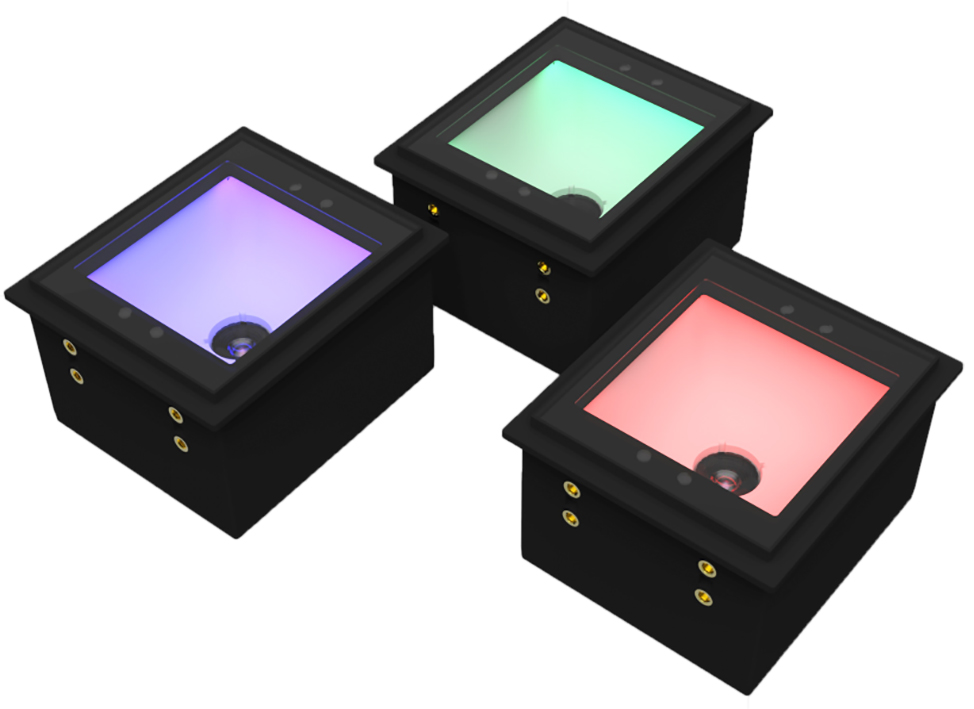

● 4 Different Color Opiton
● RS-232 and USB Interfaces
Performance | |
Image Sensor | 800 x 800 Pixel CMOS |
Light source | White LED |
Resolution | - |
Scan Mode | Sense mode |
Indicators | LED and Beep volume |
Field of View | Horizontal: 74°, Vertical: 74° |
Scan Window | 50 mm x 50 mm |
Scan Angle | Roll: 360°, Pitch: ±40°, Skew: ±40° |
Print Contrast | ≥%25 |
Supported Interfaces | RS-232 and USB |
Physical | |
Width | 78,7 mm |
Height | 47,5 mm |
Depth | 67,7 mm |
Weight | 132 Gram |
Electrical | |
Input Voltage | 5VDC (±5%) |
Current | 185 mA (Max. 193 mA) @5VDC |
Power Consumption | Max. 869 mW |
Environmental | |
Operation temperature | -20 °C ~ 60 °C |
Storage temperature | -40 °C ~ 70 °C |
Humidty | %5 ~ %95 (Non Condensing) |
ESD | ±15 KV (air discharge), ±8 KV (direct discharge) |
Certifications | |
Certifications | FCC Part15 Class B, CE EMC Class B |
Scanning Capability | |
1D Linear Barcodes | EAN-8, EAN-13, UPC-A, UPC-E, ISSN, ISBN, Codabar, Standard 2 of 5, Code 128, Code93, ITF-6, ITF-14, GS1 Databar, MSI-Plessey, Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Plessey, etc. |
2D Codes | PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. |
