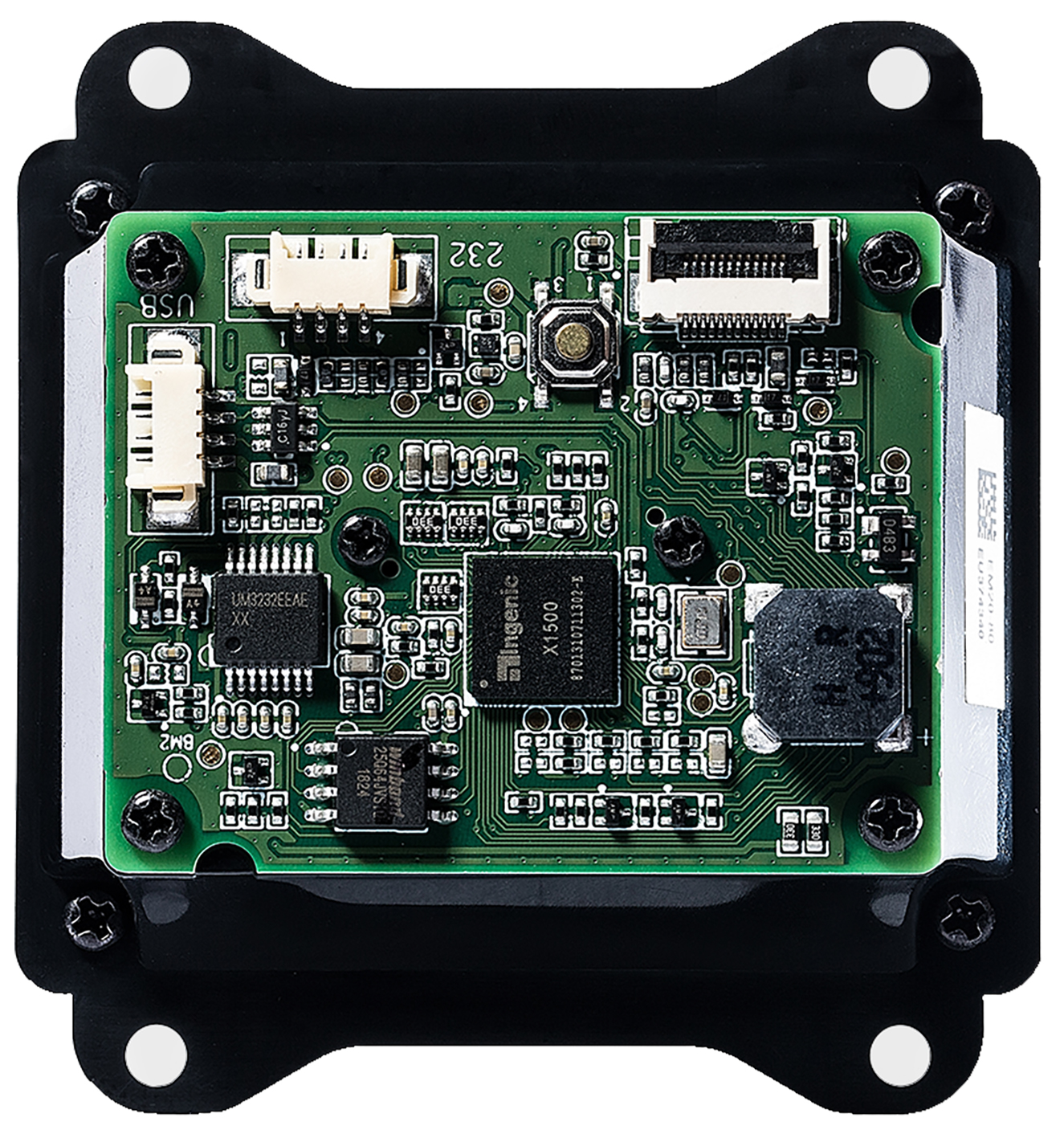

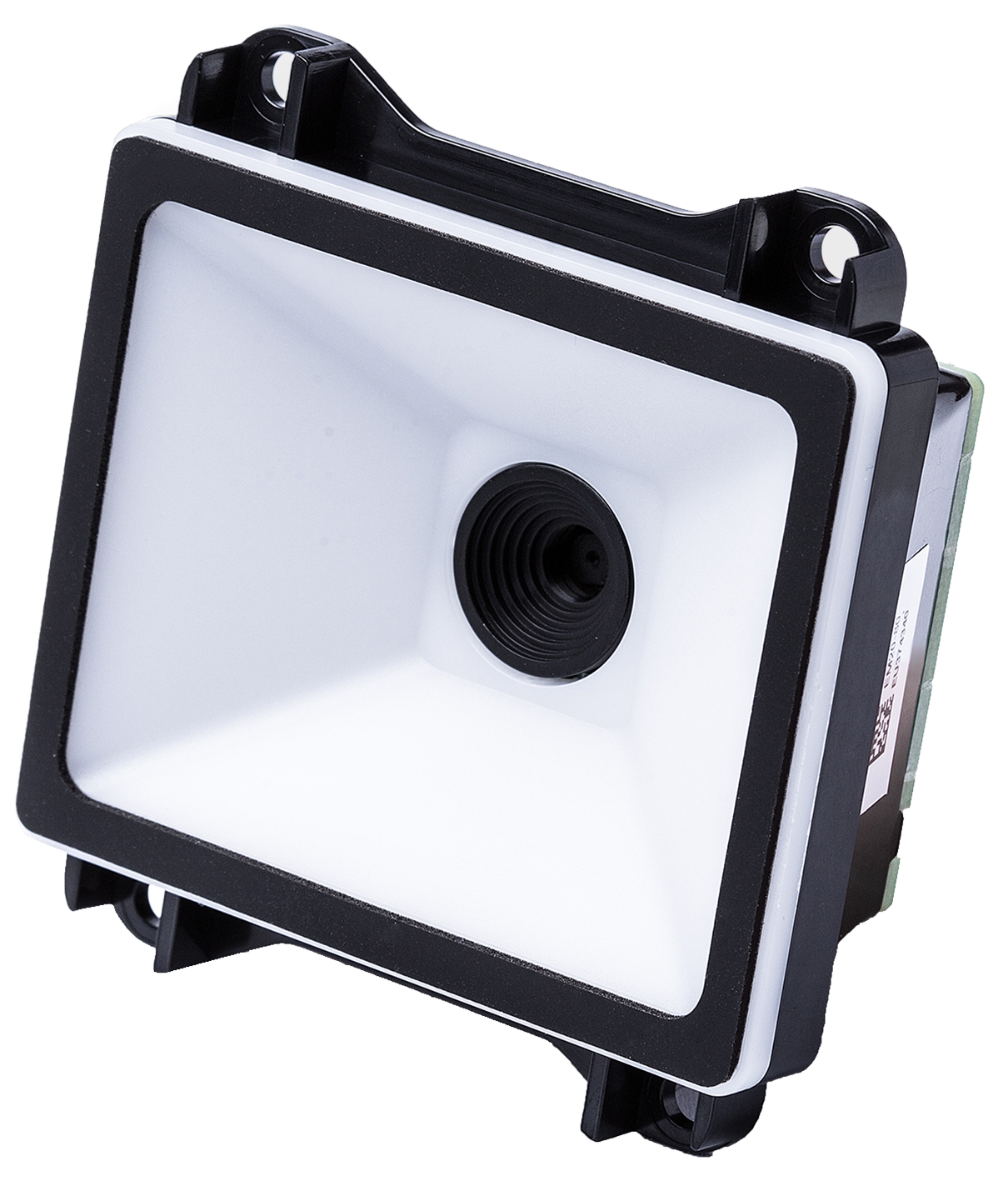

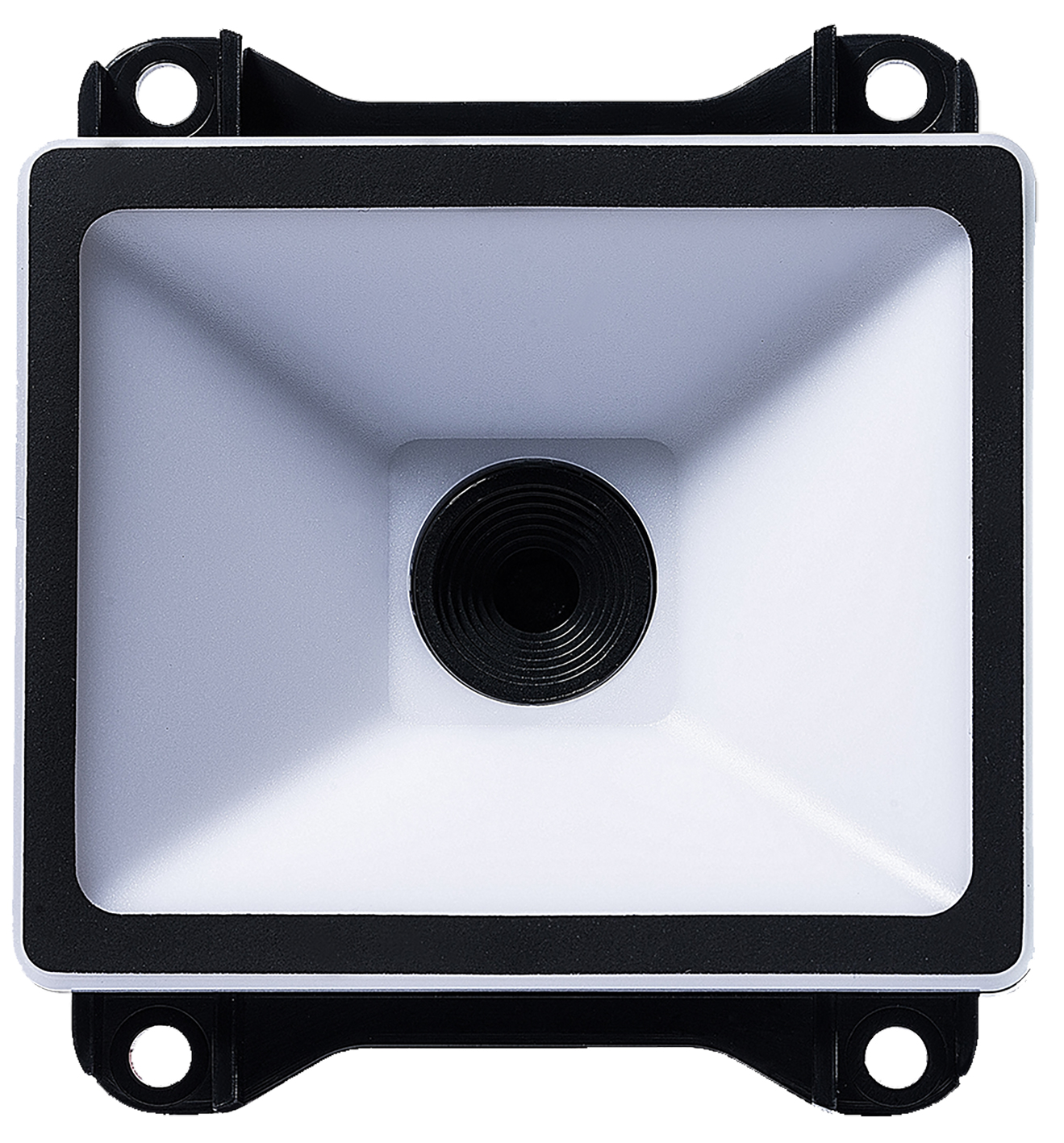

Newland EM20-80
2D Module Barcode Scanner



● 1D/2D Barcode Reader
● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● Easy to install
● 33 Gram Weight
● Powerful data editing capability
● TTL and USB Interfaces

 Performance
 Image Sensor 640 x 480 Pixel CMOS
 Light Source Illumination: Red LED
 Scan Angle Pitch: ±40°; Roll: ±360°; Yaw: ±45°
 Field of View Horizontal: 68°, Vertical: 51°
 Print Contrast ≥%30
 Depth of Scan Field 0 mm - 110 mm
 Notification Green LED And Beeper
 Supported Interfaces TTL and USB
 Physical
 Width 61,5 mm
 Depth 65,5 mm
 Height 31,9 mm
 Weight 33 Gram
 Electrical
 Voltage 12-pin FPC connector: 3,3V DC (±%5)
4-pin connector: 3,3V DC (±%5)
 Power Consumption 1103 mW (3.3V DC)
1129 mW (5V DC)
 Current Working 3.3V DC: 335 mA (Max:479 mA)
5V DC: 237 mA (Max:319 mA)
Stand By 3.3V DC: 93 mA
5V DC: 69 mA
 Environmental
 Operation temperature -40°C ~ 60°C
 Storage temperature -40°C ~ 75°C
 Humidty %5 ~ %95 (Non Condensing)
 Ambient Light 0 ~ 100.000 Lux (natural light)
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes EAN-8, EAN-13, UPC-E, UPC-A, Code 128, UCC/EAN128, I2Of5, ITF-14, ITF-6, Matrix 25, CodaBar, Code 39, Code 93, ISSN, ISBN, Industrial 25, Standard 25, Plessey, Code11, MSI-Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K
 Postal USPS Postnet, Royal Mail, KIX Post, Australian Postal, etc
 2D Barcodes PDF 417, QR Code, Micro QR, Data Matrix, Aztec, Maxicode, Chinese Sensible Code, GM Code, Micro PDF417 Code, Code One
