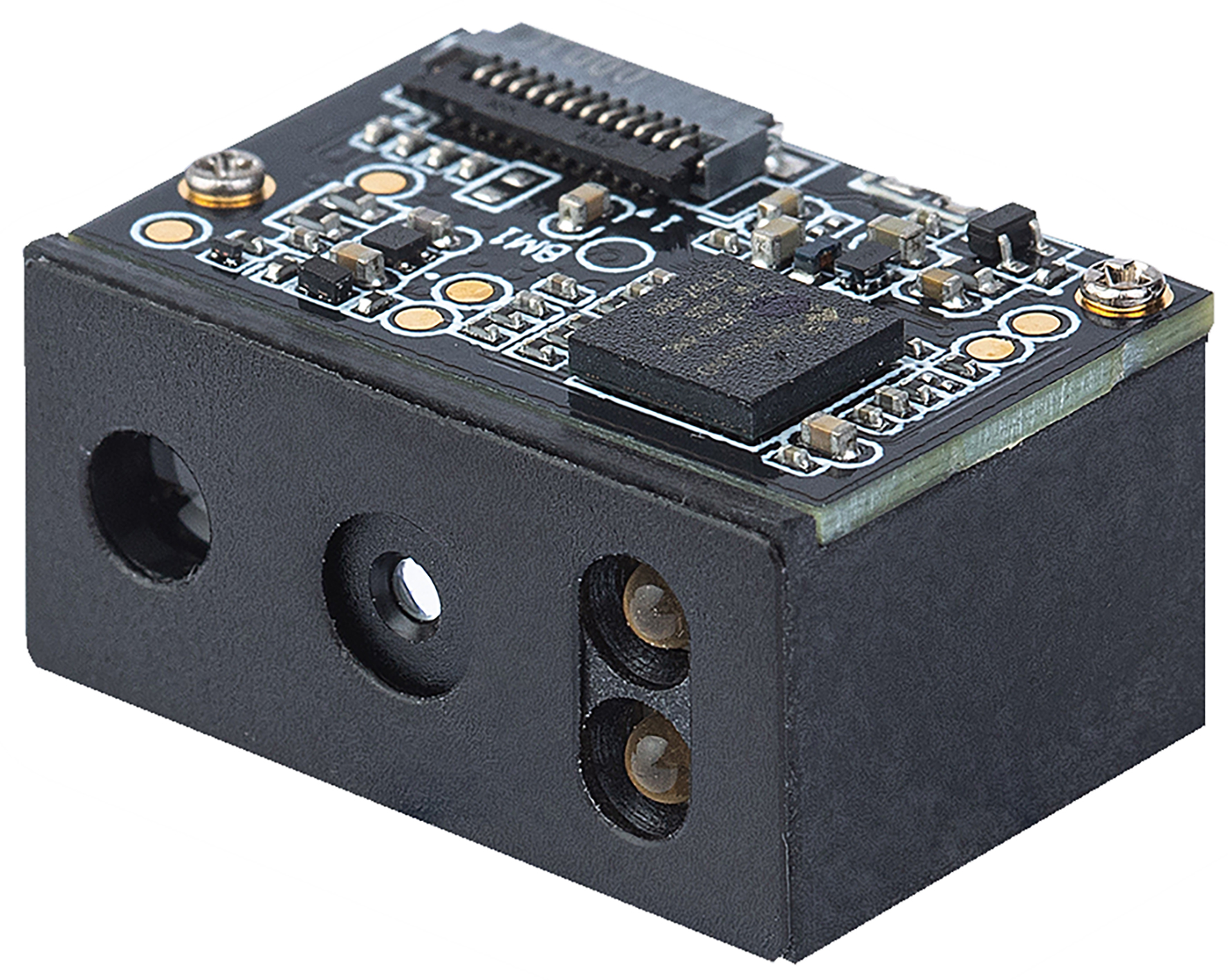

Newland EM3396
2D Module Barcode Scanner



● 1D/2D Barcode Reader
● Support 1D and 2D Barcodes
● 752 x 480 Pixel Sensor
● 3 mil resolution
● Easy to install
● 6,5 Gram Weight
● Powerful data editing capability
● TTL and USB Interfaces

 Performance
 Image Sensor 752 x 480 Pixel CMOS
 Light Source Illumination: 612 nm - 624 nm Red LED
Aiming: 650 nm laser diode
 Minimum Bar Width ≥ 3 mil
 Sensitivity Pitch: ±55°; Roll: ±360°; Yaw: ±55°
 View Angle Horizontal: 36°, Vertical: 23°
 Print Contrast ≥%20
 Depth of Scan Field 45 mm - 290 mm
 Notification LED And Beeper
 Supported Interfaces TTL and USB
 Physical
 Width 21,5 mm
 Depth 15,3 mm
 Height 11,8 mm
 Weight 6,5 Gram
 Electrical
 Voltage 3,3VDC (±5%)
 Power Consumption Max. 468mW
 Current Working: 142mA (typical), 204mA (max.)
Standby: 11mA
Sleep: <100uA
 Environmental
 Operation temperature -20°C ~ 55°C
 Storage temperature -40°C ~ 70°C
 Humidty %5 ~ %95 (Non Condensing)
 Ambient Light 0 ~ 100.000 Lux (natural light)
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140),QR Code, Chinese Sensible Code
 2D Barcodes Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128,GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5,Standard 2 of 5, Plessey, MSI-Plessey, etc.
