● Microsoft Windows Mobile 6.5 operation systems
● TI AM3715 (1 Ghz) proccessor
● 512 MB SDRAM, 512 MB Flash ROM
● 3,8 Inch (800 x 480 pixel) WVGA, High Resolution LCD Display
● Wifi, Bluetooth, RFID, GPRS (3,5G), GSM, GPS technology
● 1,5 mt (5 ft) drop resistance
● IP65 Protection Class
● 5MP Autofocus Camera with Flash
● Free Data Collection Software
| Model | Operation System | Keyboard | Barcode Scanner | Wifi | Bluetooth | Camera | 3G | GPS | RFID |
| 9460UADG | Windows Ce.Net 6.0 | Numeric | 1D (Laser) | Yes | Yes | Yes | None | None | None |
| 9261UMDG | Windows Mobile 6.5 Classic | Numeric | 1D (Laser) | Yes | Yes | Yes | None | None | None |
| 9261UMHG | Windows Mobile 6.5 Classic | Numeric | 1D (Laser) | Yes | Yes | Yes | None | None | None |
| H261UMDG | Windows Mobile 6.5 Classic | Numeric | 2D (Imager) | Yes | Yes | Yes | None | None | Yes |
| H261QMDG | Windows Mobile 6.5 Classic | Qwerty | 2D (Imager) | Yes | Yes | Yes | None | None | Yes |
| 98E2UMDG | Windows Mobile 6.5 Professional | Numeric | 1D (Laser) | Yes | Yes | Yes | Yes | Yes | None |
| 98E2QMDG | Windows Mobile 6.5 Professional | Qwerty | 1D (Laser) | Yes | Yes | Yes | Yes | Yes | None |
| 98E2UMHG | Windows Mobile 6.5 Professional | Numeric | 1D (Laser) | Yes | Yes | Yes | Yes | Yes | None |
| H8E2UMDG | Windows Mobile 6.5 Professional | Numeric | 2D (Imger) | Yes | Yes | Yes | Yes | Yes | Yes |
| H8E2QMDG | Windows Mobile 6.5 Professional | Qwerty | 2D (Imager) | Yes | Yes | Yes | Yes | Yes | Yes |
| H8E2UMHG | Windows Mobile 6.5 Professional | Numeric | 2D (Imager) | Yes | Yes | Yes | Yes | Yes | Yes |
| System | |
| CPU | Intel PXA320 (806 Mhz) proccessor |
| RAM | 256 MB |
| Flash ROM | 512 MB |
| Operation Systems | Windows Mobile 6.5 |
| Display | |
| Type | Transflective TFT, with touch screen & backlight |
| Size | 3,8" |
| Resolution | 240 x 320 pixel |
| Keypad | |

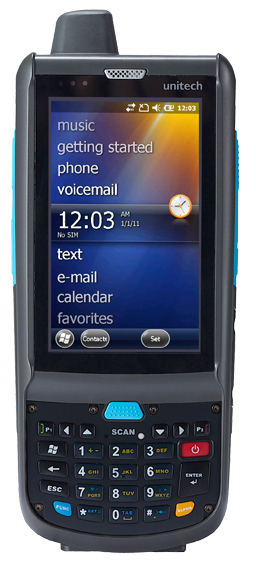

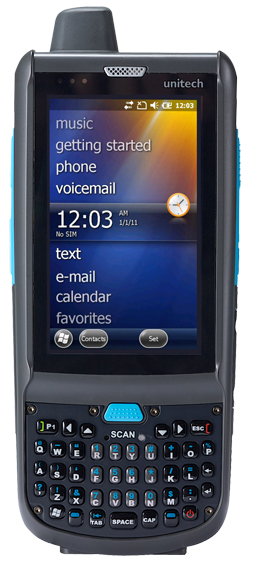

| Type | Numeric or QWERTY |
| Quantity | - |
| Key Types | Numeric keys, alphanumeric keys and function keys |
| Input Device | |
| Type | Keypad |
| Touch Screen | |
| Full Alphanumeric Software Keyboard | |
| Barcode scanner | |
| Camera | 5.0 Megapixel |
| Indicator | |
| Type | LED, Speaker and Vibrator |
| Barcode Engine | |
| Types | Standart: 1D Laser (Motorola Symbol SE-950) |
| Optional: 2D Imager (HHP IT5000SR) | |
| RFID Reader | |
| Frequency | 13.56MHz |
| Tag Support | ISO15693, ISO14443A , ISO14443B |
| Auido | |
| Items | Dual Microphone with Echo Cancelation and Noise reduction design |
| 1W Speaker | |
| 3.5mm headset jack | |
| Reciever | |
| Communication | |
| USB | USB Host & Client |
| WLAN | IEEE 802.11 a/b/g |
| PAN | Bluetooth 2.1 + EDR |
| WWAN | 3.5G Five-bands ,GSM/GPRS 850Mhz , 900MhZ , 1800Mhz and 1900Mhz ,UMTS WCDMA/HSDPA 50Mhz,1900Mhz ,2100Mhz / GPRS Edge |
| Power | |

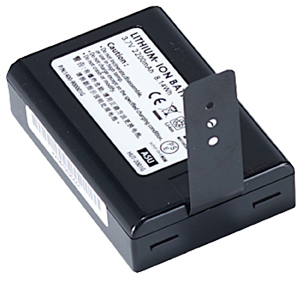

| Main Battery | 8,14 Watts-Hours 3.7V @ 2200 mAH |
| 14,8 Watts-Hours 3.7V @ 4000 mAH | |
| Backup Battery | One rechargeable Ni-MH backup battery (Support 2 Hours backup) |
| Physical | |
| Heigth | 177,66 mm (Antenna length excluded) |
| Width | 74,58 mm |
| Thickness | 40,41 mm |
| Weight | 390 gr (2200 mAH batteries included) |
| Drop test | 1.5 meters to concrete |
| Sealed standard | IP65 |
| EMC | CE, FCC, BSMI, VCCI, CCC, RoHS compliance |
| Environmental | |
| Operation temperature | -10 °C ~ 50 °C |
| Storage temperature | -20 °C ~ 60 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Software | |
| Software | Microsoft Visual Studio 2005 / 2008 |
| Microsoft Windows Mobile SIP (VOIP) | |
| Auto Installer | |
| Expansion Slot | |
| Type | Mini SD (Support SDHC) |
| Accessories | |
| Accessories | 4 slot Multi-Bay Ethernet Cradle |
| 4 slot battery charger | |

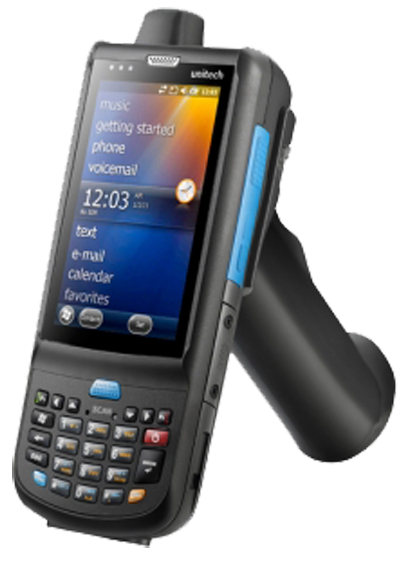

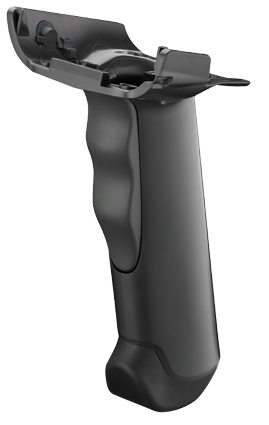

| Gun grip | |

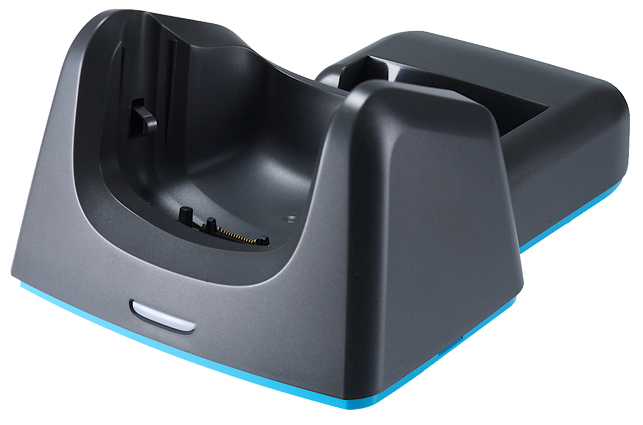

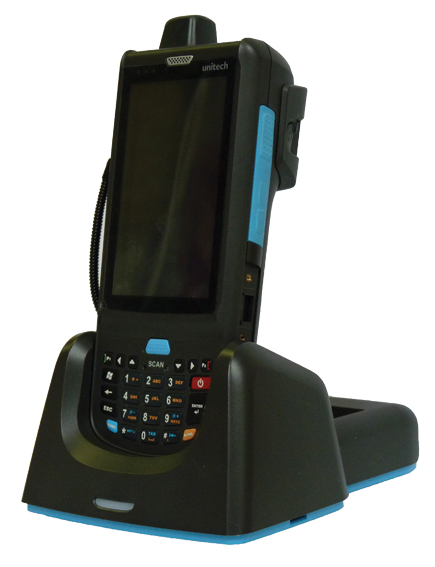

| Desktop USB Cradle with Battery charger | |
| Desktop Ethernet Cradle with Battery charger | |
| Main Battery (2200mAH, 4000mAH) | |

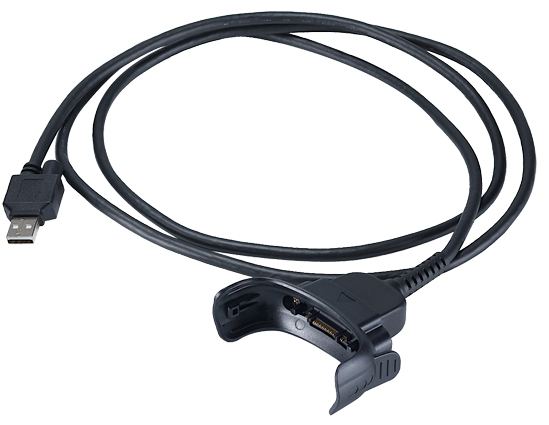

| USB communication and charging cable | |
| AC adaptor Universal Power Plugs | |

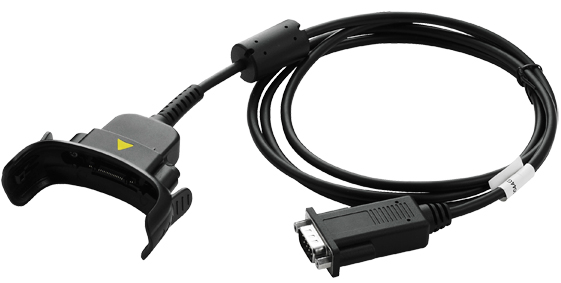

| RS232 Communication and charging cable | |
| Mono 3.5mm Headset | |
| Car kit | |
| Turkish | ||
| Data Sheets |
 |
|
| User Manual |
|
|
| ActiveSync 4.5 | Synchronization software (For Windows XP) |
|
| Mobile Device Center (32 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| Mobile Device Center (64 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| English | ||
| Data Sheets |
|
|
| User Manual |
|
|
| ActiveSync 4.5 | Synchronization software (For Windows XP) |
|
| Mobile Device Center (32 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| Mobile Device Center (64 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| PowerToys | Remote Managment Software |
|
