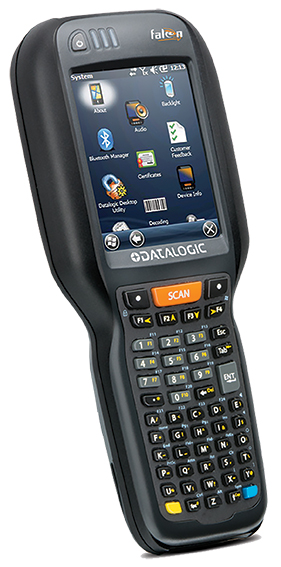

● Windows Mobile Embedded Handheld 6.5 Operation System
● Intel® XScale PXA310 (806 Mhz) Proccessor
● 256 MB RAM, 1 GB Flash ROM
● 3,5 Inch (240x320 Pixel) with Backlight color touch screen
● Wifi and Bluetooth
● 1D or 2D Barcode Scanner Options
● 1.8 mt (6 ft) drop resistance
● 29 or 52 keys keyboard options
● IP65 protection class
● 3.1 Mp autofocus camera
● 'Green Spot' technology for good-read feedback
● Free Data Collection Software
| System | |||
| Microproccessor | XScale™ PXA310 @ 806 MHz | ||
| Coproccessor | Cortex-M3, 32 bit | ||
| RAM | 256 MB | ||
| Flash ROM | 1 GB | ||
| Explansion Slot | MicroSD (Micro SD-HC compatible) | ||
| Operation Systems | Windows Mobile Embedded Handheld 6.5 | ||
| Display | |||
| Type | 65K Color, Backlight, Touchscreen, Diagonal, Reflective TFT daylight readable color display | ||
| Size | 3,5" | ||
| Resolution | 240 x 320 pixel | ||
| Keyboard | |||
| Keyboard Types | 29 Key: Numeric Keyboard | ||
| 52 Key: Alpha Numeric Keyboard | |||
| Communication | |||
| Wired communication | USB: USB 1.1 Host, USB 2.0 Hi-Speed Client | ||
| RS-232C: Up To 115200 Kbps | |||

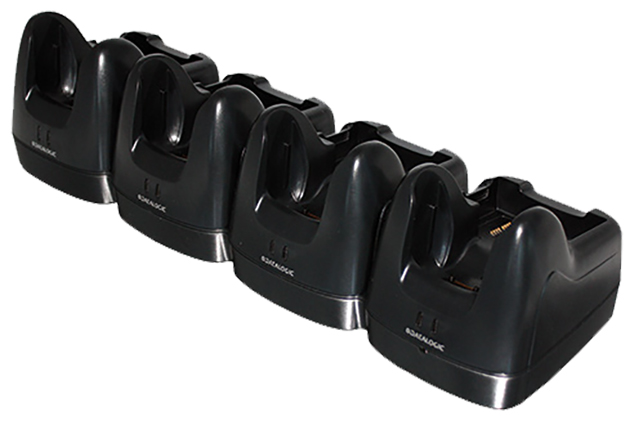

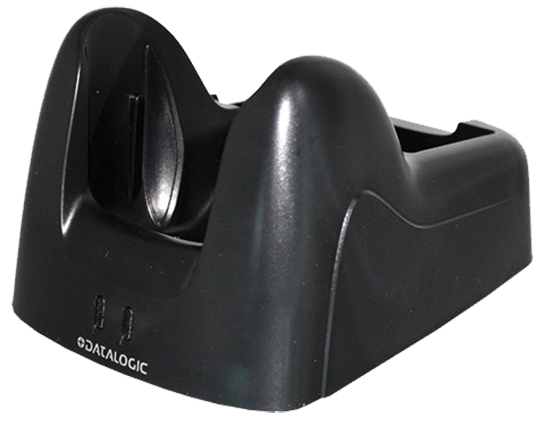

| Ethernet: Via Single Dock or multiple Cradle (Optional) | |||
| Wireless communication | Wifi: Laird/Summit IEEE 802.11 a/b/g/n (Frequency range: Country dependent, typically 2.4 GHz and 5.2 GHz,Cisco Compatible CCX v4 Security) | ||
| Bluetooth: Bluetooth® wireless technology IEEE 802.15 Class 2 with EDR | |||
| Power | |||

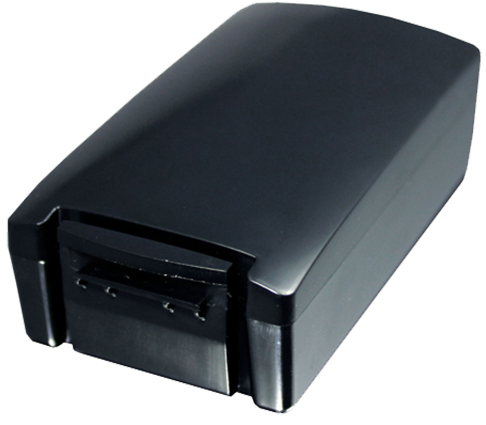

| Main Battery | 3.7V, 5200 mAH Rechargeable Li-ion Battery (19,2 Watt Hours) | ||
| Physical | |||
| Weight | 608 gram | Without pistol | |

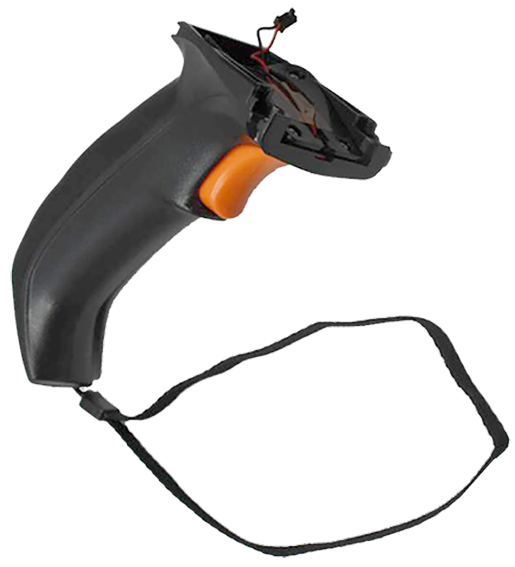

| 674 gram | With pistol | ||
| Dimensions | Without pistol | Height | 225 mm |
| Width | 88 mm | ||
| Thickness | 55 mm | ||
| With pistol | Height | 225 mm | |
| Width | 88 mm | ||
| Thickness | 168 mm | ||
| Environmental | |||
| Operation temperature | -20 °C ~ 50 °C | ||
| Storage temperature | -30 °C ~ 70 °C | ||
| Particulate and water sealing | IP65 | ||
| Drop Resistance | 1,8 meter | ||
| Decoding Capability | |||
| 1D / Linear Codes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. | ||
| 2D Codes | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code | ||
| Postal Codes | Australian Post, Intelligent Mail, Japan Post,KIX Post; Planet Code, Postnet; Royal Mail Code (RM4SCC) | ||
| Stacked Codes | GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, MicroPDF417,PDF417, UPC A/E Composites | ||
| Barcode Scanner | |||
| High Performance Laser (HPL) | Resolution | 1D: 0.100 mm (4 mil) | |
| Scan Rate | 104 Scan / Sec (±12) | ||
| Scan Distance | 10 mm ~ 830 mm | ||
| Good Read Feedback | "Green Spot" Good Read Feedback | ||
| Long Range Laser (XLR) | Resolution | 1D: 0.20 mm (7,5 mil) | |
| Scan Rate | 31 ~ 41 Scan / Sec | ||
| Scan Distance | Reflective Label: 9 cm ~ 490 cm | ||
| Non-Reflective Label: 1509 cm | |||
| Good Read Feedback | "Green Spot" Good Read Feedback | ||
| Standard Range Imager (XLR) | Resolution | 1D: 5 mil | |
| 2D: 6,7 mil | |||
| Scan Distance | 2 cm ~ 60 cm | ||
| Good Read Feedback | "Green Spot" Good Read Feedback | ||
| Extra Long Range Imager (XLR) | Resolution | 1D: 5 mil | |
| 2D: 10 mil | |||
| Scan Distance | 17 cm ~ 952 cm | ||
| Good Read Feedback | "Green Spot" Good Read Feedback | ||
| Software | |||
| Configuration & Maintenance | Wavelink Avalanche® MC prelicensed, Wavelink Avalanche® SE prelicensed, Avalanche Remote Control™, Datalogic Firmware Utility (DFU), Datalogic Desktop Utility (DDU), Datalogic Configuration Utility (DCU) | ||
| Development | Datalogic Windows SDK™, Wavelink® Studio™, MCL-Collection™, Java Virtual Machine | ||
| Terminal Emulaiton | Wavelink® Terminal Emulation™ prelicensed (for Pistol Grip models only) | ||
| Security | Wavelink CE Secure, Wavelink Certificate Manager | ||
| Applications | Pal™ Application Library prelicensed | ||
| Voice-Picking | Vo-CE™; Wavelink Speakeasy™ | ||
| Turkish | ||
| Data Sheets |
 |
|
| User Manual |
|
|
| ActiveSync 4.5 | Synchronization software (For Windows XP) |
|
| Mobile Device Center (32 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| Mobile Device Center (64 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| English | ||
| Data Sheets |
|
|
| User Manual |
|
|
| ActiveSync 4.5 | Synchronization software (For Windows XP) |
|
| Mobile Device Center (32 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| Mobile Device Center (64 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| PowerToys | Remote Managment Software |
|
