● Windows Embedded HandHeld 6.5 Operation System
● Intel® XScale PXA310 (624 Mhz) Proccessor
● 256 MB RAM, 512 MB Flash ROM
● 3,2 Inch (240x320 Pixel) with Backlight color touch screen
● Wifi and Bluetooth
● 1D or 2D Barcode Scanner Options
● 1.5 mt (5 ft) drop resistance
● 28, 38 or 50 keys keyboard options
● IP64 protection class
● 'Green Spot' technology for good-read feedback
● Free Data Collection Software
| System | ||
| CPU | Intel Xscale PXA310 (624 Mhz) 32 Bit RISC CPU | |
| RAM | 256 MB SDRAM | |
| Flash ROM | 512 MB ROM | |
| Operation Systems | Windows Embedded HandHeld 6.5 | |
| Display | ||
| Type | With Backlight QVGA, Transflective LCD | |
| Size | 3,2" | |
| Resolution | 240 x 320 pixel | |
| Keyboard | ||

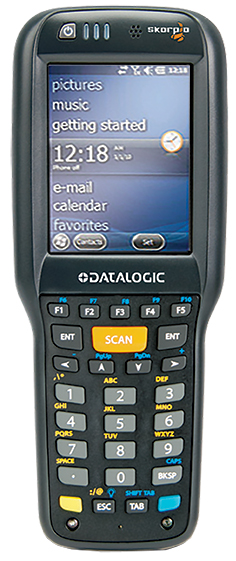

| Keyboard Types | 28 Key: Numeric Keyboard | |
| 38 Key: Functional Numeric Keyboard | ||

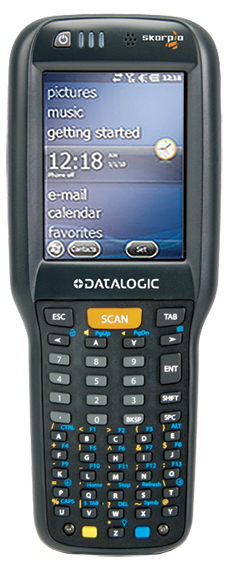

| 50 Key: Full Alpha Numeric Keyboard | ||
| Communication | ||
| Wired communication | USB: USB 1.1 Host & Client (Micro-USB port for power only, no data communication interface) | |
| RS-232C: Up To 115200 Kbps | ||

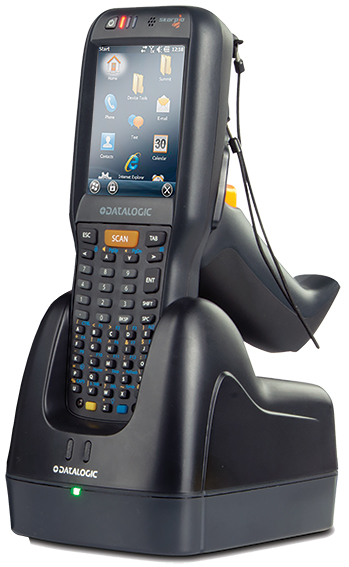

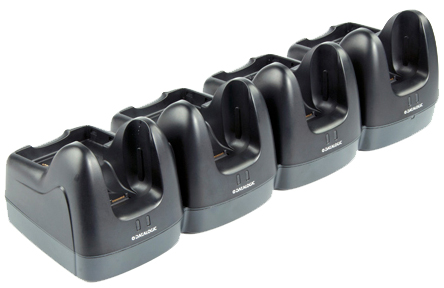

| Ethernet: Via Single Dock or multiple Cradle (Optional) | ||
| Wireless communication | Wifi: Summit IEEE 802.11 a/b/g (Frequency range: Country dependent, typically 2.4 GHz and 5.2 GHz,Cisco Compatible CCX v4 Security) | |
| Bluetooth: Bluetooth® wireless technology IEEE 802.15 Class 2 with EDR | ||
| Power | ||

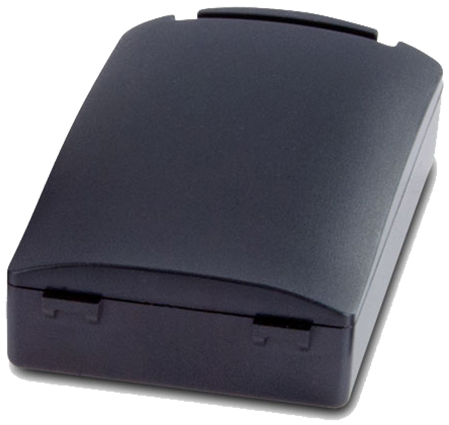

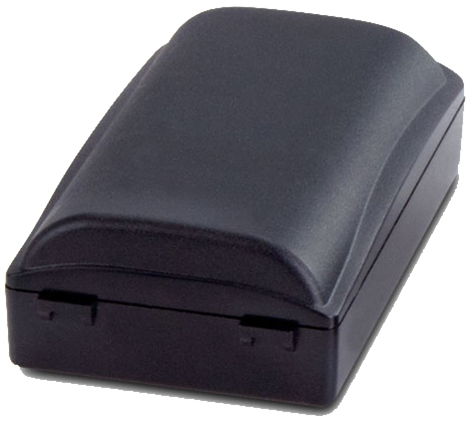

| Main Battery | Standart: 3.7V DC, 3000 mAH Rechargeable Li-ion Battery | |
| Optional: 3.7V DC, 5200 mAH Rechargeable Li-ion Battery | ||
| Physical | ||
| Weight | 392 gram | Standart Battery without pistol |

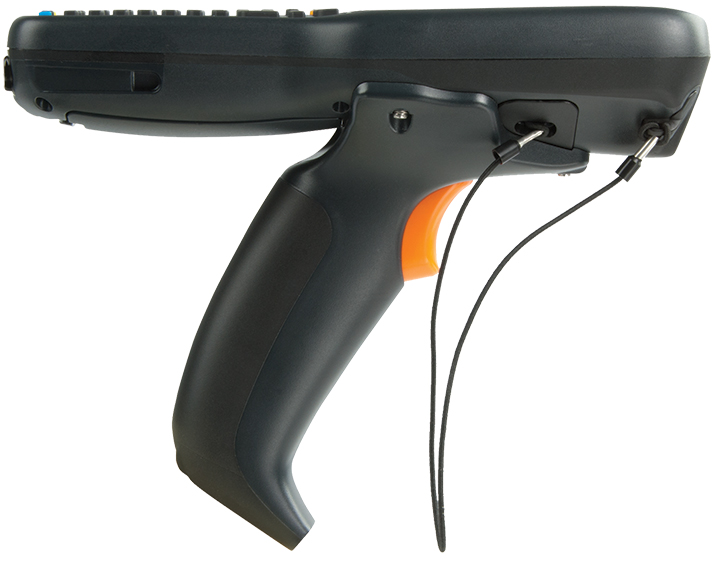

| 482 gram | Standart Battery with pistol | |
| Dimensions | Height | 193 mm |
| Width | 76 mm | |
| Thickness | 42 mm | |
| Environmental | ||
| Operation temperature | -10 °C ~ 50 °C | |
| Storage temperature | -25 °C ~ 70 °C | |
| Particulate and water sealing | IP64 | |
| Drop Resistance | 1,5 meter | |
| Decoding Capability | ||
| 1D / Linear Codes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. | |
| 2D Codes | Aztec Code, DataMatrix, MaxiCode, QR Code, Upu FICS, USPS Intelligent Mail | |
| Postal Codes | Australian Post, Japan Post, KIX Code, Planet,Postnet, Royal Mail Code (RM4SCC) | |
| Stacked Codes | Micro PDF, PDF417 | |
| Barcode Scanner | ||
| 2D Barcode Scanner | Resolution | 1D: 0.100 mm (4 mil) |
| 2D: 0.127 mm (5 mil) | ||
| Scan Rate | Max. 60 frames/sec | |
| Scan Distance | 35 mm ~ 415 mm | |
| Good Read Feedback | "Green Spot" Good Read Feedback | |
| 1D Barcode Scanner | Resolution | 0.100 mm (4 mil) |
| Scan Rate | 104 Tarama (±12) | |
| Scan Distance | 40 mm ~ 820 mm | |
| Good Read Feedback | "Green Spot" Good Read Feedback | |
| Software | ||
| Applications | Pal™ Application Library prelicensed | |
| Configuration & Maintenance | Wavelink Avalanche® MC prelicensed, Wavelink Avalanche® SE prelicensed, Avalanche Remote Control™, Datalogic Firmware Utility (DFU), Datalogic Desktop Utility (DDU), Datalogic Configuration Utility (DCU) | |
| Development | Datalogic Windows SDK™, Wavelink® Studio™, MCL-Collection™, Java Virtual Machine | |
| Security | Wavelink CE Secure, Wavelink Certificate Manager | |
| Terminal Emulaiton | Wavelink® Terminal Emulation™ prelicensed (for Pistol Grip models only | |
