● Microsoft Windows Mobile 6.5 operation systems
● Intel PXA-320 (806 Mhz) proccessor
● 256 MB SDRAM, 512 MB Flash ROM
● 2,8 Inch QVGA, with touch screen-Color LCD Display
● Ergonomic, compact, robust and lightweigt
● Wifi, Bluetooth, GPRS (3.5G), GPS technology
● 1,2 mt (4 ft) drop resistance
● 5 Megepixel Camera
● 1D Laser Barcode Scanner
● Free Data Collection Software
| System | |
| CPU | Intel PXA320 (806 Mhz) proccessor |
| RAM | 256 MB |
| Flash ROM | 512 MB |
| Operation Systems | Windows Mobile 6.5.3 Professional |
| Display | |
| Type | Transflective TFT, with touch screen & backlight (excellent sunlight readability, 80° viewing) |
| Size | 2,8" |
| Resolution | 240 x 320 pixel |
| Keypad | |
| Type | Standart: QWERTY Keypad |
| Optional:Numeric Keypad | |
| Quantity | - |
| Key Types | Numeric keys, alphanumeric keys and function keys |
| Input Device | |
| Type | Keypad |
| Touch Screen | |
| Full Alphanumeric Software Keyboard | |
| Barcode scanner | |
| Camera | 5.0 Megapixel |
| Indicator | |
| Type | LED, Speaker and Vibrator |
| Barcode Engine | |
| Types | Standart: 1D Laser (Motorola Symbol SE-950) |
| Barcode Types | UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full ASCI, Code 93,Code 32, Interleaved & Std. 2 of 5, EAN 128, Code 11, Delta, MSI/Plessey,Code 128, Toshiba |
| Auido | |
| Items | Microphone with Echo Cancelation and Noise reduction design |
| Speaker | |
| Headset jack | |
| Reciever | |
| Communication | |
| USB | 1.1 Host & Client |
| WLAN | IEEE 802.11 b/g |
| PAN | Bluetooth 2.1 + EDR |
| WWAN | 3.5G Five-bands ,GSM/GPRS 850Mhz , 900MhZ, 1800Mhz and 1900Mhz ,UMTS, WCDMA/HSDPA 950Mhz,1900Mhz ,2100Mhz / GPRS Edge |
| Power | |
| Main Battery | 9,25 Watts (3.7V 2500 mAH) Li-Ion battery pack |
| Backup Battery | One rechargeable Ni-MH backup battery (Support 2 Hours backup) |
| Operation Hours | Up to 10 hours, depending on configuration and application |
| Physical | |
| Heigth | 125 mm (Antenna length excluded) |
| Width | 82 mm |
| Thickness | 35 mm |
| Weight | 320 gr (Batteries included) |
| Drop test | 1.2 meters to concrete |
| Sealed standard | IP54 |
| EMC | CE, FCC, BSMI, VCCI, CCC, RoHS compliance |
| Environmental | |
| Operation temperature | -10 °C ~ 50 °C |
| Storage temperature | -20 °C ~ 60 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Software | |
| Software | Microsoft Visual Studio 2005 / 2008 |
| Microsoft Windows Mobile SIP (VOIP) | |
| Auto Installer | |
| Expansion Slot | |
| Type | Micro SD (Support SDHC) |
| Accessories | |

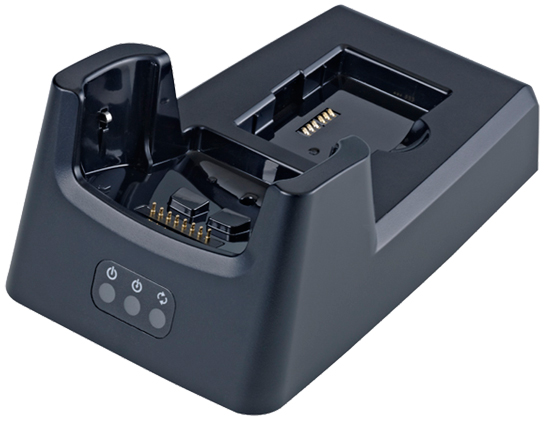

| Accessories | Desktop USB Cradle with Battery charger |
| Desktop Ethernet Cradle with Battery charger | |

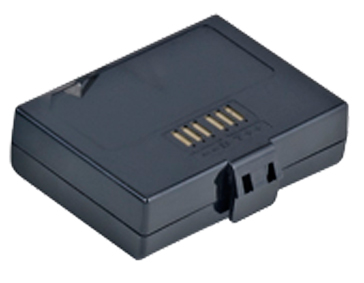

| Main Battery | |

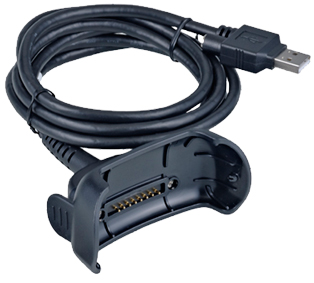

| USB communication and charging cable | |

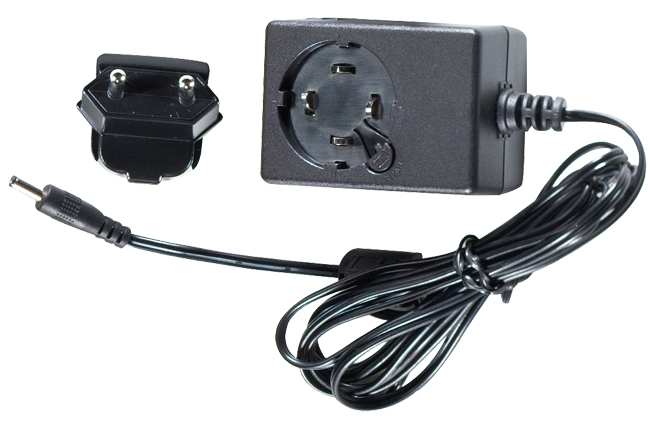

| AC adaptor Universal Power Plugs | |
| Vehicle Cigarette Charger | |
| Mono 3.5mm Headset | |
| Car kit | |
| Turkish | ||
| Data Sheets |
 |
|
| ActiveSync 4.5 | Synchronization software (For Windows XP) |
|
| Mobile Device Center (32 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| Mobile Device Center (64 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| English | ||
| Data Sheets |
|
|
| User Manual |
|
|
| Programming Manual |
|
|
| ActiveSync 4.5 | Synchronization software (For Windows XP) |
|
| Mobile Device Center (32 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| Mobile Device Center (64 Bit) | Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10) |
|
| PowerToys | Remote Managment Software |
|
