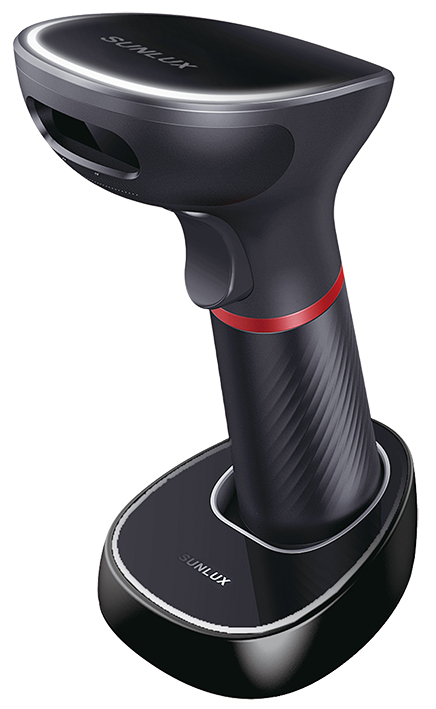

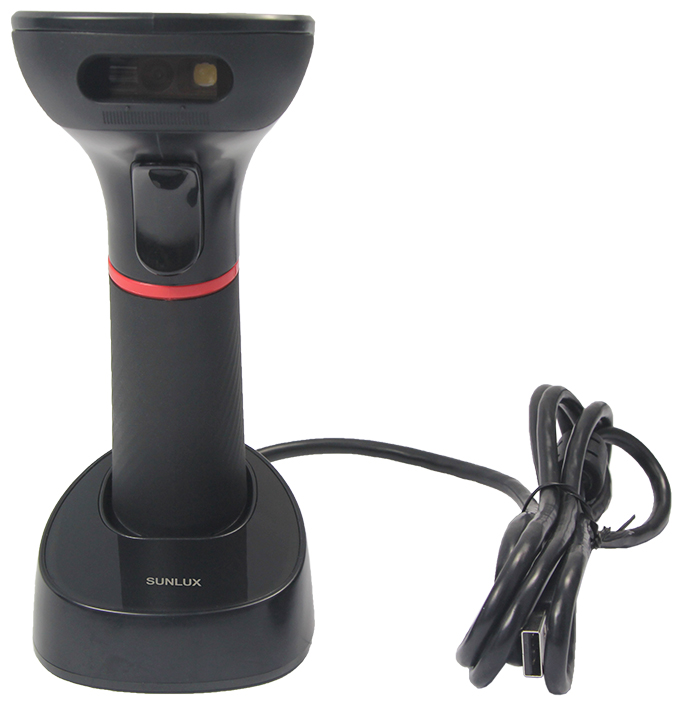

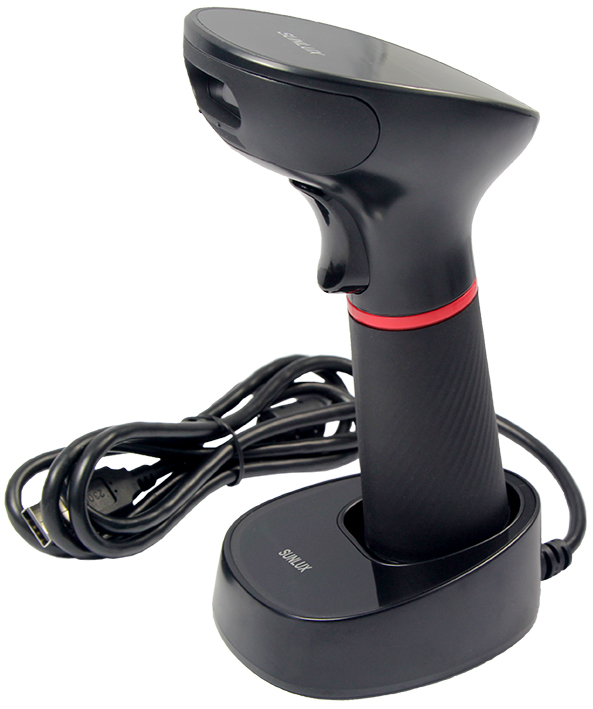

● 2D Imager Barcode Scanner
● Wifi and Bluetooth Communication (With Setting)
● Data Transmission Range: Wifi: Max. 150 meter, Bluetooth: Max. 10 meter
● Min. 3 mil Resolution
● 60 ~ 360 mm Scanning Distance
● Reading from LCD Display
Operational | |
Light Source | Illumination: White LED |
Aiming: Red LED | |
CPU | 32 Bit ARM |
Image Sensor | CMOS |
Image Size | 640 x 480 Pixel |
Exposure | Global Exposure |
Supported Barcode Types | 1D (Linear) ve 2D (Imager) |
Minumum Bar Width | 3 Mil |
Scanning Distances | 60 - 360 mm (13 mil PCS %90) |
Scensitivity | Roll:360° Skew:±65°, Pitch:±55° |
Scan Speed | 60 fps/s |
Scan Mode | Manual & Automatic |
Memory capacity | Max. 100,000 EAN 13 Barcodes |
Indicator | Ring LED and Buzzer |
Interfaces | USB、USB-VCP |
Communication | |
Technology | Wifi And Bluetooth (With Settings) |
Communication Mode | Wifi: 2,4 Ghz |
Bluetooth: 4.0 | |
Communication Distance | Wifi: Max. 150 meter (At open places) |
Bluetooth: Max. 10 meter (At open places) | |
Decoding Capability | |
1D | Codabar、Code11、Code39、Code32、Interleaved 2 of 5、Industrial 2 of 5、 Matrix 2 of 5、Code93、Code128、GS1-128、UPC-A、UPC-E、EAN 8、EAN 13、GS1 DataBa(r RSS14)、GS1 DataBar Limited、GS1 DataBar Expanded etc. |
2D | PDF417、Micro PDF417、QR Code、Micro QR、Data Matrix、Aztec Code |
Electrical | |
Battery Type | Litium Ion |
Battery Capacity | 2200 mAh |
Operating Current | Working mode: 250 mA |
Stand by Mode: <1uA | |
Battery Life | Max. 16 Hours |
Charging Method | With USB Cable Charge |
Input Voltage | DC 5V |
Charging Time |
Max. 4 ,5 Hours (With USB Cable Charge) |
Physical | |
Scanner | Length: 163 mm |
Width: 68 mm | |
Height: 80 mm | |

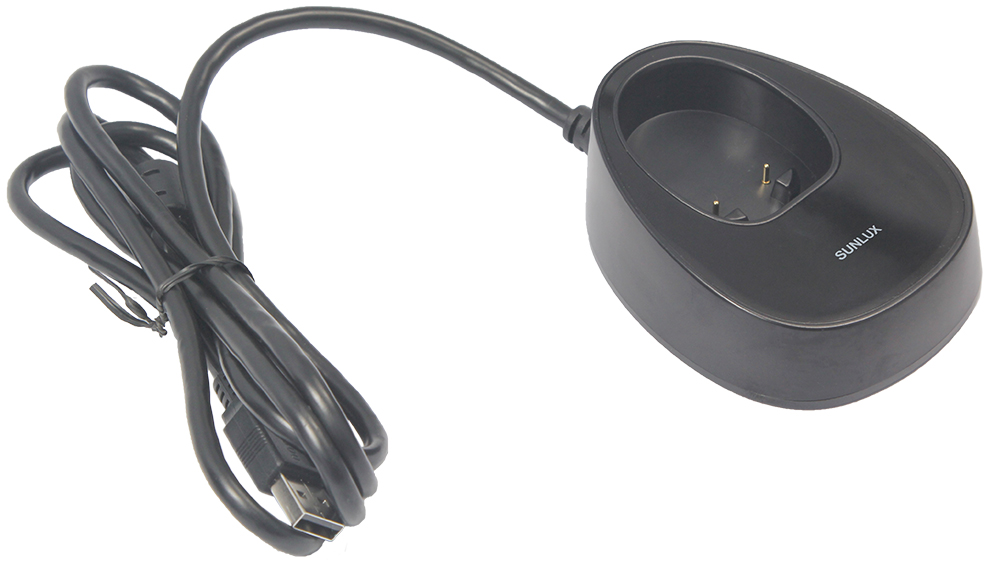

Receiver | Length: 92 mm |
Width: 73 mm | |
Height: 35 mm | |
Weight | Scanner: 185 gram |
Receiver: 220 gram | |
Cable | 1,6 meter (Straight) |
Material | Abs + TPU |
Environmental | |
Drop Durability | 1,5 meter |
Illumination | 0 ~ 5.000 Lux (Fluorescent), 0 ~ 100.000 Lux (Sunlight) |
Operation temperature | 0°C ~ 50°C |
Storage temperature | -40°C ~ 70°C |
Humidty | %5 ~ %95 (Non Condensing) |
