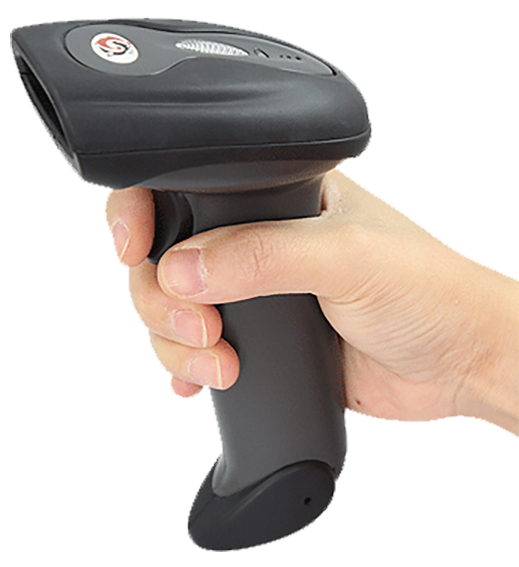

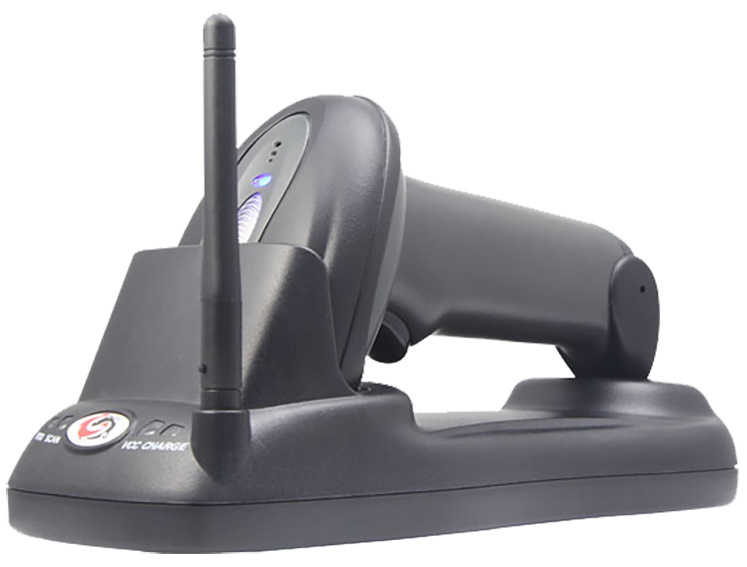

Sunlux XL-9310
Wireless 1D Barcode Scanner



● 1D Barcode scanner
● Wireless induction charge without cable
● The battery can be easily taken from the scanner
● 1 base frame can support 99 scanners
● he communication distance on open places is up to 600m
● Antiknock design: withstand 1.5M drops
● Service life of button reaches up to 50 million times
● Supporting the RS232,PS2 and USB interface
● Full independent intellectual property rights

 Operational
 Light source 650 nm (±10) visible laser diode (VLD)
 Barcode Type Capability 1D
 Minimum Bar Width 0,076 mm (3 mil)
 Scan Rate 100 scans/sec
 Depth of field 0 - 250 mm
 Scan Width 30 mm ~ 220 mm
 Print Contrast %30 (UPC-A/EAN)
 Indicators (LED) LED and Beeper
 Tilt & Elevation & Deflection 30° & 65° & 55°
 System Interfaces PS/2, RS-232C and USB
 Communication
 Radio Frequency 433 MHz ISM frequency
 Communication Distance Max. 600 m (At open places)
 Operating Current Stand By Mod : 36 mA
Operation Mod: 85 mA
 Laser Level Meet the Grade I National Criteria for Laser Safety
 Agency Approval CE & FCC DOC compliance
 Physical
 Length 95 mm
 Width 70 mm
 Height 160 mm
 Weight 158 gr
 Cables Standard 2 meter straight
 Material Abs Plastic
 Electrical
 Input Voltage 5VDC
 Operating Current Stand By Mod : 40 mA
Operation Mod: 90 mA
 Laser Class Meet the Grade I National Criteria for Laser Safety
 EMC CE , FCC DOC Compliance
 Environmental
 Operation temperature 0°C ~ 45°C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %85 (Non Condensing)
 Light Levels Max 5.000 Lux (fluorescence)
 Drop Durability 1,5 meter
 Decode Capabilities
 Barcode Types EAN-8, EAN-13, UPC-A, UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc.
