● Decodes 1D/2D Barcodes,Postal and Stacked Codes
● Wide VGA (752 x 480 Pixel) Imager Sensor
● Bluetooth Wireless Technology with up to 30 m (98 ft) range
● ‘Green Spot’ for good-read feedback plus the 4-dot Aimer
● Batch Mode capability (>1200 codes stored in memory)
● User-replaceable and long lasting Lithium-Ion battery
● Multi Intefaces
● Drop resistance to 1.5 m

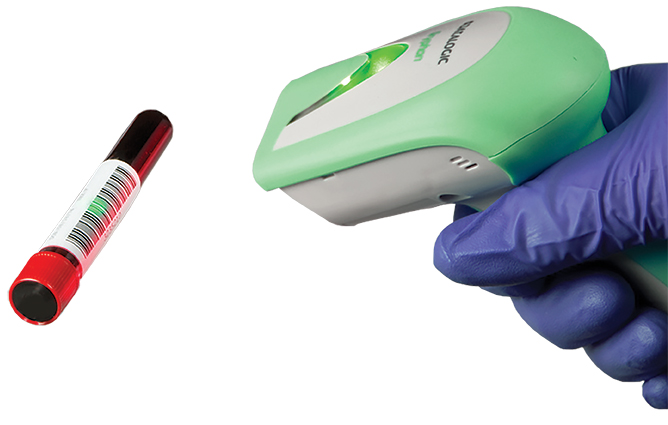

● Disinfectant-Ready enclosures treated with anti-microbial additives
| Reading Performance | |
| Image Sensör | Wide VGA (752 x 480 pixel) |
| Light source (Aiming) | 610-650 nm Red LED |
| Motion Tolerance | 25 IPS |
| Print Contrast (Minimum) | 25% |
| Scan Angle | Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/- 40° |
| Indicators (LED) | Beeper (Adjustable Tone), Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
| Resolution | 1D Linear: 0.102 mm / 4 mils |
| Data Matrix: 0.178 mm / 7 mils | |
| PDF417: 0.102 mm / 4 mils | |
| Cordless Communication | |
| Protocol | Bluetooth 2.0 Class 2 |
| Frekans | 2,4 Ghz |
| Profil | SPP (Serial Port Profile) |
| Readers per radio receiver | Max. 7 Device (Optional) |
| Decoding Capability | |
| 1D Linear barcodes | Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes |
| 2D Kodlar | Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, QR Code |
| Postal Codes | Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC) |
| Stacked Codes | EAN/JAN Composites, GS1 DataBar Composites, GS1, DataBar Expanded Stacked, GS1 DataBar Stacked, GS1, DataBar Stacked Omnidirectional |
| Scanning Distances | |
| Scanning Distances | Code 39: 5 mils: 4.0 ~ 19.0 cm |
| Code 39: 10 mils: 1.0 ~ 30.0 cm | |
| Data Matrix: 10 mils: 2.0 ~ 16.0 cm | |
| Data Matrix: 15 mils: 0 ~ 23.6 cm | |
| EAN -13: 13 mils: 1.5 ~ 40.0 cm | |
| PDF417: 10 mils: 0.5 ~ 22.0 cm | |
| QR Code: 10 mils: 3.0 ~ 12.5 cm | |
| Physical | |
| Height | 170 mm |
| Depth | 65 mm |
| Width | 70 mm |
| Weight | 119 gr (Without Stand) |
| Enclosure |
Disinfectant-Ready Enclosure Treated with Anti-Microbial Additives (ISO22196 and JISZ 2801 compliant models available) |
| Color | Black |
| Electrical | |
| AC Power requirements | 5VDC ± 0.5V |
| Power consumption | Operation Mode: 340 mA @5VDC |
| Power consumption | Standby Mode: 190 mA @5VDC |
| Environmental | |
| Light Levels | 100.000 Lux |
| Operation temperature | 0°C ~ 50°C |
| Storage temperature | -40 °C ~ 70 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Drop Durability | 1,5 meter |
| IP Standard | IP42 |
| ESD Protection (Air Discharge) | 16 kV |
| Scanning Distances | |
| Scanning Distances |
5 mils : 2.5 to 15.0 cm 7.5 mils : 0 to 24.0 cm 10 mils: 0 to 35.0 cm 13 mils: 0 to 40.0 cm 20 mils: 0 to 60.0 cm |
| Safety and Regulatory | |
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance | Complies to China end EU RoHS |
| Laser Classification | Caution Laser Radiation - Do not stare into beam; IEC 60825 Class 2 |
| Utilities | |
| Datalogic Aladdin | Datalogic Aladdin configuration program is available for download at no charge |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge. |
| Remote Host Download | Lowers service costs and improves operations |
