● 2D Imager Barcode Scanner
● Wifi and Bluetooth Communication (With Setting)
● Data Transmission Range: Wifi: Max. 100 meter, Bluetooth: Max. 10 meter
● 0,01 mm (4 mil) Resolution
● 20 ~ 220 mm Scanning Distance
● Reading from LCD Display
| Operational | |

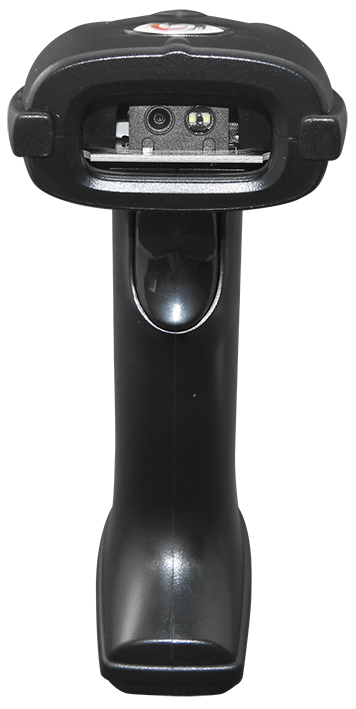

| Light Source | Illumination: White LED |
| Aiming: 622nm (±10 nm) Red LED | |
| CPU | MIPS @1 Ghz |
| Image Sensor | CMOS |
| Image Size | 640 x 480 Pixel |
| Supported Barcode Types | 1D (Linear) ve 2D (Imager) |
| Minumum Bar Width | 4 Mil |
| Scanning Distances | 20 - 220 mm (13 mil PCS %90) |
| Scensitivity | Roll:360° Skew:±65°, Pitch:±55° |
| Scan Speed | 30 fps/s |
| Scan Mode | Manual & Automatic |
| Memory capacity | Up to 520,000 characters (40,000 EAN 13 barcodes) |
| Communication | |
| Technology | Wifi And Bluetooth (With Settings) |
| Communication Mode | Wifi: 2,4 Ghz |
| Bluetooth: 4.0 | |
| Communication Distance | Wifi: Max. 100 meter (At open places) |
| Bluetooth: Max. 10 meter (At open places) | |
| Decoding Capability | |
| 1D | UPC-A, UPC-E, EAN-8, EAN-13, Code39, Codabar, Code128, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, UCC/EAN 128; Code 11, MSI, UK/Plessey, ISBN/ISSN, GS1 Databar Expanded, GS1 Databar, GS1 Databar Limited |
| 2D | QRCode, PDF417 ve Datamatrix |
| Electrical | |
| Battery Type | Litium Ion |
| Battery Capacity | 2200 mAh |
| Operating Current | Working mode: 110 mA |
| Static Mode : 35 mA (Stand by Mode: <1uA) | |
| Battery Life | Max. 16 Hours |
| Charging Method | With USB Cable Charge |
| Input Voltage | DC 5V |
| Charging Time |
Max. 4 ,5 Hours (With USB Cable Charge) |
| Physical | |

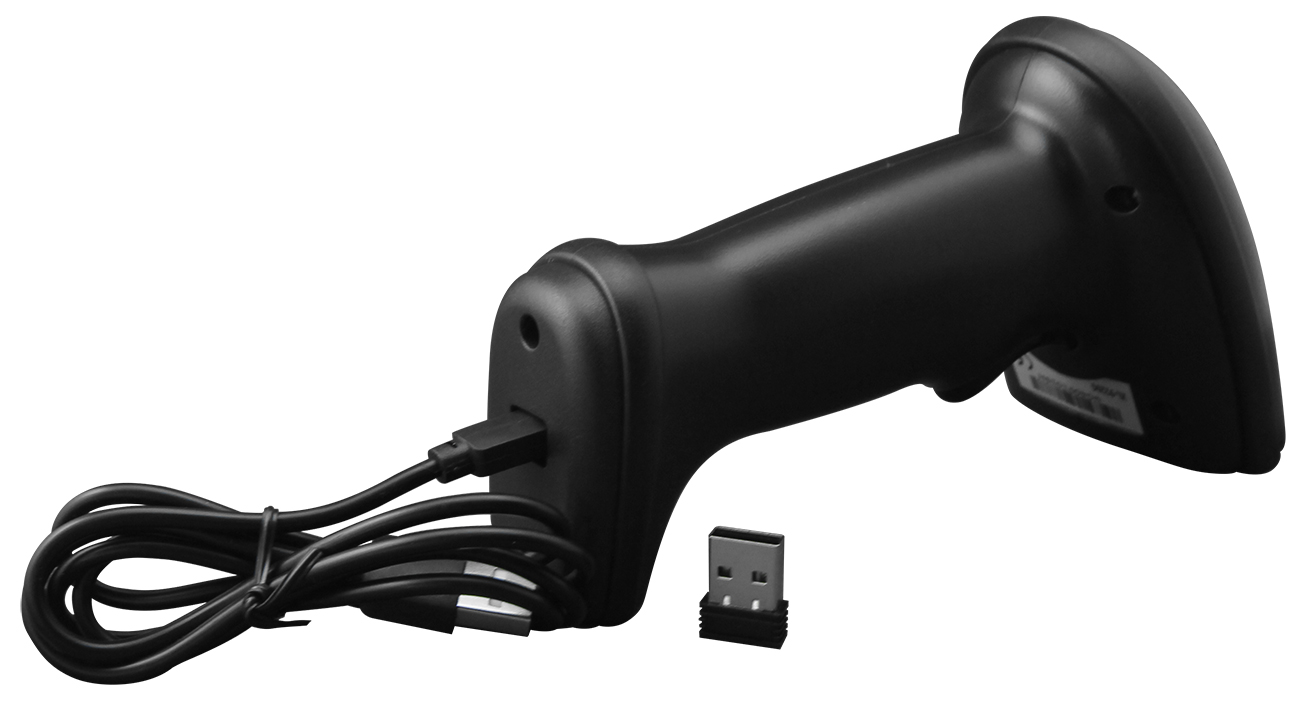

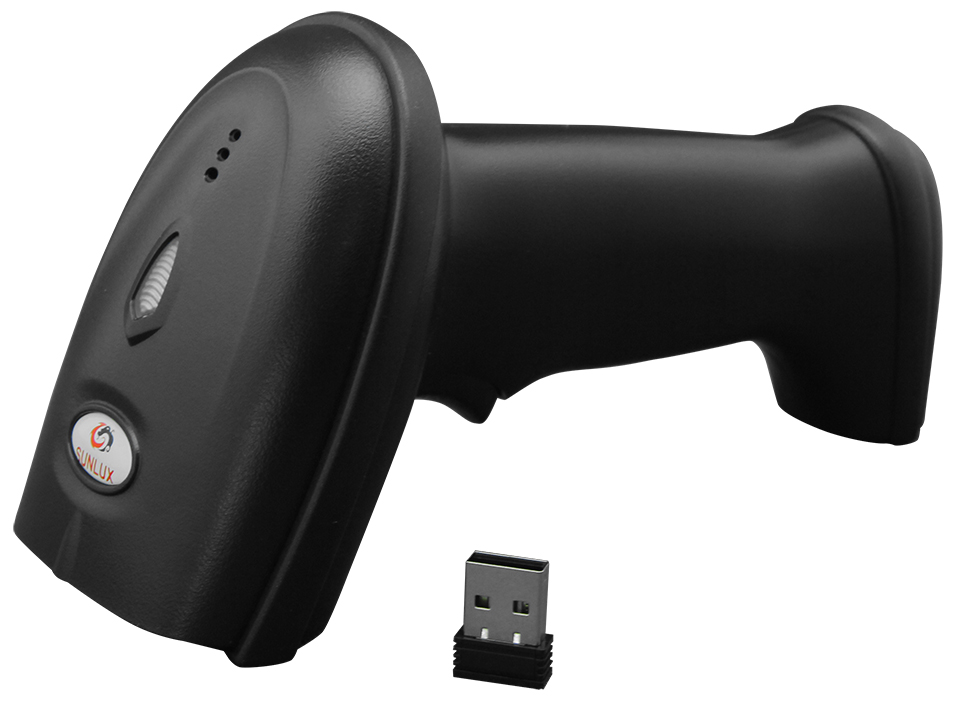

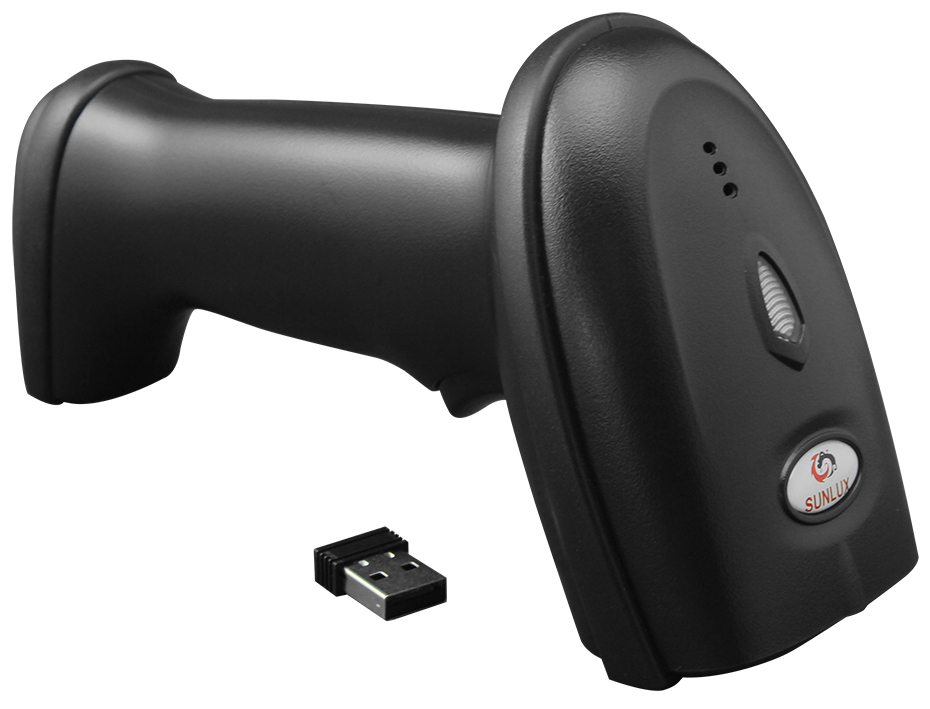

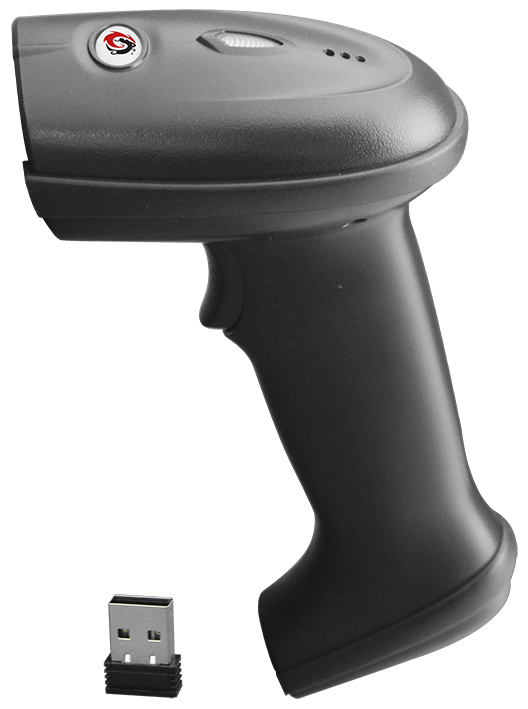

| Scanner | Length: 170 mm |
| Width: 73 mm | |
| Height: 102 mm | |
| Receiver | Length: 19 mm |
| Width: 14 mm | |
| Height: 6 mm | |
| Weight | 200 gram |
| Material | Abs + PC |
| Environmental | |
| Drop Durability | 1,5 meter |
| Illumination | 0 ~ 100.00 Lux |
| Operation temperature | -20 °C ~ 55°C |
| Storage temperature | -40 °C ~ 80°C |
| Humidty | %5 ~ %95 (Non Condensing) |
