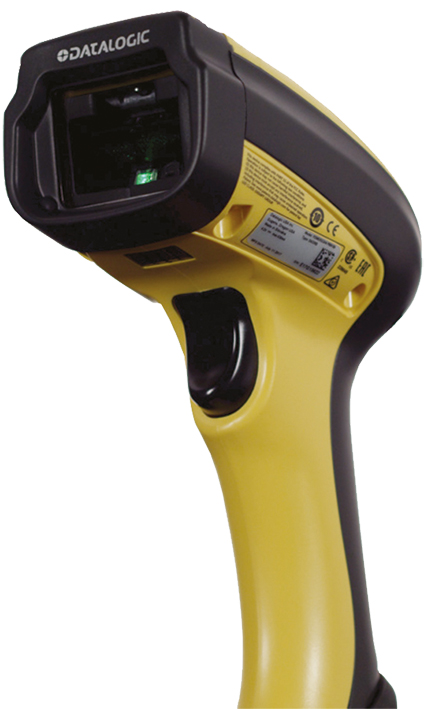

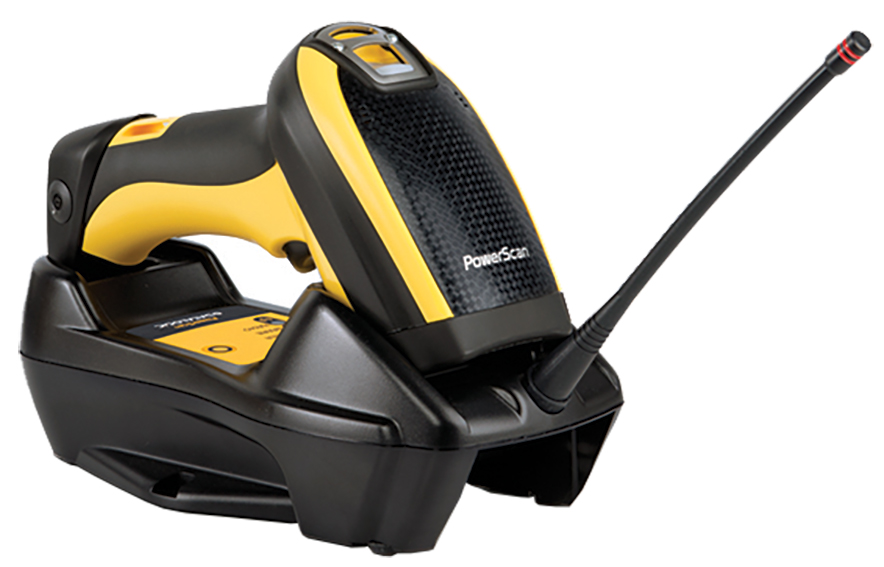

Datalogic PowerScan PM9100
Industrial Wireless Barcode Scanner



● Wireless Industrial Barcode Scanner
● Datalogic Star2® System Wireless Technology with up to 400 m
● Green laser-like scanning line
● Decodes 1D Codes
● 2,5 mil resolution
● Water and particulate sealing rating:IP65
● User replaceable Lithium-Ion battery
● Datalogic’s 3GL™ (Three Green Lights) and loud beeper for good-read feedback
● Drop resistance to 2.0 m
● Ability to work even at -20°C
● Multi Interface Support

 Cordless Communication
 Datalogic Star2 Cordless System Point to Point Configuration
Mult Point Configuration
Max. Readers per Radio receiver: 16
 Effective Radiated Power 433 MHz <10 mW
910 MHz <50 mW
 Radio Frequency 433 MHz or 910 MHz
 Radio Range (Open Air) 433 MHz: 50 m / 164 ft @ 500 KB/s
433 MHz: 100 m / 328 ft @ 19.2 KB/s
910 MHz: 50 m / 164 ft @ 500 KB/s
910 MHz: 400 m / 1,312 ft @ 36.8 KB/s, frequency hopping
910 MHz: 50 m / 164 ft at 36.8 KB/s, fixed channel
Seamless Roaming; Two Way Communications
 Decoding Capability
 1D Linear Barcodes GS1 DataBar™ linear codes, UPC/EAN, UPC/EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F
 Electrical
 Battery Battery Type: Lithium-Ion: 2150 mAh
Charge Time: External Power: 4 Hours, Host Power: 10 hours
Reads per Charge: 50,000 +
 Current Charging: External Power: Max. 10W (Charging)
POT:500mA (Charging)

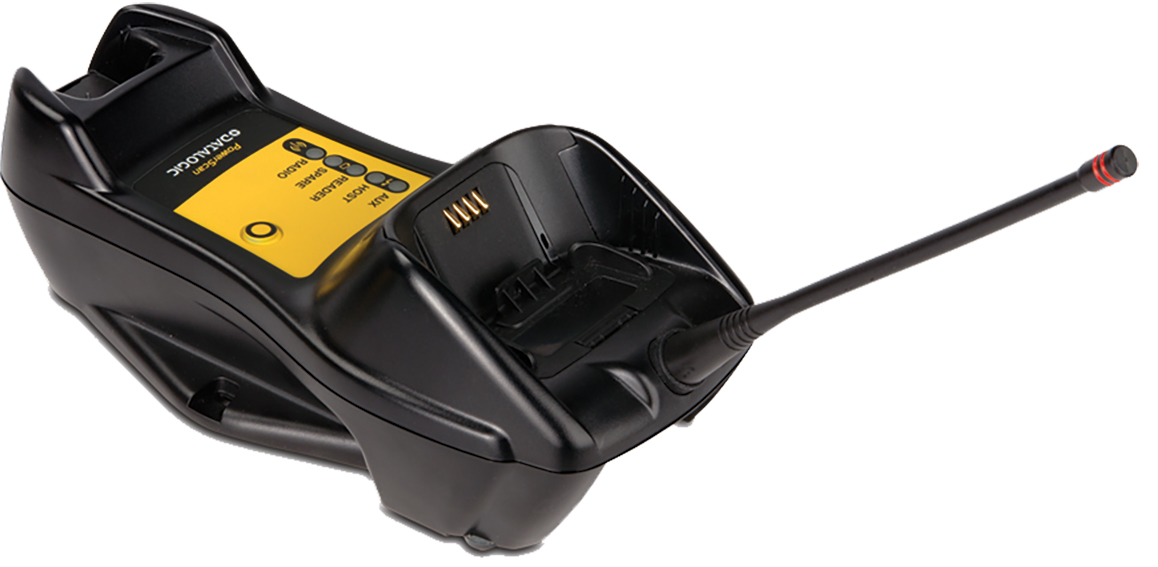

 Cradle Indicator LEDs RED: Battery Charging
Green: Charge Completed
Yellow: Power/Data
 Input Voltage External Power: 10-30 VDC; POT: 5 VDC +/- 10%
 Environmental
 Ambient Light Immune to light exposure in offices/facilities and direct exposure to sunlight.
 Drop Durability Withstands 50 drops from 2.0 m / 6.6 ft to concrete
 ESD Protection (Air Discharge) 20 kV
 Humidty 0 ~ 95% (Non Condensing)
 Charging temperature 0°C ~ 45°C
 Operation temperature -20°C ~ 50°C
 Storage temperature -40 °C ~ 70 °C
 Particulate and Water Sealing IP65
 Interfaces
 Supported Interfaces Keyboard Wedge; RS-232; RS-485; USB: OEM USB; USB COM; USB HID Keyboard; Optional Ethernet (Standard, Industrial)
 Physical Characteristics
 Color Yellow/Black
 Dimensions Cradle: 240 mm x 108 mm x 95 mm
Reader: 212 mm x 110 mm x 74 mm

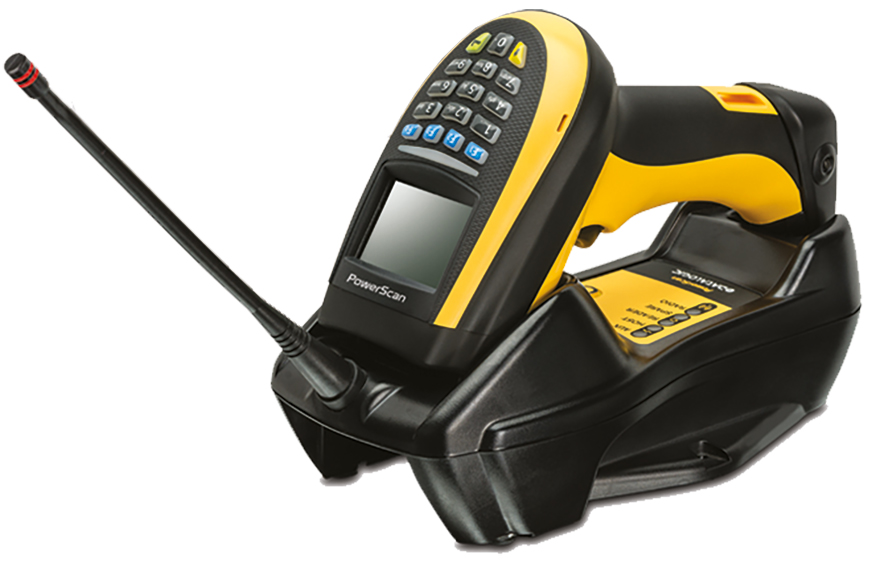

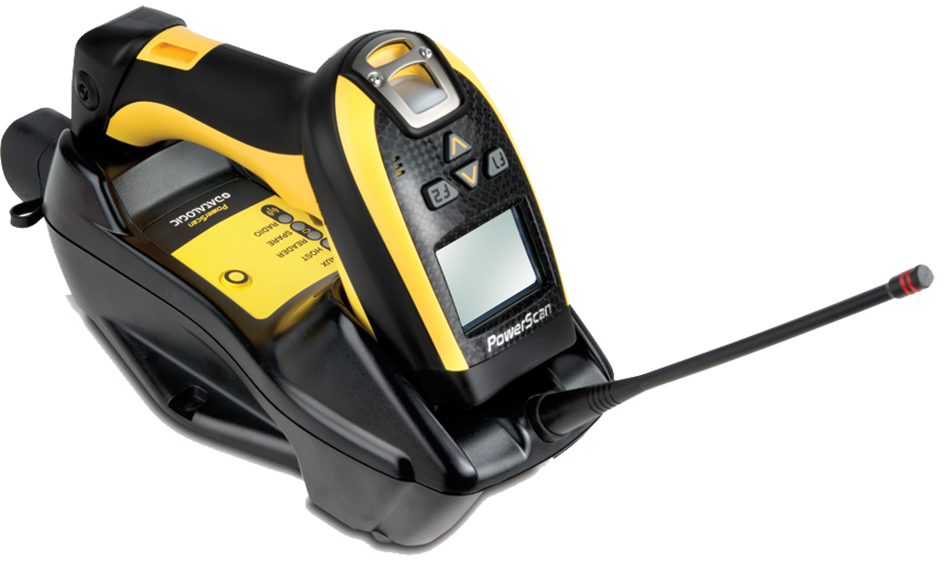

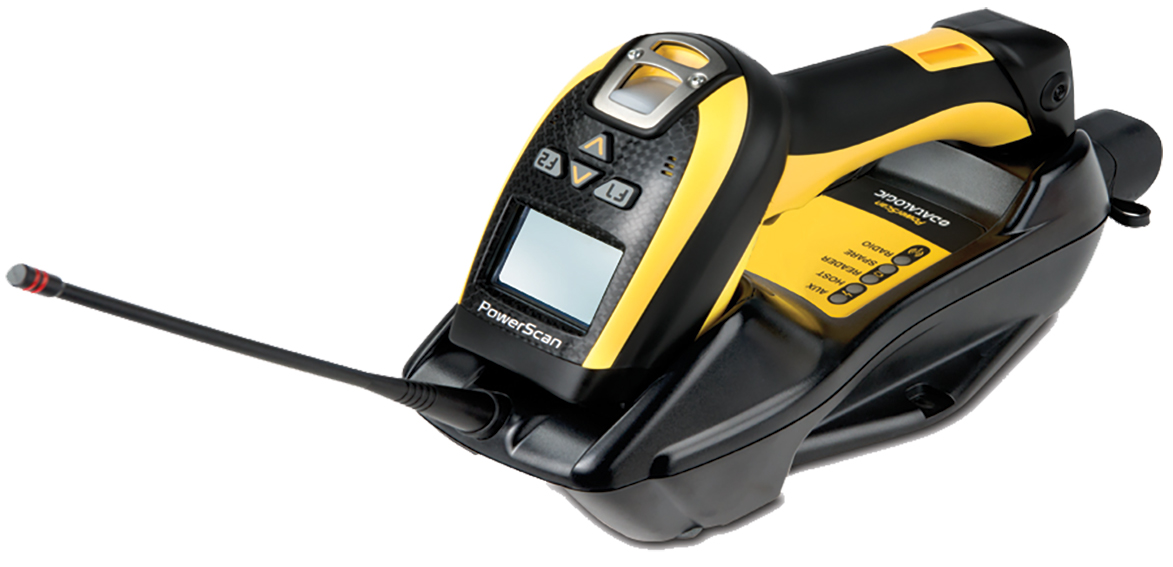

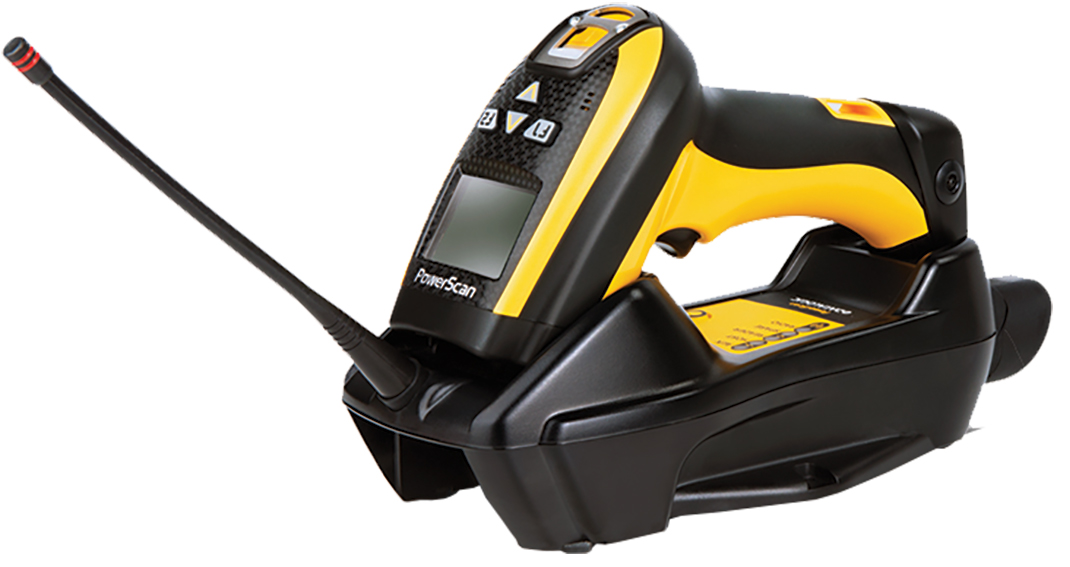

 Display PM9100-D, PM9100-DK: Display Type: Graphic with White
Backlight; Font Dimensions: User selectable
(6 lines x 21 columns default)
Screen Dimensions: 48 x 132 pixels
 Keypad PM9100-D: 4 Configurable Keys
PM9100-DK: 16 Configurable Keys
 Weight PM9100-XX: 405.0 g
PM9100-DXX / PM9100-DKXX: 435.0 g
 Reading Performance
 Light Source Green LED
 Print Contrast Ratio (Min.) 15%
 Reading Angle Pitch: +/- 75°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70°
 Reading Indicators Beeper; Datalogic Three Green Lights (3GL™) Good Read Feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs; Good Transmission
 Resolution (Maximum) 2.5 mils
 Scanning Distances
 Code 39 5 mil: 3 cm ~ 32 cm
7,5 mil: 2 cm ~ 48 cm
10 mil: 2 cm ~ 66 cm
20 mil: 3 cm ~ 110 cm
40 mil: 3 cm ~ 230 cm

EAN13

2 cm ~ 61 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China RoHS; Complies to EU RoHS
 LED Classification Product compliant according to IEC 62471
 Utilities
 Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge
 OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
 Remote Host Download Available on request
