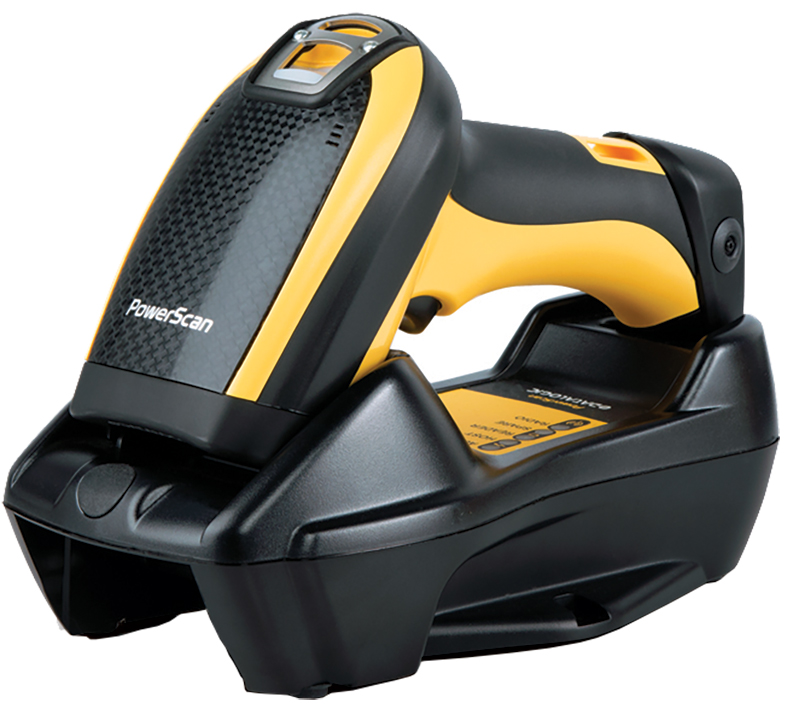

Datalogic PowerScan PBT9100
Industrial Wireless Barcode Scanner



● Industrial Wireless Barcode Scanner
● Bluetooth Communication
● Green laser-like scanning line
● Decodes 1D Codes
● 2,5 mil resolution
● Water and particulate sealing rating:IP65

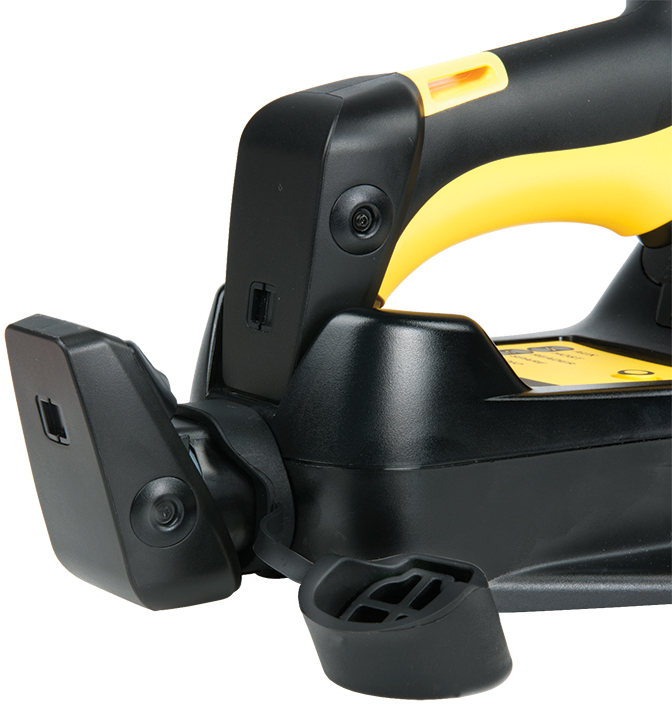

● User replaceable Lithium-Ion battery
● Datalogic’s 3GL™ (Three Green Lights) and loud beeper for good-read feedback
● Drop resistance to 2.0 m
● Ability to work even at -20°C
● Multi Interface Support

 Cordless Communication
 Bluetooth Wireless Technology Maximum number of devices per base station: 7
 Protocol Bluetooth 3.0 Certified Class 1
 Frequency 2,4 ~ 2,48 Ghz
 Radio Range (Open Air) Class 1: 100 m (328 ft)
 Profile HID (Human Interface Device)
SPP (Serial Port Profile)
 Security Data Encryption, Scanner Authentication
 Decoding Capability
 1D Linear Barcodes GS1 DataBar™ linear codes, UPC/EAN, UPC/ EAN P2/P5 add ons, UPC/EAN Coupons, ISBN, Code 128, EAN 128, Code 39, Code 39 Full ASCII, Code 39 CIP, Code 32, Codabar, Interleaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code 11, MSI, Plessey, Code 93, Follet 2/5, Code 4, Code 5, Datalogic 2 of 5, Codablock F
 Electrical
 Battery Battery Type: Lithium-Ion: 2150 mAh
Charge Time: External Power: 4 Hours, Host Power: 10 hours
Reads per Charge: 50,000 +
 Current Charging: External Power: Max. 10W (Charging)
POT:500mA (Charging)

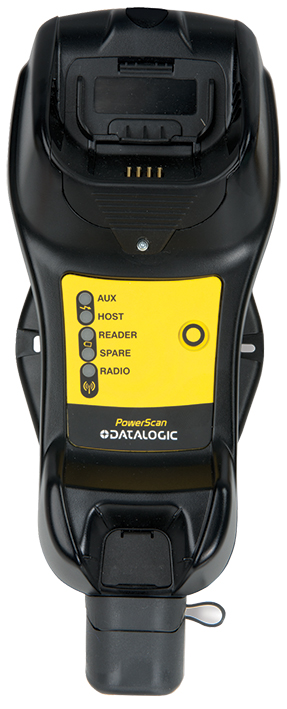

 Cradle Indicator LEDs RED: Battery Charging
Green: Charge Completed
Yellow: Power/Data
 Environmental
 Ambient Light Immune to light exposure in offices/facilities and direct exposure to sunlight.
 Drop Durability Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface
 ESD Protection (Air Discharge) 20 kV
 Humidty 0 ~ %95 (Non Condensing)
 Charging temperature 0°C ~ 45°C
 Operation temperature -20°C ~ 50°C
 Storage temperature -40 °C ~ 70 °C
 IP Standard IP65
 Interfaces
 Supported Interfaces Keyboard Wedge RS-232; USB: OEM USB; USB COM; USB HID Keyboard; Optional Ethernet (Standard, Industrial)
 Physical Characteristics
 Color Yellow/Black
 Dimensions Cradle: 240 mm x 108 mm x 95 mm
Reader: 212 mm x 110 mm x 74 mm
 Weight 380 gr
 Reading Performance
 Light Source Green LED
 Print Contrast Ratio (Min.) 15%
 Reading Angle Pitch: ±75°; Roll (Tilt): 45°; Skew (Yaw): ±70°
 Reading Indicators Beeper; Datalogic Three Green Lights (3GL™) Good Read Feedback; Datalogic ‘Green Spot’ on the Code; Dual Good Read LEDs; Good Transmission
 Resolution (Max.) 2,5 mils
 Scanning Distances
 Code 39 5 mil: 3 cm ~ 32 cm
7,5 mil: 2 cm ~ 48 cm
10 mil: 2 cm ~ 66 cm
20 mil: 3 cm ~ 110 cm
40 mil: 3 cm ~ 230 cm

EAN13

2 cm ~ 61 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China RoHS; Complies to EU RoHS
 LED Classification Product compliant according to IEC 62471
 Utilities
 Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge
 OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
 Remote Host Download Available on request
