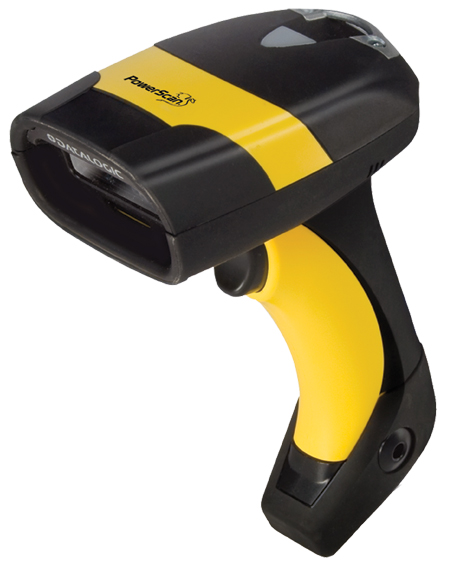

● Corded Industrial Barcode Scanner
● Decodes 1D and stacked codes
● 0,076 mm (3 mil) resolution
● Water and particulate sealing rating:IP65
● Drop resistance to 2.0 m
● Ability to work even at -30°C
● Datalogic 3GL™ and loud beeper for good read feedback
● Multi Interface Support
Decoding Capability | ||
1D Linear Barcodes | Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes | |
Stacked Codes | Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectiona | |
Electrical | ||
Input Voltage | 4 - 30 VDC | |
Current | Operating | D8330: 420 mA @4 VDC, 310 mA @5V, 62 mA @30V |
D8340: 500 mA @4 VDC, 370 mA @5V, 70 mA @30V | ||
Standby/Idle | 4 mA | |
Environmental | ||
Light Levels | Immune to light exposure in offices/facilities and direct exposure to sunlight | |
Drop Durability | 2 meter | |
ESD Protection (Air Discharge) | 20 kV | |
Humidty | Max: %90 (Non Condensing) | |
Operation temperature | -30°C ~ 50°C | |
Storage temperature | -30 °C ~ 50 °C | |
IP Standard | IP65 | |
Interfaces | ||
Supported Interfaces | Keyboard Wedge, RS-232, Undecoded Laser Output-Model D8340 Only, USB and Wand | |
Physical | ||
Dimensions | 207 mm x 114 mm x 69 mm | |
Weight | 295 gr | |
Color | Yellow/Black | |
Reading Performance | ||
Light Source | 630 - 680 nm VLD | |
Aiming: 630 - 680 nm VLD (Activated by ‘Double-Click’ Trigger) | ||
Read Rate | 35±5 Scan / Sec | |
Print Contrast Ratio (Min.) | 15% | |
Reading Angle | Pitch: 5 to 55° / -5 to -55°, Roll (Tilt): ± 20°, Skew (Yaw): ± 60° | |
Reading Indicators | Beeper; Datalogic Three Green Lights (3GL™) Good Read Feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs | |
Resolution (Max.) | D83X0: 0.076 mm (3 mils), D83X0 Auto Range: 0.190 mm (7.5 mils) | |
Scanning Distances | ||
Model: PD8300 | 5 mil: 21 mm ~ 133 mm | |
7,5 mil: 35 mm ~ 242 mm | ||
10 mil: 29 mm ~ 428 mm | ||
13 mil: 23 mm ~ 551 mm | ||
20 mil: 63 mm ~ 785 mm | ||
40 mil: 25 mm ~ 978 mm | ||
Model: PD8300 AR | 7,5 mil: 180 mm ~ 500 mm | |
10 mil: 180 mm ~ 850 mm | ||
15 mil: 150 mm ~ 1650 mm | ||
20 mil: 120 mm ~ 2100 mm | ||
40 mil: 180 mm ~ 3750 mm | ||
55 mil: 250 mm ~ 4850 mm | ||
Reflective-100 mil: 1,5 mt ~ 12,5 mt | ||
Safety and Regulatory | ||
Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. | |
Environmental Compliance | Complies EU RoHS | |
Laser Classification | Caution Laser Radiation - Do not stare into beam CDRH Class II IEC 60825-1 Class 2 | |
Utilities | ||
Datalogic Aladdin™ | Datalogic Aladdin configuration program is available for download at no charge |
