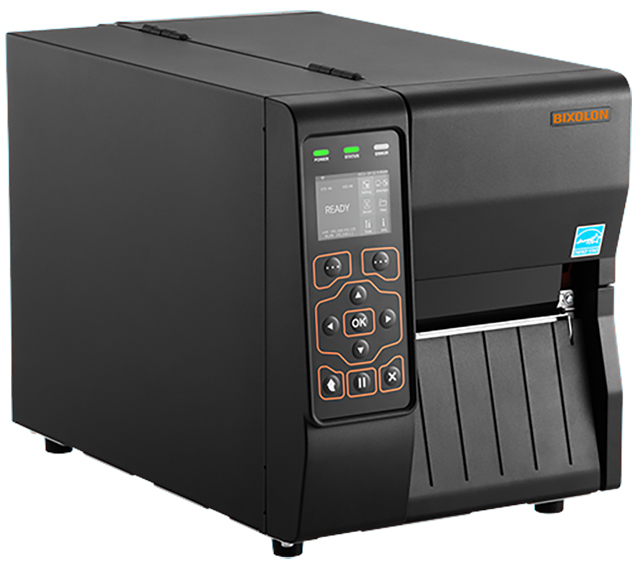

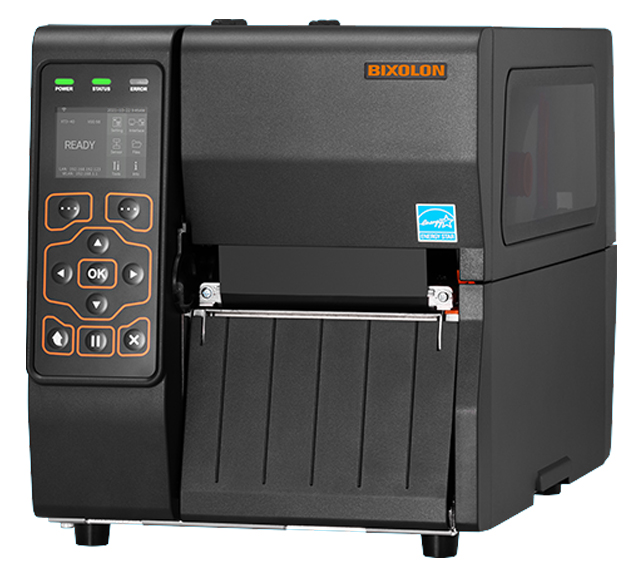

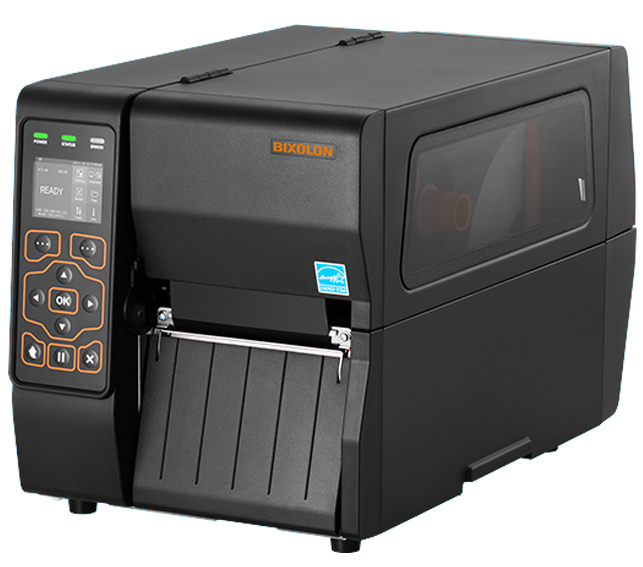

Bixolon XT3-40
Industrial Barcode Printer



● Direct Thermal and Thermal Transfer Printing
● 203 DPI Printing Resolution
● Max. 108 mm Printing Width
● Max. 4.000 mm Printing Length
● Max. 203 mm / Sec Printing Speed
● 128 MB SDRAM and 128 MB Flash ROM
● RS-232C, USB Client/Host and Ethernet Port
● SLCS, BPL-Z and BPL-E Emulation
● Support Windows Linux and MAC Operation Systems

 Operational
 Printing method Direct Thermal and Thermal Transfer
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed (Maximum) 203 mm/sec
 Printing length Max. 4.000 mm
 Printing width Max. 108 mm
 Memory 128 MB DRAM, 128 MB Flash ROM
 Interface RS-232C, USB Cient/Host and Ethernet
 Sensor Transmissive (Adjustable), Reflective (Adjustable), Head Open and Ribbon end
 Label
 Type Gap, Black Mark, Notch, Continuous, Fan-Fold
 Width 20 mm ~ 114 mm
 Thickness 0.06 ~ 0.2 mm
 Roll Inside diameter 25,4 mm ~ 76,2 mm
 Roll Outside diameter 203 mm (Maximum)
 Ribbon
 Type Wax, Wax/Resin and Resin
 Ink side Outside and Inside
 Width 40 mm ~ 110 mm
 Length 450 Meter (Maximum)
 Roll Inside diameter 25,4 mm (1 Inch)
 Physical
 Width 240 mm
 Height 276,7 mm
 Depth 430,5 mm
 Weight 9,3 kg
 Electrical
 Power Type External Power Cable (EnergyStar Certified)
 Power source (Input) 100V~240VAC, 50~60Hz
 Environmental
 Operation temperature 0°C ~ 40°C
 Storage temperature -20°C ~ 60°C
 Operation Humidty %10 ~ %80 (Non Condensing)
 Storage Humidty %10 ~ %90 (Non Condensing)
 Software
 Emulation SLCS™, BPL-Z™ and BPL-E™
 Drivers Windows Driver (Europlus/Seagull)
Linux / Mac CUPS Driver
Virtual COM USB/Ethernet Driver
OPOS Driver
SAP® Device Driver
 Software Bartender Ultralite for Bixolon
LabelArtist™-II
Network Auto Installer
Utility Program
 SDK Android / iOS / Windows SDK, Linux SDK, Xamarin SDK, Web Print SDK
 Applications Label Artist™ Mobile (Android, iOS),mPrint App (Android, iOS)
 MDM (Optional) BIXOLON Profile Manager -XPM™, XCM™ (Windows, Android)
 Fonts / Graphics / Symbologies
 Fonts 10 SLCS™ Resident Bitmap Fonts
One SLCS™ Resident Scalable Font
16 BPL-Z™ Resident Bitmap Fonts
One BPL-Z™ Resident Scalable Font
5 BPL-E™ Resident Bitmap Fonts
23 Code Page
Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
 Graphics Supporting user-defined fonts, graphics, formats and logos
 Supported Barcode Types
 1D Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI,Plessey, Postnet, GS1 DataBar (RSS-14),Standard 2-of-5, UPC/EAN extensions,UPC-A, UPC-E, IMB
 2D Aztec, Codablock, Code49, Data Matrix,MaxiCode, MicroPDF417, PDF417,QR Code, TLC39
 Accessories
 Optional Items Peeler, External Paper Supply
Turkish
 Data Sheets
 English
 Data Sheets
 Users Manual  Printer Users Manual
 NetWork Connection Manual
 Codepage Reference Manual
 SLCS Reference Manual
 Windows Driver  Bixolon Windows Driver
 Seagull Windows Driver
 Software  Bixolon Label Artist-II
 Seagull Bartender UltraLite
 SDK  Software Developement Kit (Windows)
 Software Developement Kit (Linux)
