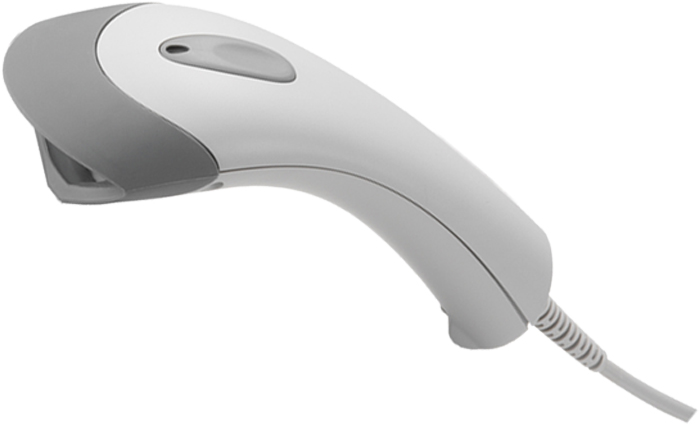

● 1D CCD barcode scanner
● Light weight, ergonomic design
● 100 scan per second
● 0,1 mm (4 mil) resolution
● 0 ~ 150 mm scanning distance
● USB, PS/2 and RS-232C interface options
● Readable under sun ligth
| Operational | |
| Light source | 660 nm visible red LED |
| Optical system | 2048 pixel CCD (charge-coupled device) |
| Depth of field | 150 mm (Code 39, 500 Lux, PCS=90%, 20 mils) |
| Scanning width |
95mm wide @ 55mm distance 50mm wide @ 10 mm |
| Scan Rate | 100 scans/sec |
| Minimum Bar Width | 4 mils (0.1mm) - Code 39, PCS=90 % |
| Print Contrast | 45% or more |
| Scanning angle | Pitch: Max 60° ,Yaw: Max 70° |
| Indicators (LED) | Green LED |
| Beeper Operation | 7 tones or no beep |
| System Interfaces | Keyboard, RS-232C and USB |
| Physical | |
| Length | 176 mm |
| Depth | 30 mm, 40 mm |
| Width | 40 mm, 67 mm |
| Weight | 90 gr (Stand excluded) |
| Cable | Standard 2 meter straight |
| Material | ABS Plastic |
| Electrical | |
| Input Voltage | 5VDC ± 0.25V |
| Power |
Operation: Max 750 mW Standby:150 mW |
| Operating Current |
Operation:150 mA @5.0V Standby: 30 mA @5.0V |
| EMC | FCC Class A, CE |
| Environmental | |
| Operation temperature | 0°C ~ 45°C |
| Storage temperature | -20 °C ~ 60 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Light Levels | Max. 20.000 Lux (fluorescence) |
| Drop Durability | Designed to with stand 1.5M drops |
| Supported Barcode Types | |
| Standart | UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Code 39, Code 39 with full ASCII, trioptic Code 39, Codabar (NM7), Code 128, Code 128 with full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 |
