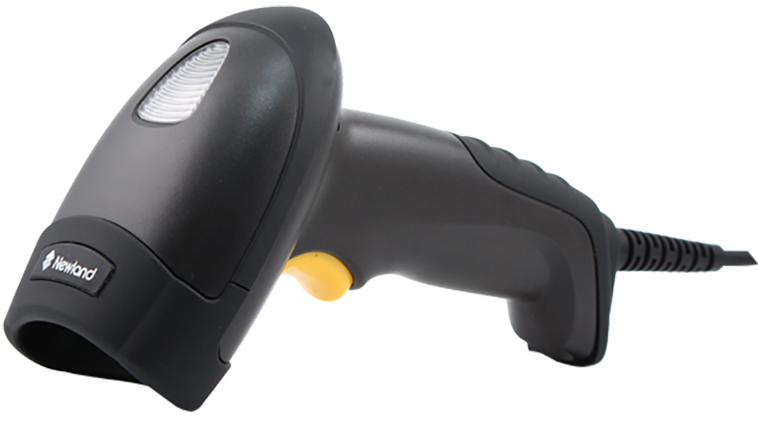

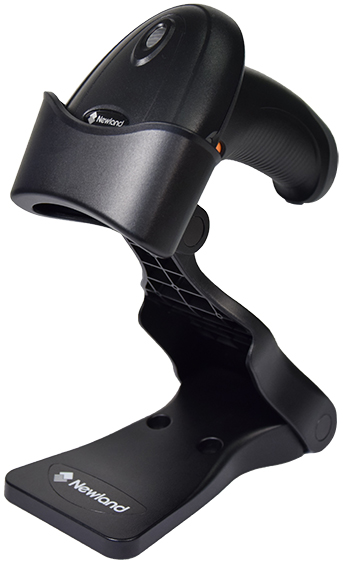

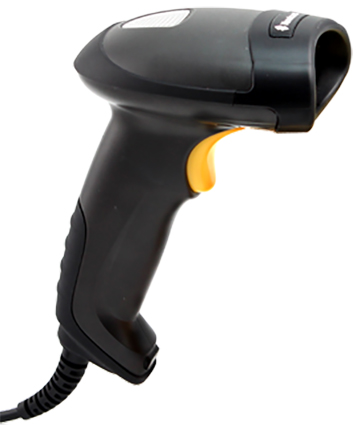

Newland HR1550-35
CCD Barcode Scanner


● 1D CCD barcode scanner
● Light weight, ergonomic design
● 300 scan per second
● 0,1 mm (4 mil) resolution
● 40 ~ 655 mm scanning distance
● PS/2, RS-232C and USB

 Light source 62 nm Red LED
 Optical Type CCD Linear Image
 Scan Rate 300 Scans/Sec
 Scanning angle 42°
 Minimum Bar Width 0,1 mm (4 mil)
 Indicators (LED) LED and Beep volume
 Print Contrast ≥%25
 System Interfaces PS/2, RS-232C ve USB
 Height 159 mm
 Length 113,5 mm
 Width 73 mm
 Weight 152 Gram
 Input AC 100~240V, 50~60Hz
 Output DC5V, ≥1.5A
 Operating temperature -10°C ~ 50°C
 Storage Temperature -20 °C ~ 60 °C
 Humidity %5 ~ %95 (non-condensing)
 Drop 1,5 m drop to concrete
 Sealing IP54
 ESD ±8 KV (contact discharge); ±12 KV (air discharge)
 Barcode Types
 Supported Barcode Types Code128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, PDF417, MicroPDF417
 Certifications FCC Part15 Class B, CE EMC Class B, CCC
