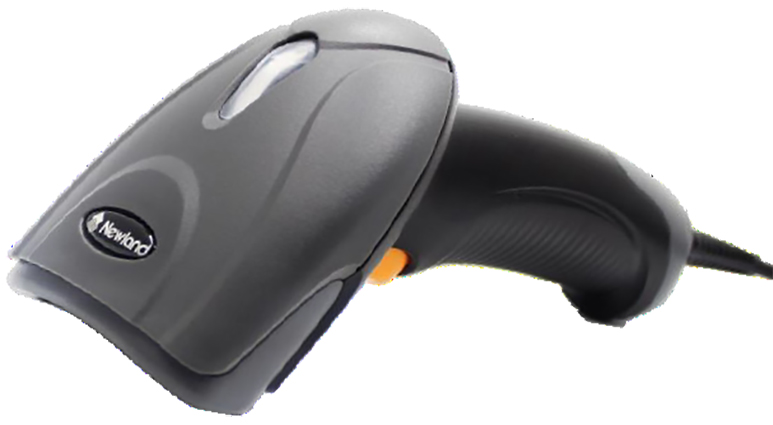

● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● 1D: 4 mil resolution
● IP42 Standard
● Schockproof to 1,2 meters
● RS-232C and USB Interfaces
| Performance | ||
| Image Sensor | 640 x 480 Pixel CMOS | |
| Light source | Illumination: White LED | |
| Aiming: 625 nm Red LED | ||
| Scanning angle | Pitch: ±45°; Roll: ±360°; Skew: ±40° | |
| Field of View | Horizontal 45°, Vertical 34° | |
| Resolution | 0.1 mm / 4 mil (1D Codes) | |
| Print Contrast | ≥%30 | |
| Interfaces | RS-232C and USB | |
| Physical | ||
| Length | 101 mm | |
| Width | 68 mm | |
| Height | 145 mm | |
| Weight | 115 Gram | |
| Electrical | ||
| Operating Voltage | 5VDC (± %10) | |
| Current | Standby: 33 mA | |
| Operation:62 mA (Max:115,5 mA) | ||
| Environmental | ||
| Operation temperature | -20 °C ~ 50 °C | |
| Storage temperature | -40 °C ~ 70 °C | |
| Humidty | %5 ~ %95 (Non Condensing) | |
| ESD | ±8 KV (contact discharge); ±15 KV (air discharge) | |
| Drop Durability | 1,2 meter | |
| IP Standard | IP42 | |
| Certifications | ||
| Certifications | FCC Part15 Class B, CE EMC Class B | |
| Scanning Capability | ||
| 1D Linear Barcodes | Code128, UCC/EAN-128, AIM 128, EAN-8, EAN-13, ISBN/ISSN,UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,Industrial 25, Standard 25, Code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, RSS-14, RSS-Limited, RSS-Expand | |
| 2D Codes | PDF417, DataMatrix, QR code, Chinese Sensible Code | |
| Scanning Distances | ||
| Scanning Distances | 1D | EAN-13 (13 Mil): 55 mm ~ 220 mm |
| 2D | QrCode (15 Mil): 35 mm ~ 110 mm | |
