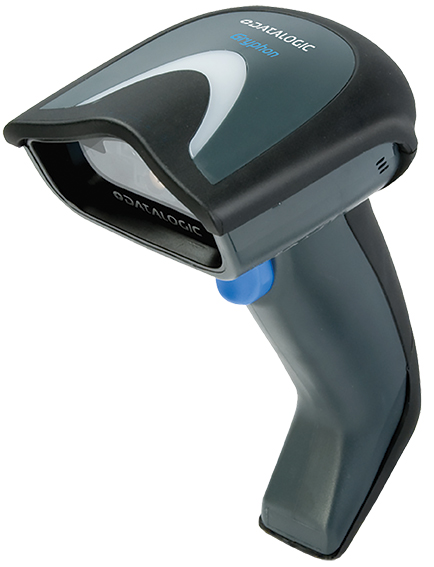

● 2D/Imager barcode Reader
● 400 Scan/Sec
● 0,1 mm (4 mil) Resolution
● 25 ~ 600 mm Scanning Distance
● IP42 Standart
● Schockproof to 1,5 meters
● USB Interface
| Reading Performance | |
| Imager Sensor | 752 x 480 pixel (Wide VGA) |
| Image Capture (Graphic format) | BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
| Light source | Aiming: 650 nm VLD |
| Motion Tolerance | 25 IPS |
| Print Contrast (Minimum) | 25% |
| Scan Angle | Pitch: +/- 40°; Roll (Tilt): 180°; Skew (yaw): +/- 40° |
| Indicators (LED) |
Beeper (Adjustable Tone);
Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
| Resolution | 1D Linear: 0.102 mm / 4 mils; Data Matrix: 0.178 mm / 7 mils; PDF417: 0.102 mm / 4 mils |
| Interfaces | |
| Interfaces | RS-232 / USB / Keyboard Wedge / Wand MultiInterface |
| Physical | |
| Height | 151 mm |
| Depth | 71 mm |
| Width | 10 mm |
| Weight | 195 gr (Without Stand) |
| Color | Black |
| Electrical | |
| AC Power requirements | 4.2 - 5.25 VDC |
| Power consumption | Operation Mode: 160 mA @5VDC |
| Standby Mode: 65 mA @5VDC | |
| Environmental | |
| Ambient Light | 0 ~ 100.000 Lux |
| Drop Resistance | Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface. |
| ESD Protection (Air Discharge) | 16 kV |
| Humidity | %5 ~ %95 (Non Condensing) |
| IP Standard | IP52 |
| Operation temperature | 0 to 50 °C / 32 to 122 °F |
| Storage temperature | -20 to 70 °C / -4 to 158 °F |
| Decoding Capability | |
| 1D Linear Barcodes | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Barcodes | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code |
| Postal Codes | Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| Stacked Codes |
EAn/JAn Composites; GS1 DataBar
Composites; GS1 DataBar Expanded
Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked
Omnidirectional; MacroPDF;
MicroPDF417; PDF417; UPC A/E Composites |
| Scanning Distances | |
| Scanning Distances (1D) |
Code 39: 5 mils: 4.0 to 19.0 cm
/ 1.6 to 7.5 in Code 39: 10 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in Data matrix: 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in Data matrix: 15 mils: 0 to 23.6 cm /0 to 9.3 in EAN-13: 13 mils: 1.5 to 40.0 cm / 0.6 to 15.7 in PDf417: 10 mils: 0.5 to 22.0 cm / 0.2 to 8.6 in Qr Code: 10 mils: 3.0 to 12.5 cm / 1.2 to 4.9 in |
| Safety and Regulatory | |
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. |
| Environmental Compliance | Complies to China end EU RoHS |
| Utility | |
| DataLogiC aLaDDin™ | Datalogic Aladdin configuration program is available for download at no charge. |
| oPos / JaVaPos |
JavaPOS Utilities are available
for download at no charge. OPOS Utilities are available for download at no charge. |
| Remote host DoWnLoaD | Lowers service costs and improves operations. |
