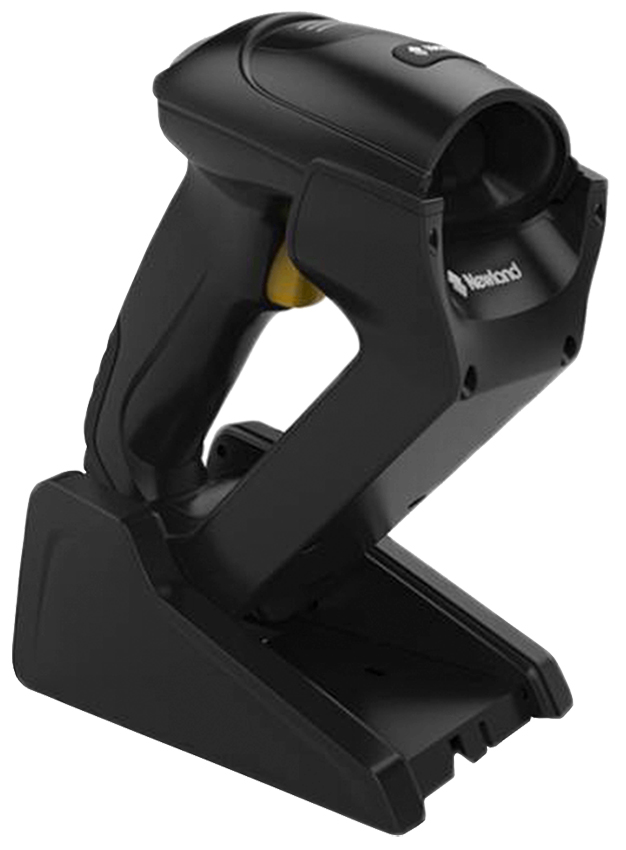

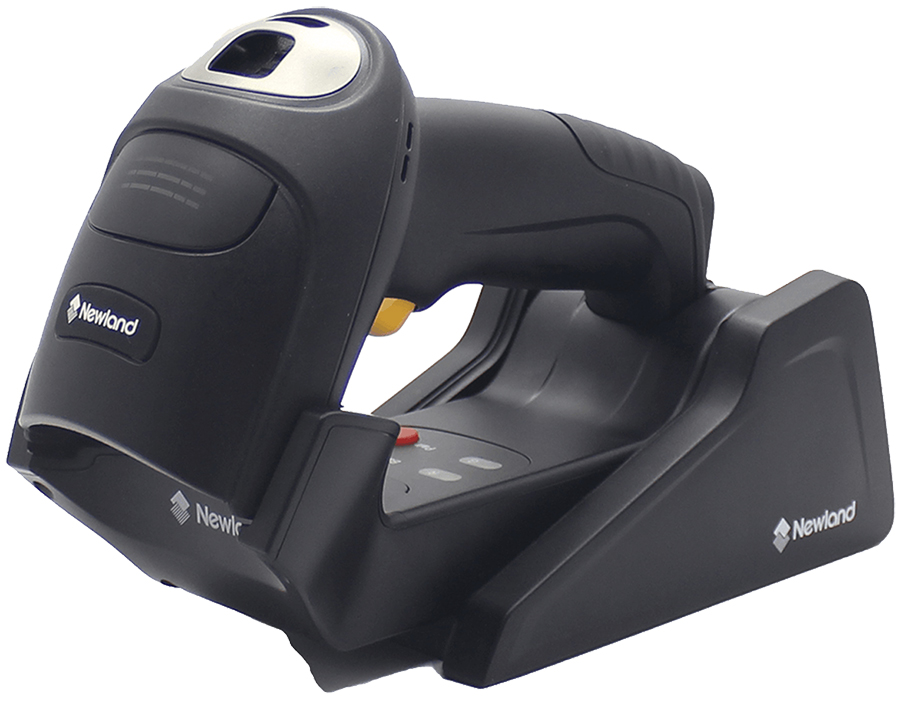

● 2D Imager Barcode Scanner
● 1280 x 800 Piksel Imager Sensor
● Wireless (Bluetooth 5.0) Communication
● Operate with a 50-meter data transmission range
● Schockproof to 1,8 meters
● RS-232C and USB Interface Options
Performance | ||
Imager Sensor | 1280 x 800 Pixel CMOS | |
Light source | Illumination: White LED | |
Aiming: 650 nm Laser Diod | ||
Motion Tolerance | Max. 50 cm/s | |
Scanning Angle | Pitch: ±55°; Roll: ±360°; Skew: ±55° | |
Field of View Horizontal | Horizontal: 48°, Vertical: 28° | |
Indicators (LED) | LED and Beep volume | |
Memory | 15.000 Pcs Code 128 (20 Byte of each Code 128) | |
Print Contrast | ≥%20 | |
Interfaces | RS-232C ve USB | |
Communication | ||
Radio Technology | Bluetooth 5.0 | |
Communication Distance | Max. 50 metre (Direct Line Of Sight In Open Air) | |
Operating Modes | Automatic Batch or Manual Batch | |
Physical | ||
Dimensions (Scanner) | Height: 172,5 mm | |
Width: 77,5 mm | ||
Length: 95,5 mm | ||
Weight (Scanner) | 227 Gram (Without Battery) | |
Electrical | ||
Input Voltage | 5V DC (±5%) | |
Battery Type | 2200 mAh Li-ion Battery | |
Expected Charge Time | ≤4 hours | |
Expected Battery Life | ≥12 hours of continuous operation (scan once per 6 seconds) | |
Environmental | ||
Operation temperature | -20°C ~ 50°C | |
Storage temperature | -40°C ~ 70°C | |
Humidty | %5 ~ %95 (Non Condensing) | |
ESD (Electro Static Discharge) | ±15 kV (air discharge), ±8 kV (direct discharge) | |
Drop | Scanner: 1.8m. Cradle: 1.0m | |
IP Standard | IP54 | |
Certifications | ||
Certifications | FCC Part15 Class B, CE EMC Class B | |
Decode Capabilities | ||
1D Barcodes | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey etc. | |
2D Barcodes | PDF417, QR Code, Data Matrix, Aztec, Maxicode etc. | |
Scanning Distances | ||
1D Barcodes | EAN-13 (13 Mil) | 30 mm ~ 550 mm |
Code 39 (5 Mil) | 90 mm ~ 230 mm | |
2D Barcodes | PDF417 (6,67 Mil) | 110 mm ~ 220 mm |
Datamatrix (10 Mil) | 100 mm ~ 220 mm | |
QrCode (15 Mil) | 30 mm ~ 370 mm |
