● Direct Thermal And Thermal Printing
● 203 DPI Printing Resolution
● Max. 108 mm Printing Width
● Max. 2540 mm Printing Length
● Max. 152 mm / Sec Printing Speed
● 32 MB DRAM and 16 MB Flash ROM
● PPLA, PPLB and PPLZ Support
● RS-232C, USB (A/B) And Ethernet Port
Print Specifications | |
Printing method | Direct thermal and thermal transfer |
Printing resolution | 203 DPI (8 dots/mm) |
Printing speed (Maximum) | 127 mm/sec |
Printing length | Max.2540 mm |
Printing width | Max. 108 mm |
Memory | 32 MB DRAM and 16 MB Flash ROM |
Proccessor | 32 Bit RISC proccessor |
Consumables Specifications | |
Sensors | Reflective sensor x 1 (movable) |
Transmissive sensor x 1 (Center fixed) | |
Media Type | Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper |
Media | Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm) 5”(127mm) OD on a 1” (25.4mm) ID core |
Ribbon | Ribbon width: 1”~4”(25.4mm~102mm), Ribbon length: Max. 300m. Core size ID 1”(25.4mm), Core width: 2.6”(67mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) |
Fonts & Symbologies | |
Fonts | Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font |
1D Barcodes | UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked |
2D Barcodes | QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode |
Graphics | PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI |
Emulation | PPLA, PPLB, PPLZ(Optional) |
Interface Characteristics and Integration | |
Operation Interface | LED Indicator x 2, Button(Feed) x 1 |

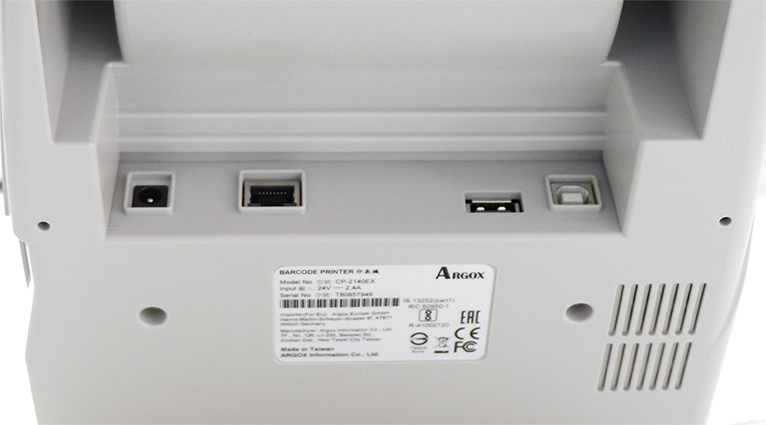

Communication Interface | Ethernet, USB device, RS-232, USB host |
Software-label Editing | Windows Driver for Windows Vista/Win7/Win8/Win10, BarTender® from Seaguall Scientific |
Software-Utility | Printer Utility, Font Utility |
Database Link | Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) |
Operating & Environment Characteristics | |
Power Source | Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A |
Operation Environment | Operation Temperature: 40°F~100°F (4°C~38°C), 10% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C) |
Agency Listing | CE, FCC, cULus, CCC, RoHS, BIS, BSMI, KC |
Physical Characteristics | |
Printer Dimensions | W 226mm x H 188mm x D 276mm |
Printer Weight | 4.6 lbs (2.1 kg) |
