● 1D Barcode Scanner
● Wireless (Bluetooth) Communication
● Max. 10 meter communication range
● 0,127 mm (5 mil) Resolution
● Windows, Android and IOS support
● Drop resistance to 1.5 m
● Buffer mode for out-of-range reading
| Optical & Performance | |
| Receiving Device | CCD Module |
| Light Source | Visible LED 625 nm |
| Max. Resolution | 0.127 mm (5 miles) |
| Scan Rate | 240 scans/second |
| Printing Contrast Scale | 30% Minimum |
| Sensor | Linear CMOS |
| Ambient Light | 10,000 Lux (Fluorescent Light) |
|
Reading
Distance (DOF PCS=90%) |
Code 39, 5 mil
: 15 mm ~ 60 mm Code 39, 13 mil : 30 mm ~ 140 mm Code 39, 20 mil : 35 mm ~ 185 mm |
| Functionality | |
| Symbologies | UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar. |
| Configuration Method | Configuration barcodes |
| Electrical | |
| Operation Voltage | 3.7VDC ± 5% |
| Current Consumption | Operation mode:<150mA |
| Standby mode:<65mmA | |
| Battery Type | Lithium-Ion |
| Battery Duration | 5000 reads/charge |
| Memory | 2 MB (20.000 Barcodes) |
| Mechanical | |
| Housing Material | ABS |
| Scanner Dimension | Height:20 mm, Width:30 mm, Length:72 mm |
| Scanner Weight | 30.2 gr |
| Environmental | |
| ESD Protection | Functional after 4KV Contact and 8KV Air |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 20% to 85% (Non Condensing) |
| Drop Test | 1.5 M |
| Communication | |
| Range | 10 mt ( line of sight) |

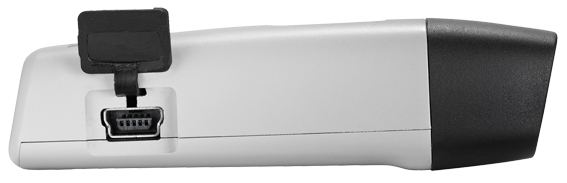

| Host Interface supported | Mini USB |
| Interface/Profile | SPP , HID |
| Wireless Class | Wireless Class 2 |
| Regulation Approvals | |
| Regulation Approvals | CE,FCC ClassB |
| Accessories | |
| Accessories | USB cable |
