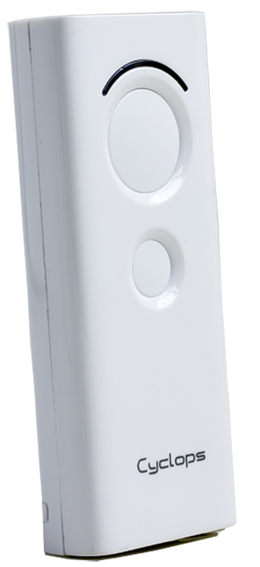

● 1D Barcode Scanner
● Support both HID and SPP connection

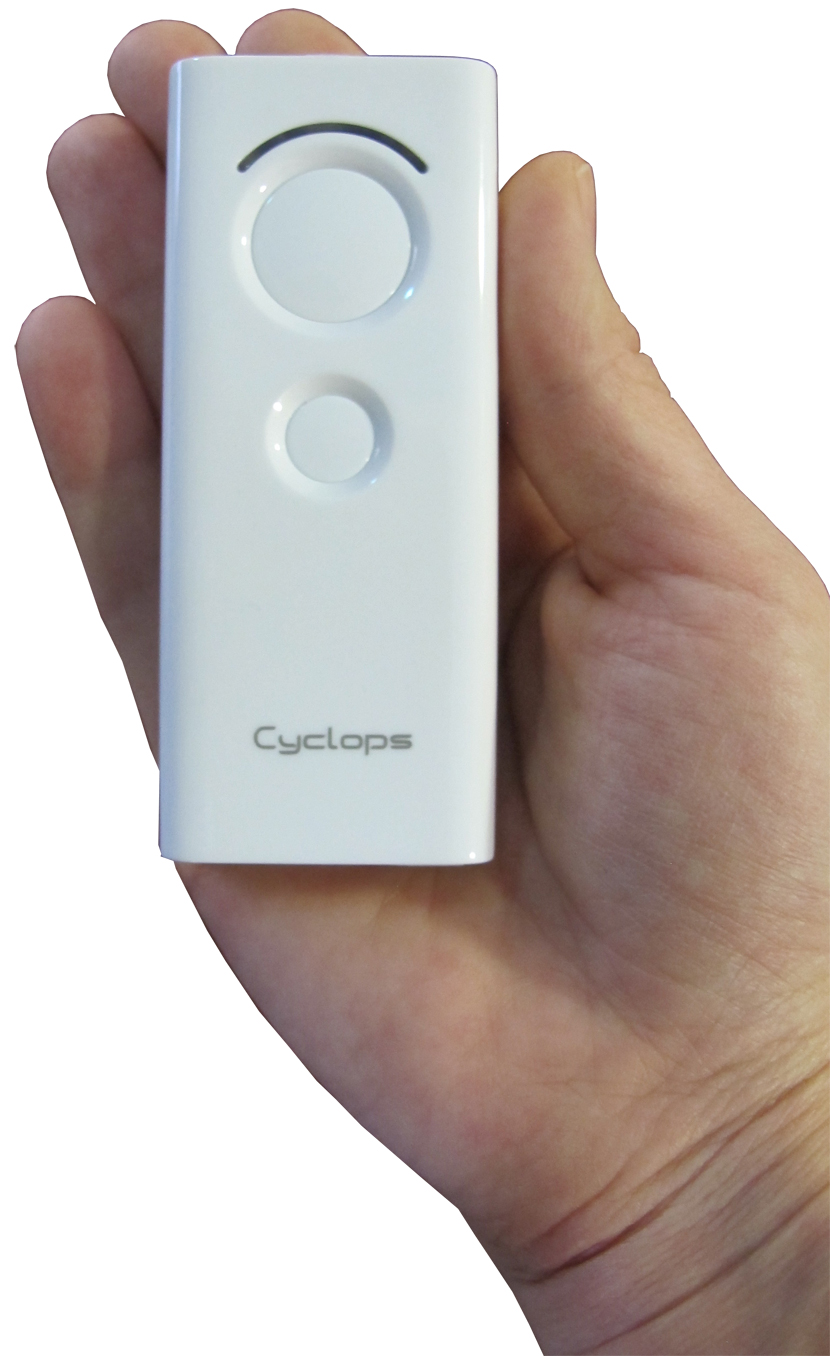

● Light Weight, Ergonomic Design
● Operate with a 10-meter data transmission range
● Windows, Android and IOS support
● 2MB Flash ROM for data storage in batch mode
● USB 2.0 Client Compatible
● Built-in RTC giving time-stamp on each scanned data
● IP 54 high-level industrial protection maximizing application reliability
| Operational | ||
| Optical system | Linear CCD Imager | |
| Sensor Resolution | 1500 pixel | |
| Light source | 625 nm visible red LED | |
| Minimum Bar Width | 0.127 mm (5 mil) | |
| Scan speed | 100 scans / sec | |
| Print Contrast | %20 (Minimum) | |
| Memory | 2 MB Flash ROM | |
| Keys | 3 Pcs (Scan, Function ve Reset) | |
| Software Supported | Windows, iOS (5.0 above) and Android (4.0 above) | |
| Communication | ||
| Communication Mode | Bluetooth | |
| Profile | SPP & HID | |
| Version | Ver.2.1+EDR Class2 | |
| Interface | Mini USB | |
| Working Range | Max. Up to 10 meter (depends on operating environment) | |
| Decoding Capability | ||
| Supported Barcode Types | 1D | UPC-A,UPC-A Add-on, UPC-E, UPC-E Add-on, JAN/EAN-13, JAN/EAN-13 Add-on, JAN/EAN-8, JAN/EAN-8 Add-on, Code128, Code39, NW-7 (Codabar) Interleaved 2 of 5(ITF), GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite CC-A/B Composite CC-C, Postal Codes |
| Electrical | ||
| Battery | 720 mAh Rechargable Litium-Ion | |
| Duration | 15000 Scan | |
| Physical | ||
| Width | 38 mm | |
| Height | 13,4 mm | |
| Length | 85 mm | |
| Weight | 50 gr (Battery Included) | |
| Material | ABS Plastic | |
| Environmental | ||
| Operation temperature | -10°C ~ 50°C | |
| Storage temperature | -25 °C ~ 60 °C | |
| Humidty | %5 ~ %95 (Non Condensing) | |
| Drop Durability | 2 meter (1 drop) and 1-meter (Tumble Drop 100-Cycle) | |
| EMC | BSMI / NCC / CE / FCC | |
