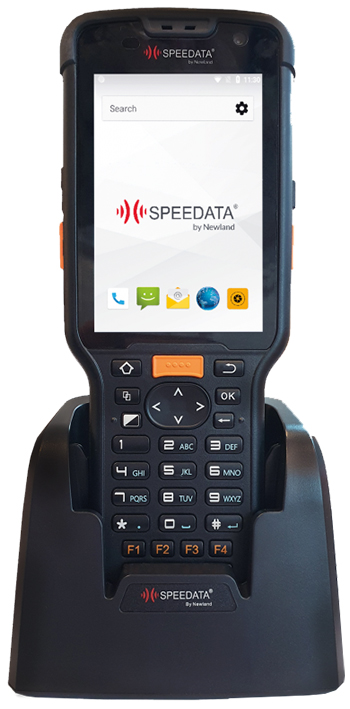

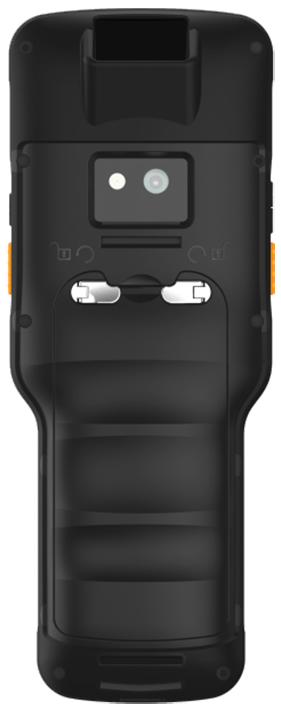

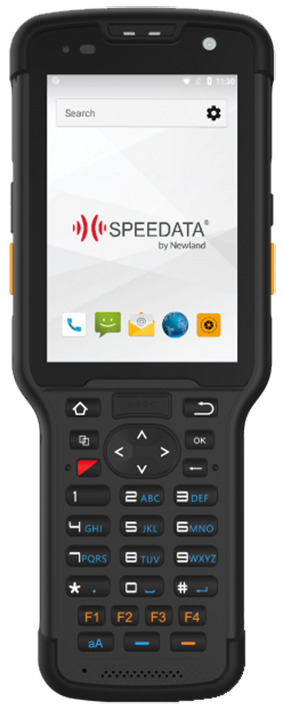

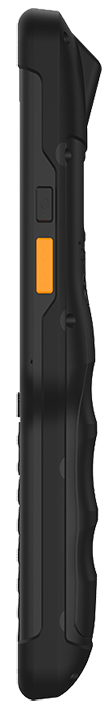

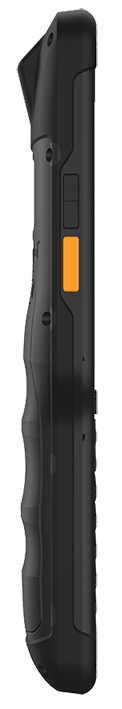

Speedata SD35
(Leo)
Android Handheld Terminal



● Android 8.1 Operation Systems
● Octa Core 2,0 Ghz Proccessor
● 2 GB RAM, 16 GB ROM
● 3.5 Inch Capacitive Touch Screen
● Wifi, Bluetooth, RFID/NFC Communication
● 1,5 mt Drop Resistance
● IP65 Protection Class

 Model  Operation System Wifi Bluetooth 4G GSM
 SD35  Android 8.1 (Oreo)  Yes  Yes  None None
System
 Micro Processor Octa Core 2,0 Ghz 64 Bit proccessor
 Memory 2 GB RAM, 16 GB Flash ROM
 Operation System Android 8.1 (Oreo)
 Notification Vibrator, Multi Color LED and Speaker
 Camera Rear: 13 megapixels, auto focus,high brightness LED flash
Front: 5MP FF
 Keypad 35 Pcs (Including side keys)
 Audio Front dual stereo speakers, volume 90db ± 3db (test distance 10cm)
 Expansion 2 Micro SIM card slots
1 Micro PSAM card slot
1 Micro SD card slot (up to 128 GB)
 Certificates CCC, CTA, CE, FCC
 Display
 Display Type WVGA
 Touch Screen Type Capacitive
 Dimension 3.5" (Inch)
 Resolutioin 960 x 640 Pixel
 Features 5 Point, IPS Highlight
 Barcode Scanner
 Type 2D Area Imager
 Optical System Imager
 Supported Barcode Types AZTEC, CODABAR, CODE11, CODE128, EAN128, CODE39, CODE49, CODE93, COMPOSITE, DATAMATRIX, EAN8, EAN13, INT25, MAXICODE, MICROPDF, PDF417, POSTNET, OCR, QR, RSS, UPCA, UPCE, ISBT, BPO, CANPOST, AUSPOST, IATA25, CODABLOCK, JAPOST, PLANET, DUTCHPOST, MSI, TLC39, TRIOPTIC, CODE32, STRT25
 Communication
 USB Type-C (OTG)
 Wifi Frequency: 2.4 GHz and 5 GHz
Protocol: IEEE 802.11 a/b/g/n/ac
 Bluetooth Bluetooth 4.1 BLE
 GPS GPS + BD + GLONASS
 RFID Supported Tags: ISO14443A/B, ISO15693
Reading Distance 0 ~ 5 cm
 Electrical
 Charging PE Fast Charging
 Main Battery 5200 mAh (Removable)
 Charge Time Max. 4 Hours
 Physical
Dimensions Width 70 mm
Length 184 mm
Thickness 29,8 mm
Weight 290g (including battery)
 Enviromental
 Operating temperature -20°C to 60°C
 Storage temperature -30°C to 80°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±15 kV (Air Discharge), ±8 kV (Direct Discharge)
 Drop 6 sides can withstand the impact of 1.5 meters drop to concrete
 Sealing IP65
 Accessories
 Accessories
(Optional Items)
USB Cable
Single Cradle
Battery
AC Adapter

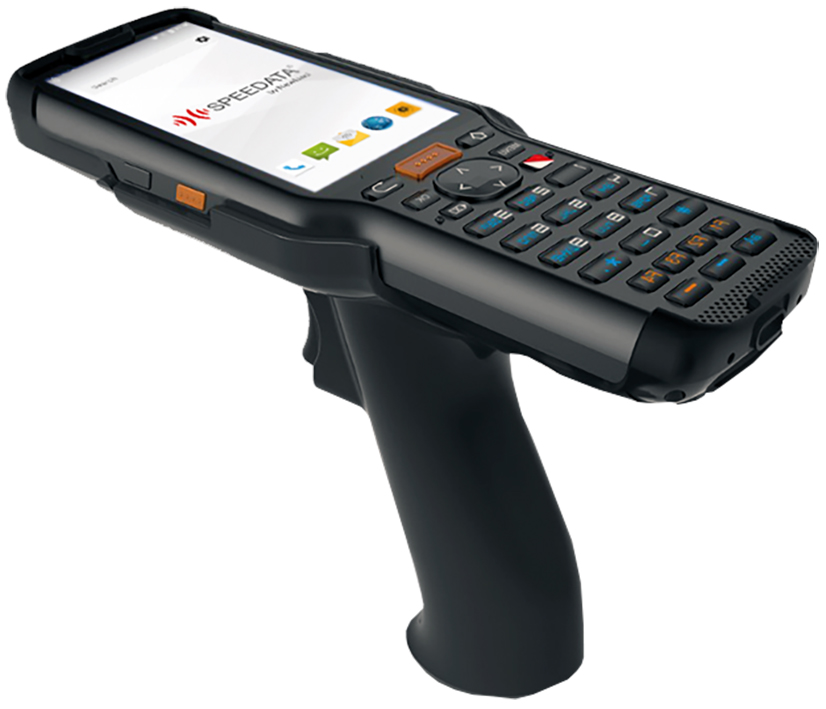

Pistol Grip
