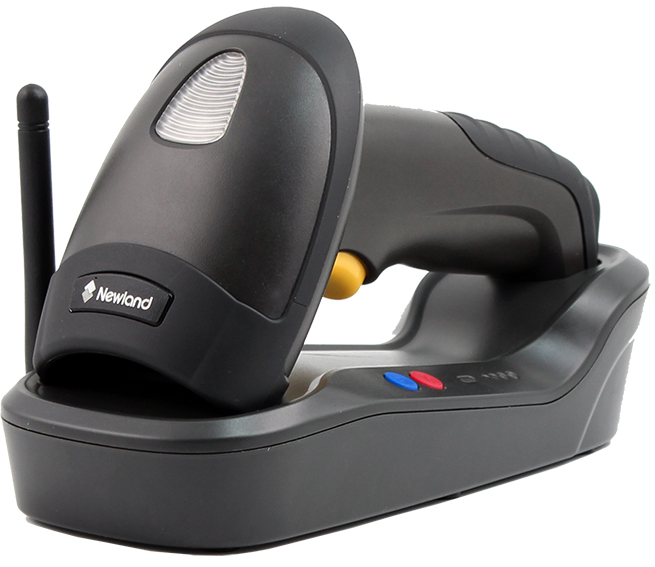

Newland HR1550-CE
1D Wireless Barcode Scanner



● 1D CCD Barcode Scanner
● Wireless (Zigbee) Communication
● Operate with a 50-meter data transmission range
● 300 scans per second
● 0.1 mm (4 Mil) resolution
● RS-232C and USB Interface Options

 Performance
 Imager Sensor Linear Image
 Light source 620 nm Visible Red LED
 Memory Flash 15.000 pcs Code 128 (20 byte of each code 128)
 Scan Rate 300 Scans/Sec
 Scanning angle Pitch: ±55°; Roll: ±30°; Skew: ±75°
 Minimum Bar Width 0.1 mm (4 Mil)
 Indicators (LED) LED and Beep volume
 Print Contrast ≥%15
 Interfaces RS-232C ve USB
 Communication
 Operating Modes Synchronous, Asynchronous and Batch modes
 Radio Technology 2.4 to 2.4835 GHz ISM Band, Zigbee technology
 Communication Distance ≥50 metre
 Data Rate 20-250 KBps
 Physical
 Dimensions (Scanner) Height: 159 mm
Length: 113,5 mm
Width: 73 mm
 Dimensions (Cradle) Height: 47 mm
Length: 195 mm
Width: 82,5 mm
 Weight (Scanner) 210 Gram (Without Battery)
 Weight (Cradle) 150 Gram
 Electrical
 Power Adaptor (Optional) Input: AC100~240V, 50~60Hz
Output: 5VDC, 1,5A
 Battery Type 2200 mAh Li-ion Battery
 Charging Time Around 3.5 hours for full charge
 Number of Scans 60,000 scans per charge
 Environmental
 Operation temperature -10°C ~ 50°C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD Protection (Air Discharge) ±8 KV (Contact discharge); ±12 KV (Air discharge)
 IP Standard IP52
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Decode Capabilities
 Barcode Types Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, PDF417 (max. 255 bytes), Micro PDF417 (max. 255 bytes)
