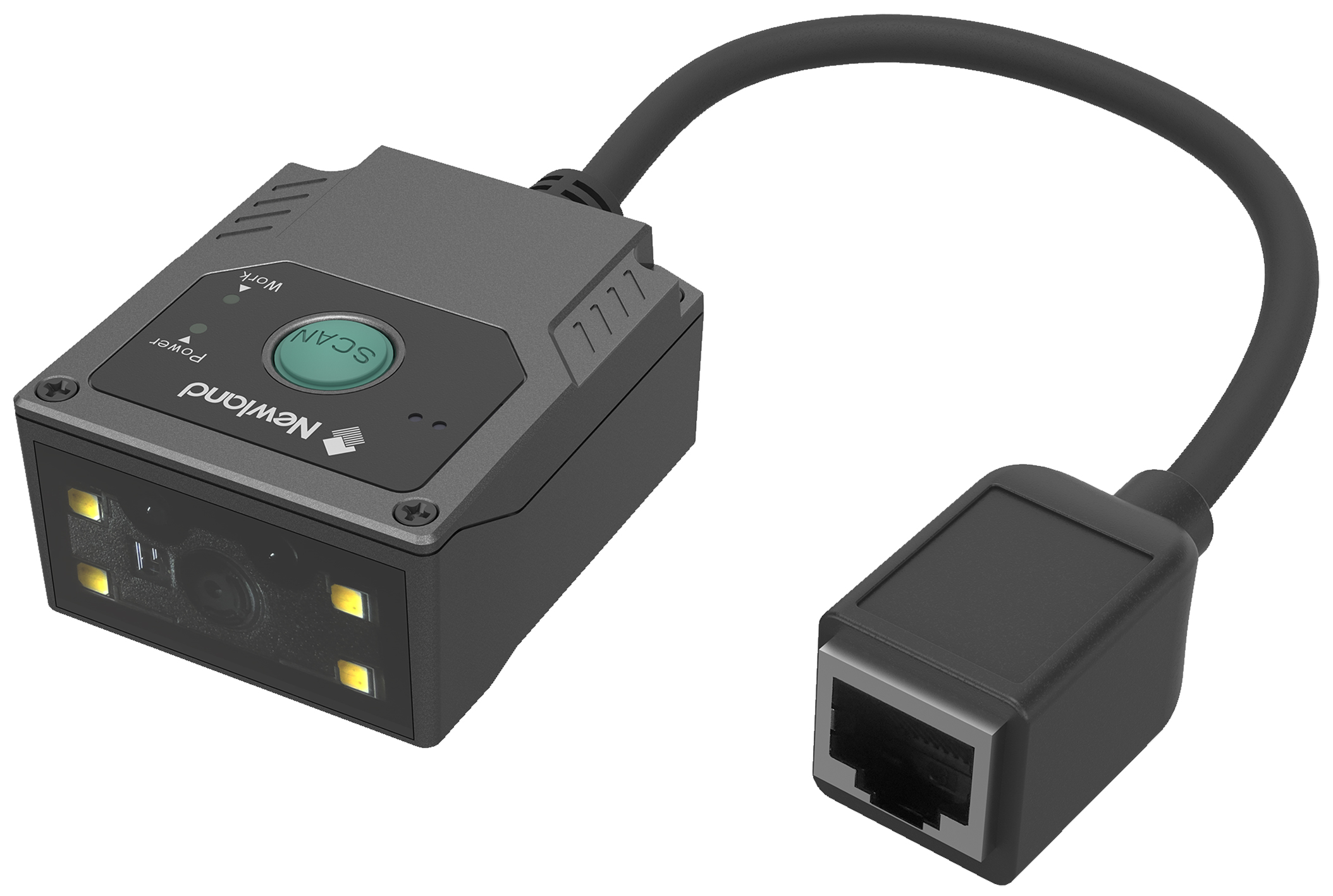

Newland FM430
(Barracuda)
2D Module Barcode Scanner



● 1D/2D Barcode Reader
● Support 1D and 2D Barcodes
● 1280 x 800 Pixel Sensor
● 1D:3 mil resolution
● Easy to install
● 75 Gram Weight
● RS-232 and USB Interfaces

 Performance
 Image Sensor 1280 x 800 Pixel CMOS
 Light Source Illumination: White LED
Aiming: Red Laser Or Green LED
 Minimum Bar Width ≥ 3 mil
 Sensitivity Pitch: ±55°; Roll: ±360°; Yaw: ±55°
 View Angle Horizontal: 75°, Vertical: 50°
 Print Contrast ≥%25
 Depth of Scan Field 40 mm - 360 mm
 Notification LED And Beeper
 Supported Interfaces RS-232 and USB
 Physical
 Width 41,5 mm
 Depth 49,5 mm
 Height 24,3 mm
 Weight 75 Gram
 Electrical
 Voltage DC 5V (±%5)
 Power Consumption Max. 1622mW
 Current Working: 276,8 mA (Max:322,7 mA)
Idle: 1mA
 Environmental
 Operation temperature -20°C ~ 60°C
 Storage temperature -40°C ~ 70°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±14 kV (air discharge), ±8 kV (direct discharge)
 Drop Durability 1,5 Meter
 IP Standard IP54
 Certifications
 Certifications FCC Part15 Class, CE EMC Class B, RoHS, IEC60825, IEC62471, KC
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar,UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25,COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code16K
 2D Barcodes PDF417, QR Code, Data Matrix, Aztec, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One
