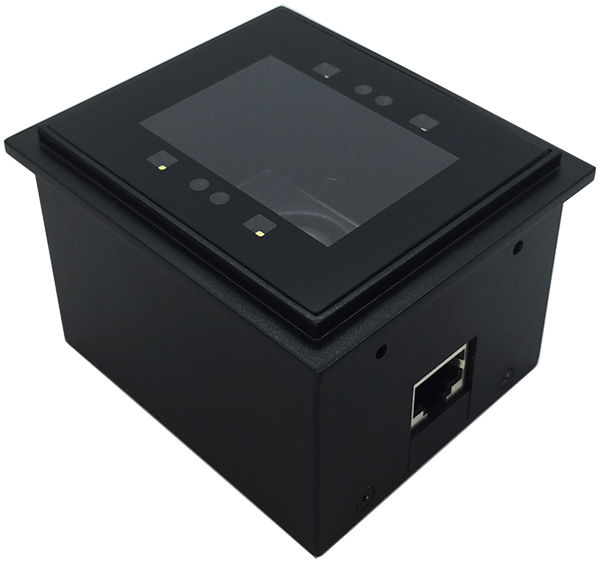

Newland FM3056
Fixed Mount 2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 752 x 480 Pixel Sensor
● 1D: 10 mil resolution
● Reading from LCD Screens
● Easy to install
● RS-232 and USB Interfaces

 Performance
 Processor IOTC 0370 CHIP
 Image Sensor 752 x 480 Pixel CMOS
 Light source White LED
 Resolution 1D Codes : 0,0127 mm (10 mil)
 Scan Mode Sense mode
 Indicators LED and Beep volume
 Field of View Horizontal: 75°, Vertical: 50°
 Print Contrast ≥%25
 Supported Interfaces RS-232 and USB
 Physical
 Width 78,7 mm
 Height 53 mm
 Depth 67,7 mm
 Weight 173 Gram
 Electrical
 Power Adaptor (Optional) Input: AC100~240V, 50~60Hz
Output: 5VDC (±5%)
 Operating Current 108 mA (Max. 114 mA) @5VDC
 Power Consumption Max. 534 mW
 Environmental
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±8 KV (air discharge), ±4 KV (direct discharge)
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
 2D Codes PDF417, QR Code, Data Matrix
