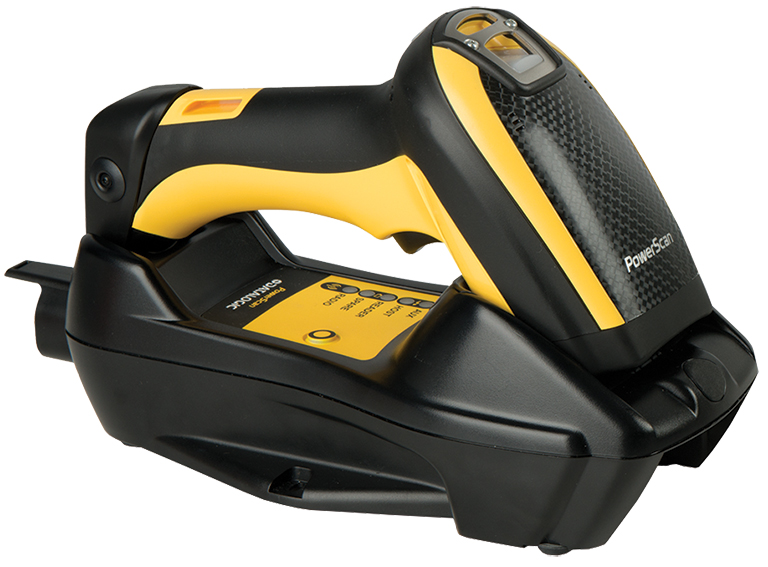

● Wireless Industrial Barcode Scanner
● Bluetooth® 3.0 Wireless Technology with up to 90 m
● Decodes 1D, 2D, Stacked Codes and Postal Codes
● 0,063 mm (2,5 mil) resolution
● Water and particulate sealing rating:IP65
● Lithium-Ion battery replaces in 3 seconds!
● Datalogic’s Motionix™ motion-sensing technology
● Soft white light illumination
● Intuitive aiming system
● Drop resistance to 2.0 m
● Ability to work even at -20°C
● Multi Interface Support
| Cordless Communication | ||
| Protocol | Bluetooth 3.0 Certified Class 1 | |
| Frequency | 2,4 ~ 2,48 Ghz | |
| Radio Range (Open Air) | Class 1: 90 m (295 ft) | |
| Piconet | Max. Readers per Radio Receiver Using Commercial Dongle: 7 | |
| Max. Readers per Radio Receiver Using Cradle: 4 | ||
| Profile | HID or SPP | |
| Security | Data Encryption, Scanner Authentication | |
| Decoding Capability | ||
| 1D Linear Barcodes | Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes | |
| 2D Codes | Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code | |
| Postal Codes | Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Portuguese Post, Postnet, Royal Mail Code (RM4SCC), Swedish Post | |
| Stacked Codes | EAN/JAN Composites, GS1 DataBar Composites,GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional MacroPDF, MicroPDF417, PDF417, UPC A/E Composites | |
| Electrical | ||
| Battery | Battery Type: Lithium-Ion: 2150 mAh | |
| Charge Time: External Power: 4 Hours, Host Power: 10 hours | ||
| Reads per Charge: 50,000 + | ||
| Current | Charging: External Power: 800 mA @ 10 VDC | |
| POT:500mA @ 10 VDC | ||
| Cradle Indicator LEDs | RED: Battery Charging | |
| Green: Charge Completed | ||
| Yellow: Power/Data | ||
| Input Voltage | 10 - 30 VDC, POT: 5 VDC +/- 10% | |
| Environmental | ||
| Light Levels | 0 - 100,000 lux | |
| Drop Durability | Cradle: 1,2 Meter, Reader: 2 Meter | |
| ESD Protection (Air Discharge) | 20 kV | |
| Humidty | Max: %95 (Non Condensing) | |
| Charging temperature | 0°C ~ 45°C | |
| Operation temperature | -20°C ~ 50°C | |
| Storage temperature | -20 °C ~ 70 °C | |
| IP Standard | IP65 | |
| Interfaces | ||
| Supported Interfaces | Keyboard Wedge RS-232, USB, OEM USB, USB COM, USB HID Keyboard, Optional Ethernet (Standard, Industrial) (Multi-Interface) | |
| Physical Characteristics | ||
| Color | Yellow/Black | |
| Dimensions | Cradle: 240 mm x 108 mm x 95 mm | |
| Reader: 212 mm x 110 mm x 74 mm | ||
| Weight | 380 gr | |
| Reading Performance | ||
| Imager Sensor | PBT9530: 864 x 544 Pixel | |
| PD9530-HP: 1280 x 1024 Pixel | ||
| Image Capture | Graphic Formats: BMP, JPEG, TIFF | |
| Greyscale: 256, 16, 2; JPEG, TIFF | ||
| Light Source | Aiming: 630 - 680 nm VLD | |
| Illumination: White LEDs | ||
| Print Contrast Ratio (Min.) | 15% | |
| Reading Angle | Pitch: ±40°; Roll (Tilt): 360°; Skew (Yaw): ±40° | |
| Reading Indicators | Beeper (Adjustable Tone and Volume), Datalogic Three Green Lights (3GL™) Good Read Feedback, Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs | |
| PBT9530: 1D: 0.1 mm (4 mils), 2D: 0.190 mm (7,5 mils) | ||
| Resolution (Max.) | PBT9530-HP: 1D: 0.063 mm (2,5 mils), 2D: 0.1 mm (4 mils) | |
| Scanning Distances | ||
| PBT9530 |
1D |
4 mil: 6 cm ~ 17 cm |
| 13 mil: 4 cm ~ 45 cm | ||
| 20 mil: 4 cm ~ 55 cm | ||
| 40 mil: 4 cm ~ 85 cm | ||
|
2D |
10 mil (PDF417): 2 cm ~ 25 cm | |
| 7,5 mil (Datamatrix): 9 cm ~ 12 cm | ||
| 10 mil (Datamatrix): 4 cm ~ 18 cm | ||
| PBT9530-HP | 2,5 mil: 2 cm ~ 6 cm | |
| 13 mil: 3 cm ~ 60 cm | ||
| 20 mil: 3 cm ~ 70 cm | ||
| 40 mil: 3 cm ~ 110 cm | ||
| 10 mil (PDF417): 2 cm ~ 30 cm | ||
| 4 mil (Datamatrix): 2 cm ~ 6 cm | ||
| 10 mil (Datamatrix): 2 cm ~ 20 cm | ||
| Safety and Regulatory | ||
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. | |
| Environmental Compliance | Complies to China RoHS, Complies to EU RoHS, Complies to R.E.A.C.H. | |
| Laser Classification | Caution Laser Radiation - Do not stare into beam, CDRH Class II, EN 60825-1 Class 2 | |
| LED Classification | IEC 62471 Class 1 LED | |
| Utilities | ||
| Datalogic Aladdin™ | Datalogic Aladdin configuration program is available for download at no charge | |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
|
| Remote Host Download | Available on request | |
