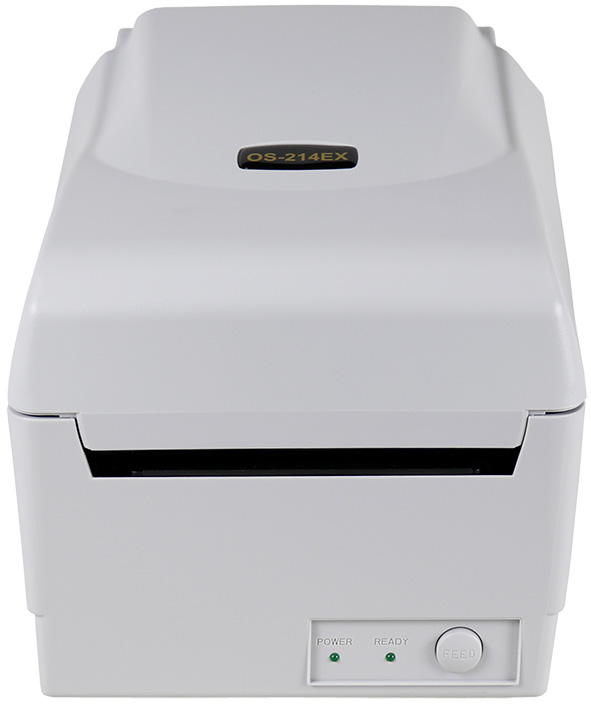

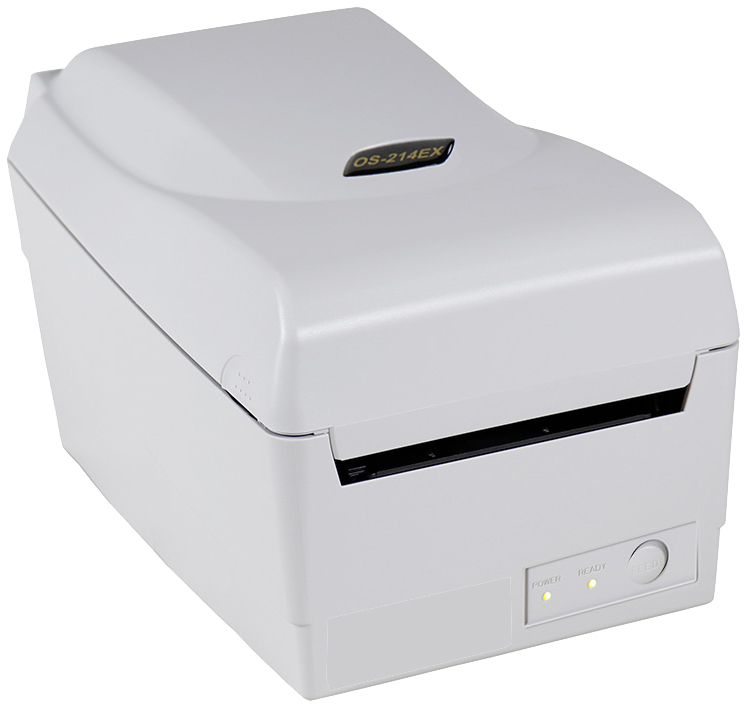

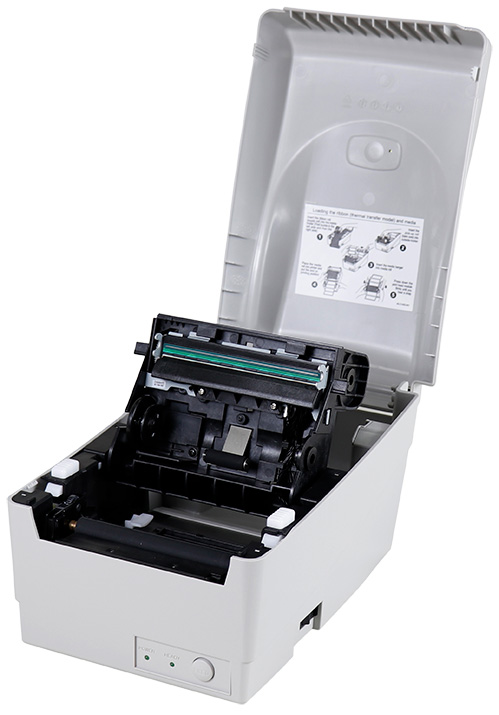

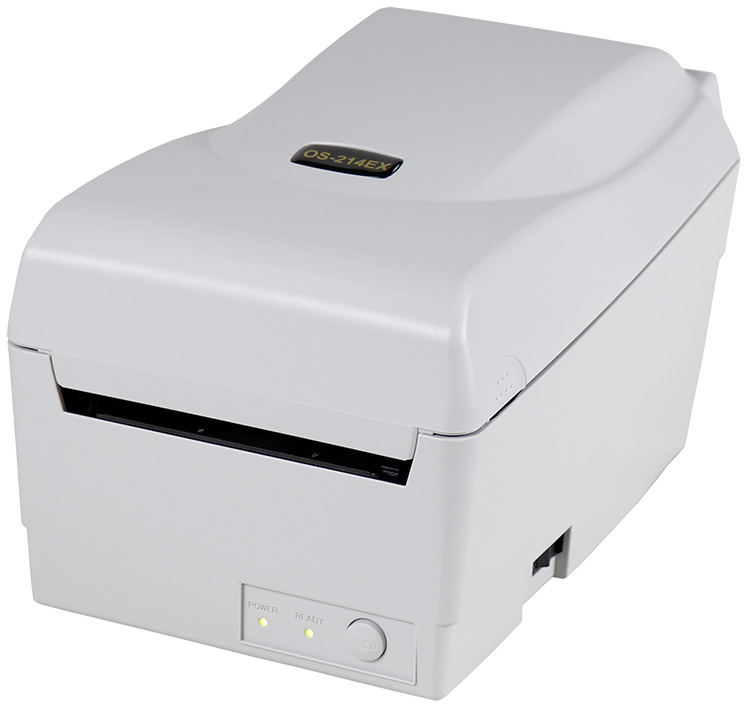

Argox OS-214EX
Desktop Barcode Printer





● Direct Thermal And Thermal Printing
● 203 DPI Printing Resolution
● Max. 108 mm Printing Width
● Max. 2540 mm Printing Length
● Max. 152 mm / Sec Printing Speed
● 32 MB DRAM and 16 MB Flash ROM
● PPLA, PPLB and PPLZ Support
● Tear off bar Built-in
● RS-232C, USB port and Ethernet Port

Operational
 Printing method Direct thermal and thermal transfer
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed (Maximum) 152 mm / sec
 Printing length Max: 2540 mm
 Printing width 25 mm ~ 1058mm
 Memory 32 MB DRAM, 16 MB Flash ROM
 Proccessor 32 bit RISC micro proccessor
 Operation interface 1 button (Feed) and 2 LED (Power and Ready)
 Communication interface RS-232C, USB and Ethernet
 Sensor Reflective (Fixed And Left Side)
 Print directions 0, 90, 180, 270 degree
 Agency listing CE, FCC, CCC and RoHS
 Physical
 Width 182,5 mm
 Height 173,5 mm
 Length (Depth) 282 mm
 Weight 1,54 kg
 Material ABS Plastic
 Electrical
 Power input type External Adaptor
 Power source (Input) 100V ~ 240V, 50 ~ 60Hz
 Power source (Output) 24VDC, 2.4A
 Environmental
 Operation temperature 4 °C ~ 38 °C
 Storage temperature -20 °C ~ 50 °C
 Humidty %0 ~ %90 (Non Condensing)
 Label
 Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper
 Width 20 mm ~ 110 mm
 Thickness 0.0635 ~ 0.254 mm
 Roll Inside diameter Standart: 12,7 mm (Optional: 25,4 mm or 38,1 mm)
 Roll Outside diameter 127 mm (Maximum)
 Ribbon
 Type Wax, Wax/Resin and Resin
 Ink side Outside
 Width 25,4 mm ~ 110
 Length 91 Meter (Maximum)
 Roll Inside diameter 12,7 mm
 Roll Outside diameter 37 mm (Maximum)
 Software
 Windows drivers Windows 2000/XP/2003/VISTA/Windows 7 / Windows 8 / Windows 8.1
 Label Design programs Bartender UltraLite (Free)
 Utility programs Printer Utility and Font Utility
 Supported barcode printing language PPLA, PPLB and PPLZ
Supported graphics formats PPLA: PCX, BMP, IMG, HEX and GDI
PPLB: PCX, Binary raster  and GDI
PPLZ: PPLZ: GRF,HEX ve GDI
 Supported Barcode Types
 1D PPLA: Code 39, Code 93,Code 128/subset A/B/C, Codabar, Interleaved 2 of 5, UPC A/E/2/5 add-on, EAN-13/8, UCC/EAN 128, Postnet, Plessey, Interleaved 2 of 5, Interleaved 2 of 5 with a modulo 10 checksum, Interleaved 2 of 5 with a modulo 10 checksum and shipping bearer bars , Code 128, UCC/EAN Code 128 Random Weight, HBIC, Telepen , FIM
PPLB: Code 39, Code 93, Code 128/ subset A,B,C, Codabar, Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit, Interleaved 2 of 5 with human readable check digit, Matrix 2 of 5, UPC A/E 2 and 5 add-on, EAN-8/13, Code 128UCC, UCC/EAN, Postnet
PPLZ:Code39, UPC-A, UPC-E, Postnet, Code128 subset A/B/C, Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, Code 93, Code 39 with check sum digit, MSI, EAN-8, Codabar, Code 11, EAN-13, Plessey, GS1 Data bar (RSS), Industrial 2 of 5, Standard 2 of 5, Logmars
 2D PPLA: PDF-417, MaxiCode, Data Matrix (ECC200 only) ,QR Code, Composite codes
PPLB: MaxiCode, PDF-417, QR Code, Composite codes
PPLZ: MaxiCode, PDF417,Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec, Micro PDF 417
 Accessories
 Optional Items Cutter
Dispencer
External Label Holder
 Turkish
 Data Sheets
 English
 Data Sheets
 Users Manual
 Seagull Windows Driver  Windows XP / 7 / 8 / 8.1 / Server 2003 / 2008, 2008R2 / 2012 (32 Bit & 64 Bit)
 Bartender UltraLite  Label Design and Printing Software
 Printer Utility  Printer Configuration Software
 Font Utility  Font Create / Download Software
 S.D.K  Software Developement Kit
