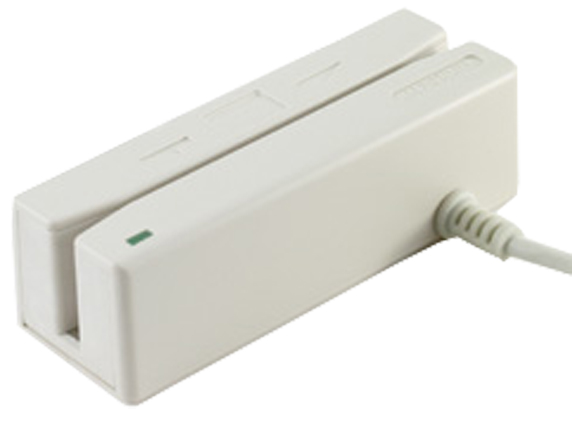

Zebex ZM-800 Magnetic Stripe Reader

Zebex ZM-800 Manyetik Kart Okuyucu

● Reads up to three tracks of information
● Clear beeper and LED indicators
● Reliable for a minimum of one million card swipes
● Serial Port (RS-232C) Interface
● User-friendly configuration software

 Operational
 Swipe Speed 3~60 inch/Second, Bi-Directional
 Magnetic Head Life 1.000.000 (Max)
 Indicators Tri Color LED and Beeper
 Card Swipe Direction Bi-Directional
 Recording Method Two-frequency coherent phase (F2F) compatible with ISO 7811, ANSI, AAMVA, and California DMV
 Track Number Maximum 3 tracks
 Slot Width 1,37 mm (0,040 Inch)
 Card Thickness 0.015 – 0.045 inches
 System Interface RS-232C (Optional: Keyboard and USB-HID)
 Physical
 Height 30,1 mm
 Depth 100 mm
 Width 34,8 mm
 Weight 198,5 gram
 Cable Standard 2M straight
 Electrical
 Input Voltage 5VDC ±%10
 Power Consumption 40 mA (maximum)
 EMC CE & FCC DOC compliance
 Environmental
 Operation temperature 0°C ~ 55°C
 Storage temperature -30 °C ~ 65 °C
 Humidty Maximum 95% non-condensing
