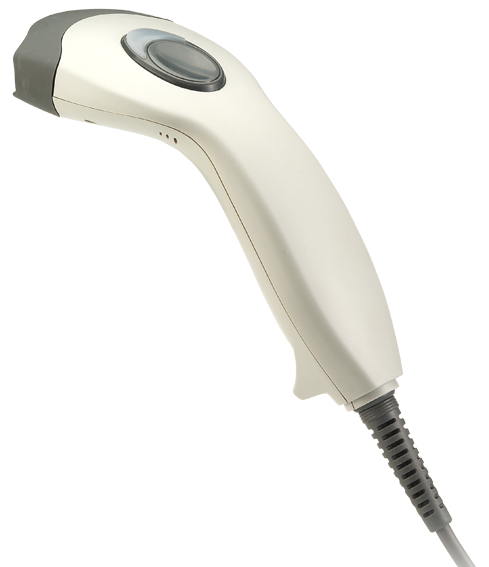

Zebex Z-3100
CCD Barcode Scanner



● 1D CCD barcode scanner
● Light weight, ergonomic design
● 32 Bit Microprocessor
● 330 scan per second
0,1 mm (4 mil) resolution
● 0 ~ 350 mm scanning distance
● USB, PS/2, RS-232C and WAND interface options

 Operational
 Light source 617 nm visible LED
 Optical system CCD
 Depth of field 0 – 350 mm (UPC/EAN 100%, PCS=90%)
 Scan angle 42°
 Scan Rate 330 scans/sec
 Minimum Bar Width 0.1 mm (4 mil) (Code 39, PCS=90%, contact)
 Print Contrast 30% @ UPC/EAN 100%
 Indicators (LED) Blue LED
 Beeper Operation Programmable tone & beep time
 System Interfaces Keyboard, RS-232C, HID USB, USB virtual COM port, wand
 Physical
 Length 152,3 mm
 Width 64,4 mm
 Heigth 104,9 mm
 Weight 120 g (cable excluded)
 Cable Standard 2 meter straight
 Material ABS Plastic
 Electrical
 Input Voltage 5 VDC ±5%
 Operating Current 110 mA typical
 EMC CE & FCC DOC compliance, VCCI, BSMI
 Environmental
 Operation temperature 0°C ~ 50°C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Light Levels Max. 100.000 Lux (fluorescence)
 Drop nt> Designed to with stand 1.5M drops
 Supported Barcode Types
 Standart UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full ASCII, Codabar (NM7),Code 128, Code 128 with full ASCII,Code 93,Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32
 Optional Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5,Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS variants
