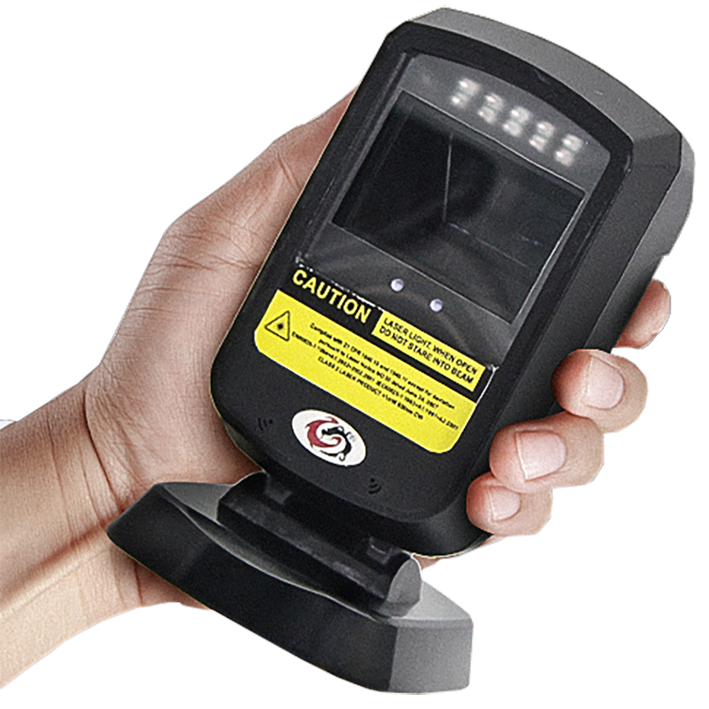

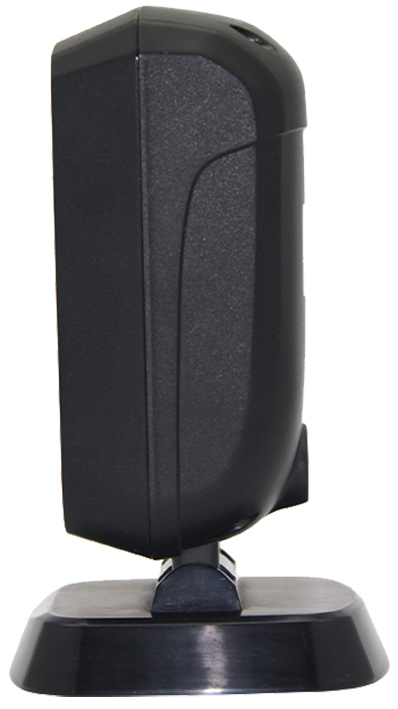

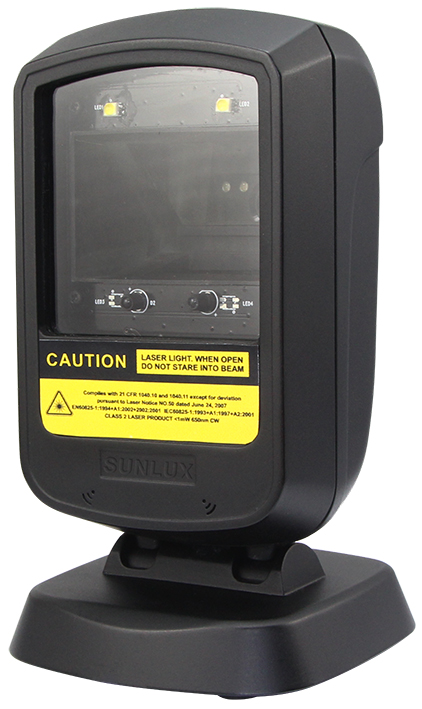

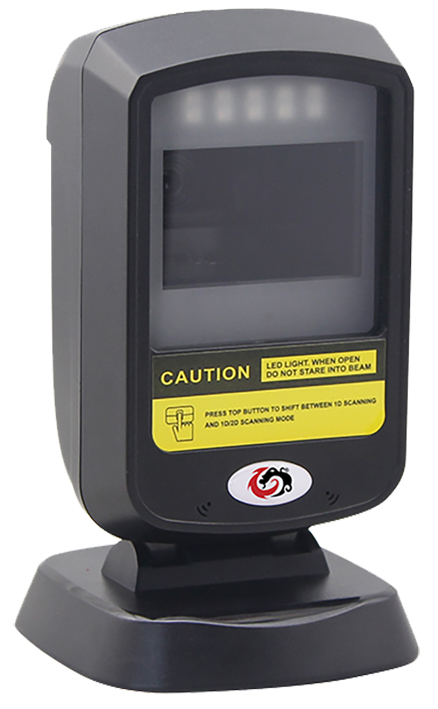

Sunlux XL-2303
Desktop 2D Barcode Scanner



● 2D/Imager barcode Scanner
● 640 x 480 Pixel Imager Sensor
● 0,1 mm (4 mil) resolution
● 60 fps/s scan speed
● 0 ~ 150 mm scanning distance
● USB HID, RS-232 and USB-VCP Interface

Operational
 Light source Aiming : 650 nm LED
Illumination: Red LED
 CPU 32bit MIPS @1G Hz
 Decoding Depth 0-150 mm (13mil UPC/EAN 100%,PCS=90%)
 Scan Speed 60 FPS/s
 Minimum Bar Width 0,1 mm (4 mil)
 Scan Angle Deflection 360° Inclination ±62° Rotation ±60°
 Print Contrast %10
 Scan Mode Continous & Automatic
 Indicators LED : Blue and Red LED
Sound : Tune and Volume Tunable Sound Horn
 System Interfaces USB HID, RS-232 and USB-VCP
 Physical
 Height 145,9 mm
 Depth 82,6 mm
 Width 84,6 mm
 Cables Standard 2 meter straight
 Material Abs Plastic (Flame Retardant Material)
 Color Black
 Electrical
 Input Voltage DC 3.6V ~ 5V
 Current Values Working: Max. 200 mA
Stand by: Max. 150 mA
 EMC CE & FCC DOC compliance
 Environmental
 Operation temperature 0°C ~ 50°C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Ortam Işık Seviyesi Max. 5.000 Lux (fluorescence),Max. 100.000 Lux (Sunlight)
 Drop Durability 1,0 Meter
 Decode Capabilities
 1D Barcode Types UPC, EAN, Code 39 (with full ASCII), Codabar, Code 128, Code 93, Code 11, Interleaved 2 of 5,Industrial 2 of 5, Matrix 2 of 5, MSI Plessy, GS1 DataBar etc.
 2D Barcode Types PDF417,Data Matrix, QR Code
