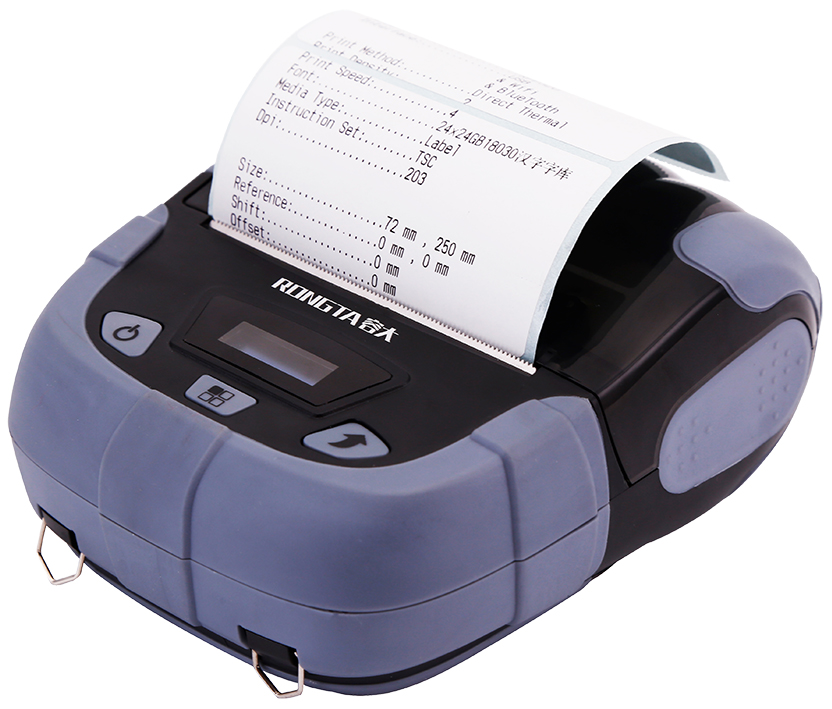

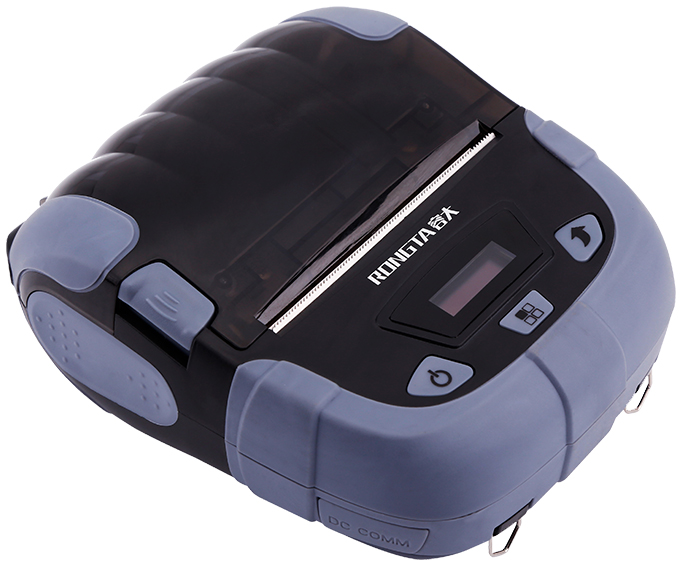

Rongta RPP320
Portable Barcode - Receipt/Pos Printer



● Direct Thermal Printing
● 203 DPI Printing Resolution
● Max. 72 mm Printing Width
● Max. 1016 mm Printing Length
● Max. 76 mm / Sec Printing Speed
● 8 MB DRAM and 4 MB Flash ROM
● PPLZ Language Support
● Battery operation for eight hours on single charge
● IrDA, USB and RS-232 interfaces as well as Bluetooth connectivity
● Print to the sticky labels

 Operational
 Printing method Direct thermal
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed Max. 76 mm/sec
 Printing length Max. 1016 mm
 Printing width Max. 72 mm
 Memory 8 MB DRAM, 4 MB Flash ROM
 Proccessor 32 bit RISC micro proccessor
 Operation interface 2 button (Power/Feed) and 4 LED (Power Status,Battery,Media,Communication)
 Communication interface RS-232C, USB 2.0, IRDA and Bluetooth 2.0
 Sensors Media gap / black line sensor
Paper end sensor
Open cover sensor
 Print directions 0, 90, 180, 270 degree
 Agency listing CE, FCC, cTUVus, CCC, RoHS
 Physical
 Width 106 mm
 Height 70 mm
 Length (Depth) 153 mm
 Weight 670 gr
 Material ABS Plastic
 Electrical
 Power input type External adaptor
 Power source (Input) 100V~240V±10%, 1.5A, 50~60Hz
 Power source (Output) 9VDC, 1.56A
 Environmental
 Operation temperature -10 °C ~ 50 °C
 Storage temperature -20 °C ~ 60 °C
 Humidty %10 ~ %90 (Non Condensing)
 Label
 Type Direct Thermal continuous receipt, continuous, receipt, Direct Thermal labels, die-cut, black mark, Direct Thermal stickers, UV coated media (Limited label support)
 Width 25,4 mm ~ 78,5 mm
 Thickness 0.0508 ~ 0.1016 mm
 Roll Inside diameter 12,7 mm
 Roll Outside diameter 57 mm (Maximum)
 Ribbon
 Type Not Used
 Software
 Windows Compatibility Win CE.NET, Pocket PC, Windows Mobile, Windows 2000/XP/2003/VİSTA/Windows 7
 Design programs Bartender UltraLite (Free)
 Supported barcode printing language PPLZ
 Supported graphics formats GRF, HEX and GDI
 Supported Barcode Types
 1D Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13, UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, Code 128 Auto, UPC/EAN-Extension, Plessey, Industrial 2 of 5 , Standard 2 of 5, Logmars, MSI, Code 11, GS1
 2D MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite codes
 Accessories
 Optional Items Shoulder Strap, Environmental case, Lithium-ion Battery, Single Battery Charger, 4 Bay Battery Charger, Car Charger, RS-232 Cable, USB Cable
 Turkish
 Data Sheets
 Users Manual
 İngilizce
 Data Sheets
 Users Manual
 Seagull Windows Driver  Windows XP, Vista, 7, Server 2003, Server 2008, Server 2008R2 (32 Bit & 64 Bit)
 Bartender UltraLite  Label Design and Printing Software
 Printer Utility  Printer Configuration Software
 Font Utility  Font Create / Download Software
 S.D.K  Software Developement Kit
