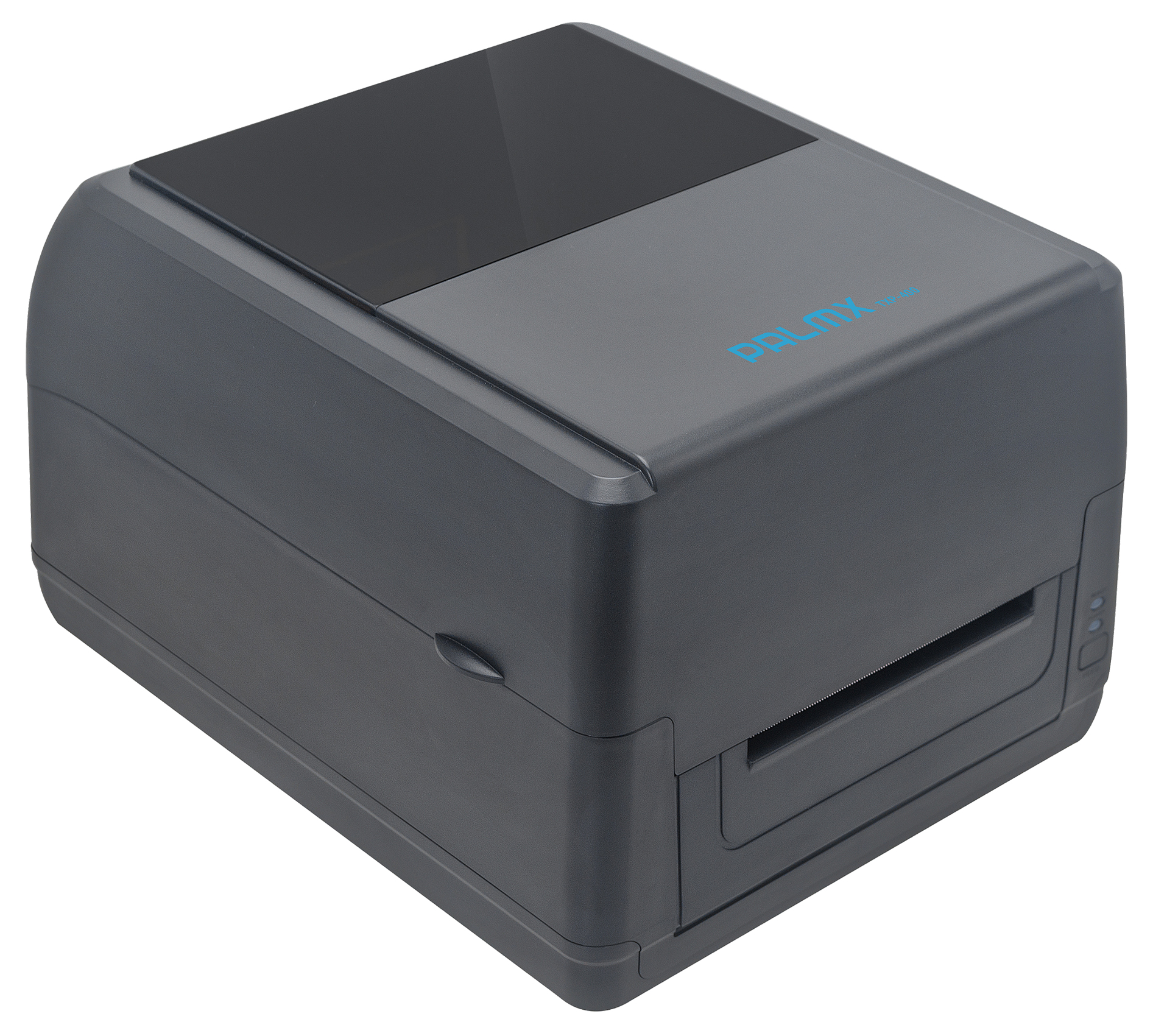

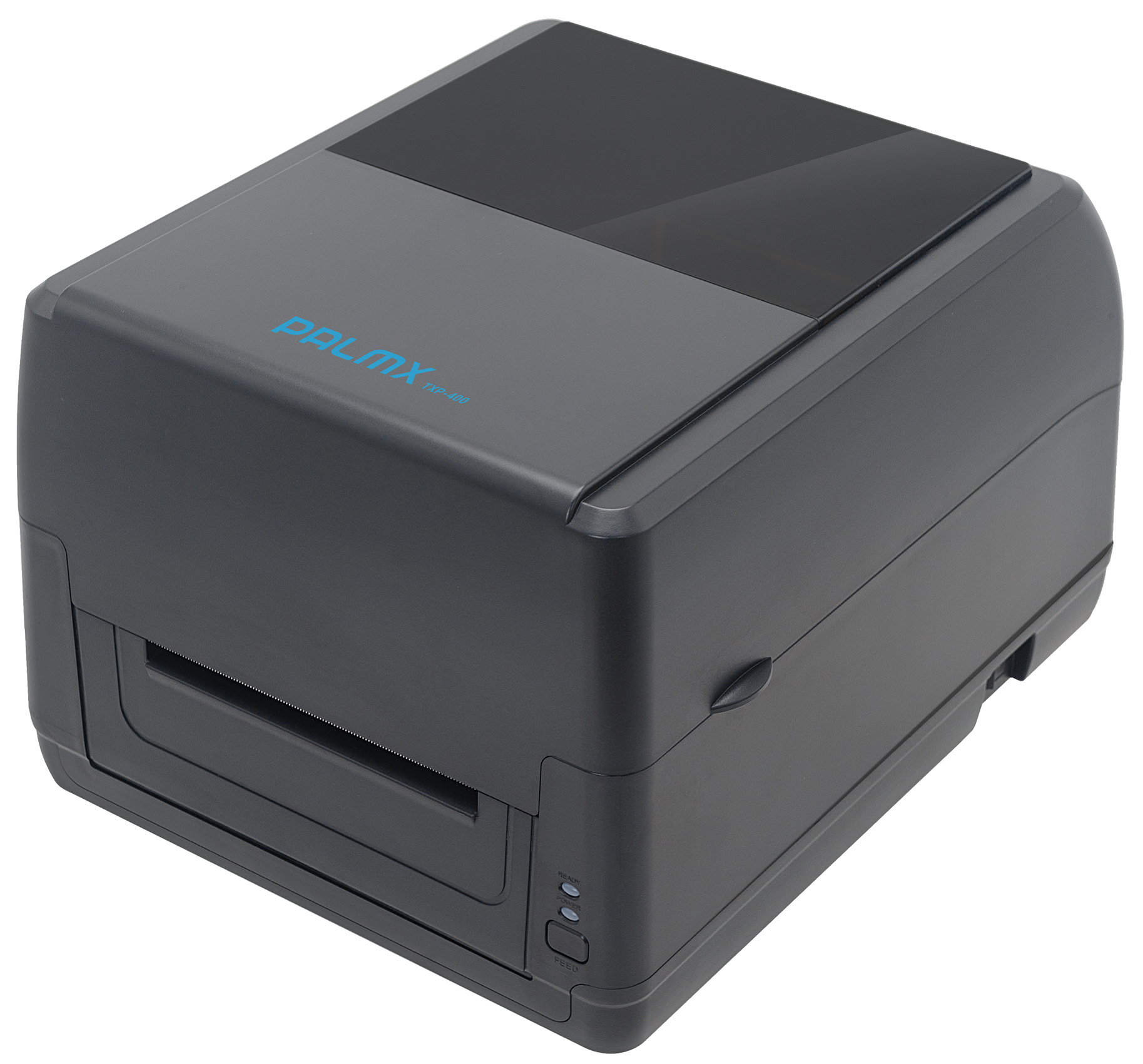

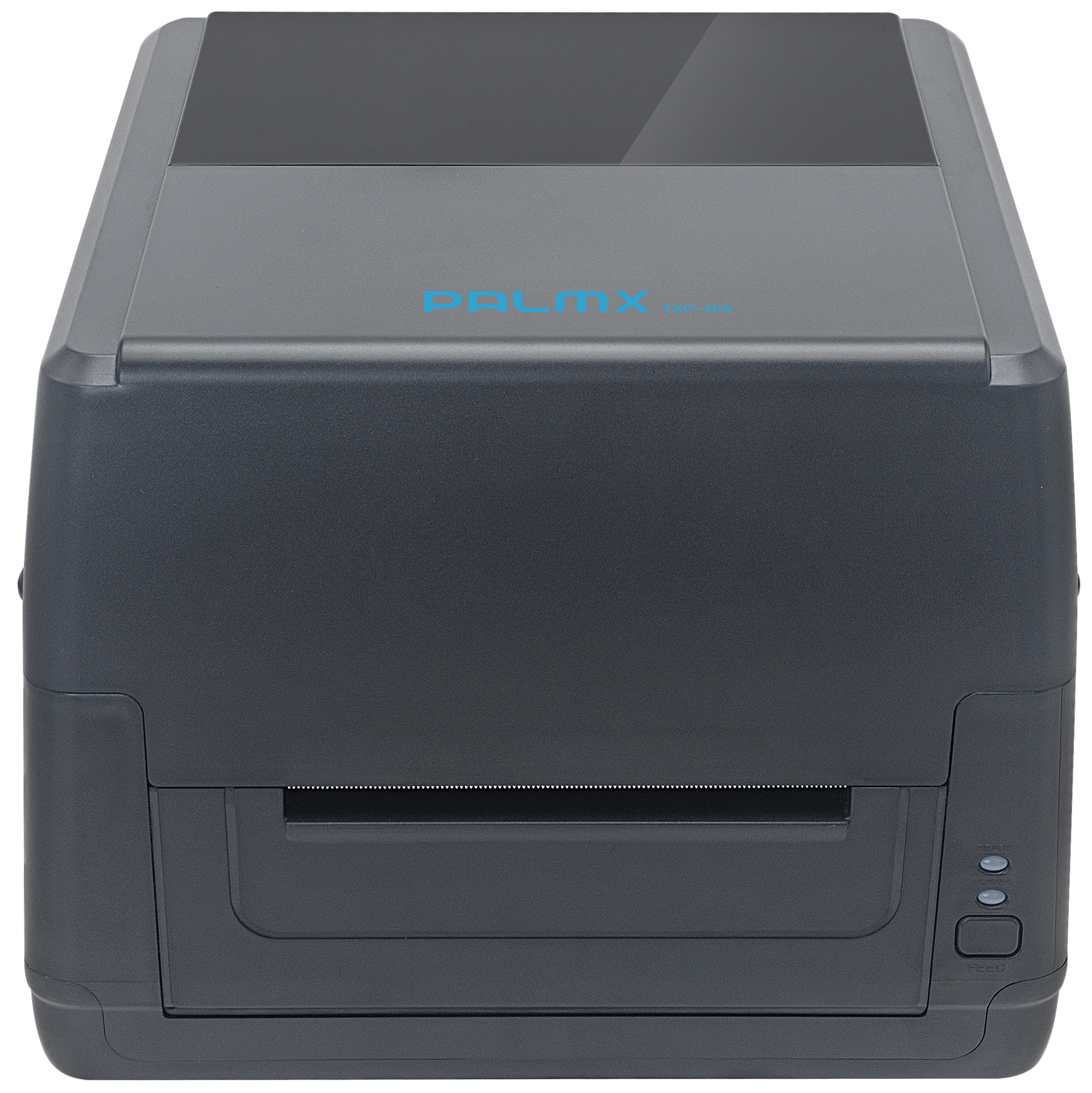

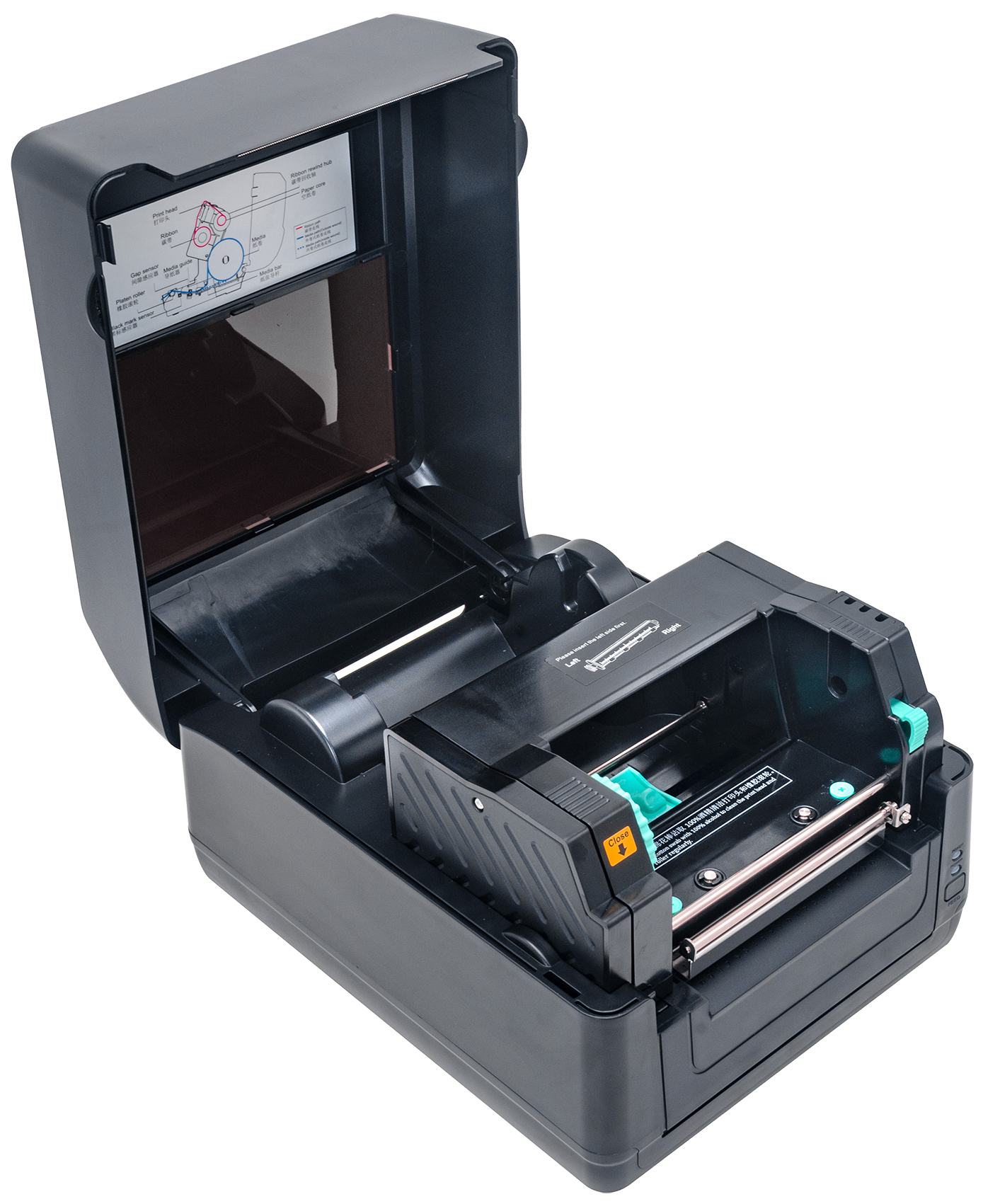

Palmx TXP-400
Entry Level Barcode Printer



● Direct Thermal And Thermal Printing
● 203 DPI Printing Resolution
● Max. 104 mm Printing Width
● Max. 1778 mm Printing Length
● Max. 127 mm / Sec Printing Speed
● 8 MB DRAM and 8 MB Flash ROM
● TSPL, ZPL, EPL and DPL Emulation Support

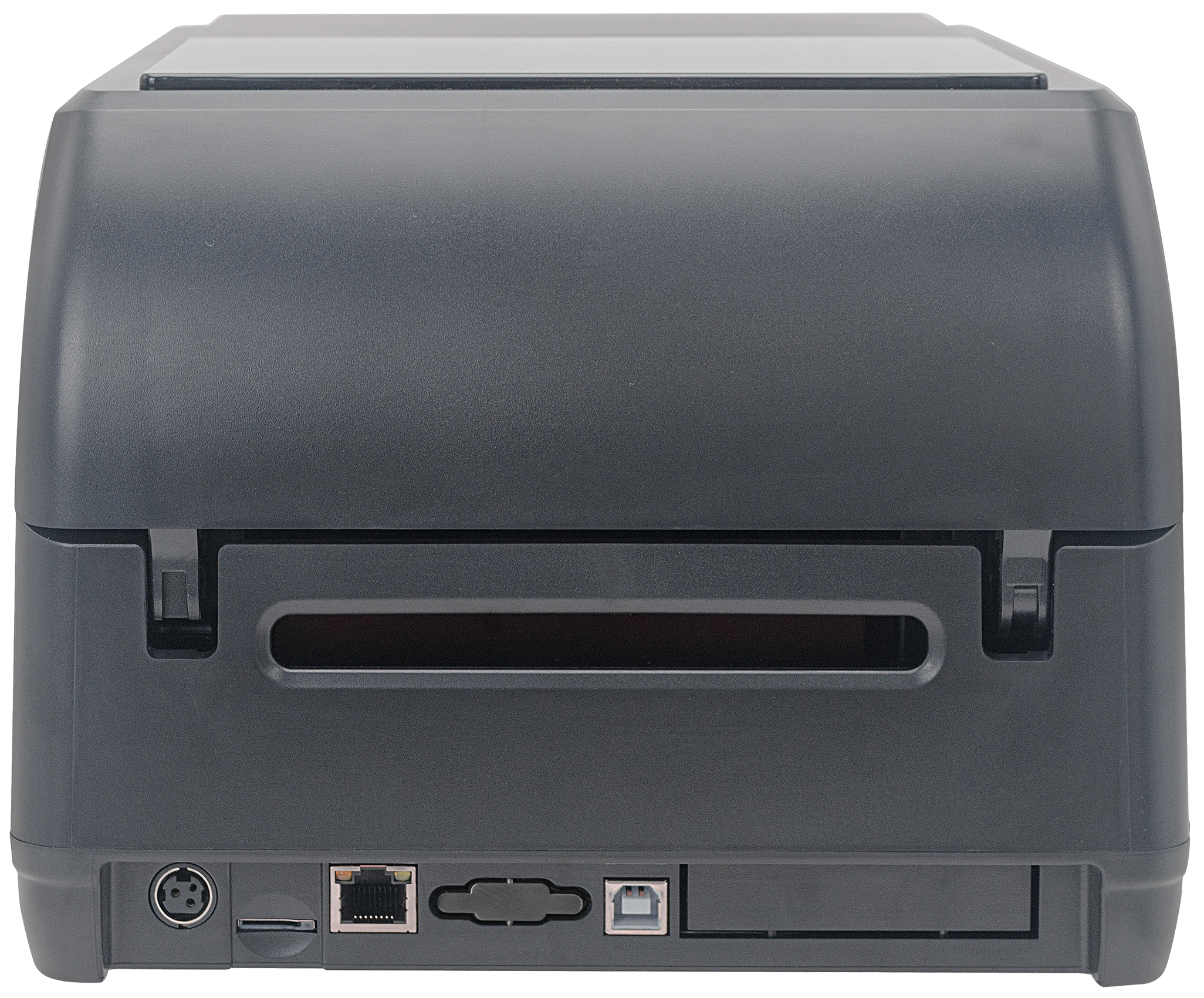

● USB and Ethernet Port

Operational
 Printing method Direct thermal and thermal transfer
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed (Maximum) Max. 127 mm/saniye
 Printing length Max. 1.778 mm
 Printing width Max. 104 mm
 Sensor 1 Pcs Label Gap Sensor
1 Pcs Black Mark Sensor
1 Pcs Print Head Open Sensor
1 Pcs Ribbon Sensor
 Label
 Type Continuous, Gap, Fan hold, Black Mark
 Width 25,4 mm ~ 118 mm
 Thickness 0,06 mm ~ 0,254 mm
 Roll Inside Diameter 25,4 mm ~ 76,2 mm
 Roll Outside diameter 127 mm (Maximum)
 Ribbon
 Type Wax, Wax/Resin and Resin
 Ink side Outside
 Width Max. 110 mm
 Length 300 Meter (Maximum)
 Roll Inside Diameter 25,4 mm
 Performance
 Processor 32 bit CPU
 Memory 8 MB SDRAM, 8 MB Flash ROM (expandable Max. 4 GB)
 Interface USB and Ethernet
 Physical
 Width 282 mm
 Height 232 mm
 Depth 171 mm
 Weight 2,56 kg
 Material ABS Plastic
 Electrical
 Power Type External Power Adaptor (Built-in automatic voltage switching power supply)
 Power source (Input) AC110~240V,50~60 Hz, 1.8A
 Power source (Output) DC24V / 2.5A (60W)
 Environmental
 Operation temperature 5°C ~ 45°C
 Storage temperature -40°C ~ 60°C
 Operation Humidty %25 ~ %85 (Non Condensing)
 Storage Humidty %10 ~ %90 (Non Condensing)
 Software
 Drivers Windows , Linux, Mac
 SDK Windows, iOS, Android
 Label Design Software Bartender UltraLite
 Supported Command Set TSPL,ZPL, EPL and DPL
 Supported graphics formats BMP and PCX
 Fonts / Graphics/ Symbologies
 Internal Fonts 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software
 1D Code 39,Code 93,Code 128UCC,Code 128 Alt Tip A-B-C,Codabar,Interleaved 2 of 5,EAN-8,EAN-13,EAN-128,UPC-A,UPC-E,EAN ve UPC Ek 2/5 hane,MSI,MSI PLESSEY,POSTNET,China POST,GS1 DataBar, Code 11
 2D PDF417,Maxicode,DataMatrix,QR Code, Aztec
 Accessories
 Optional Items Cutter Module, Peeling Module, External Media Holder
