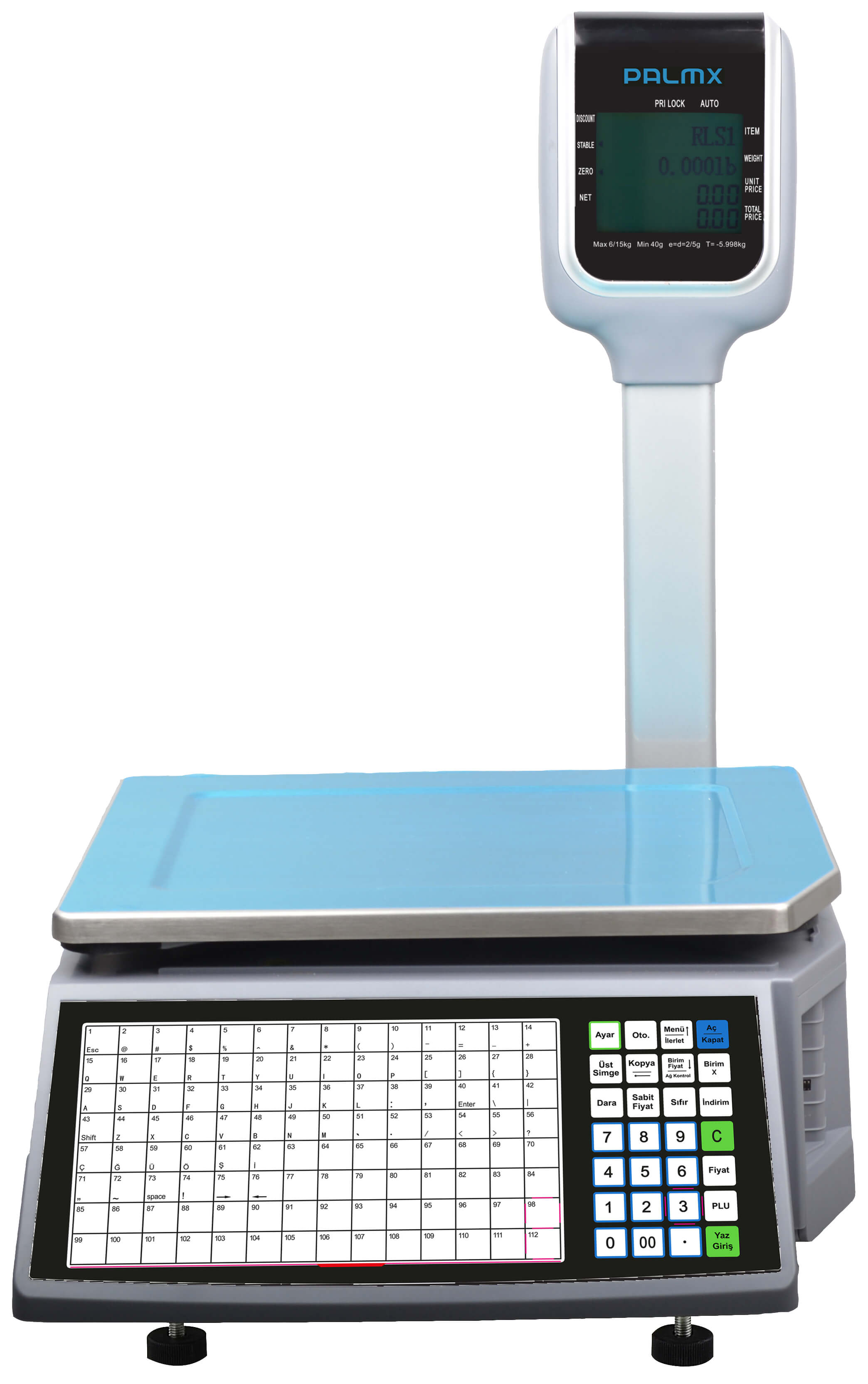

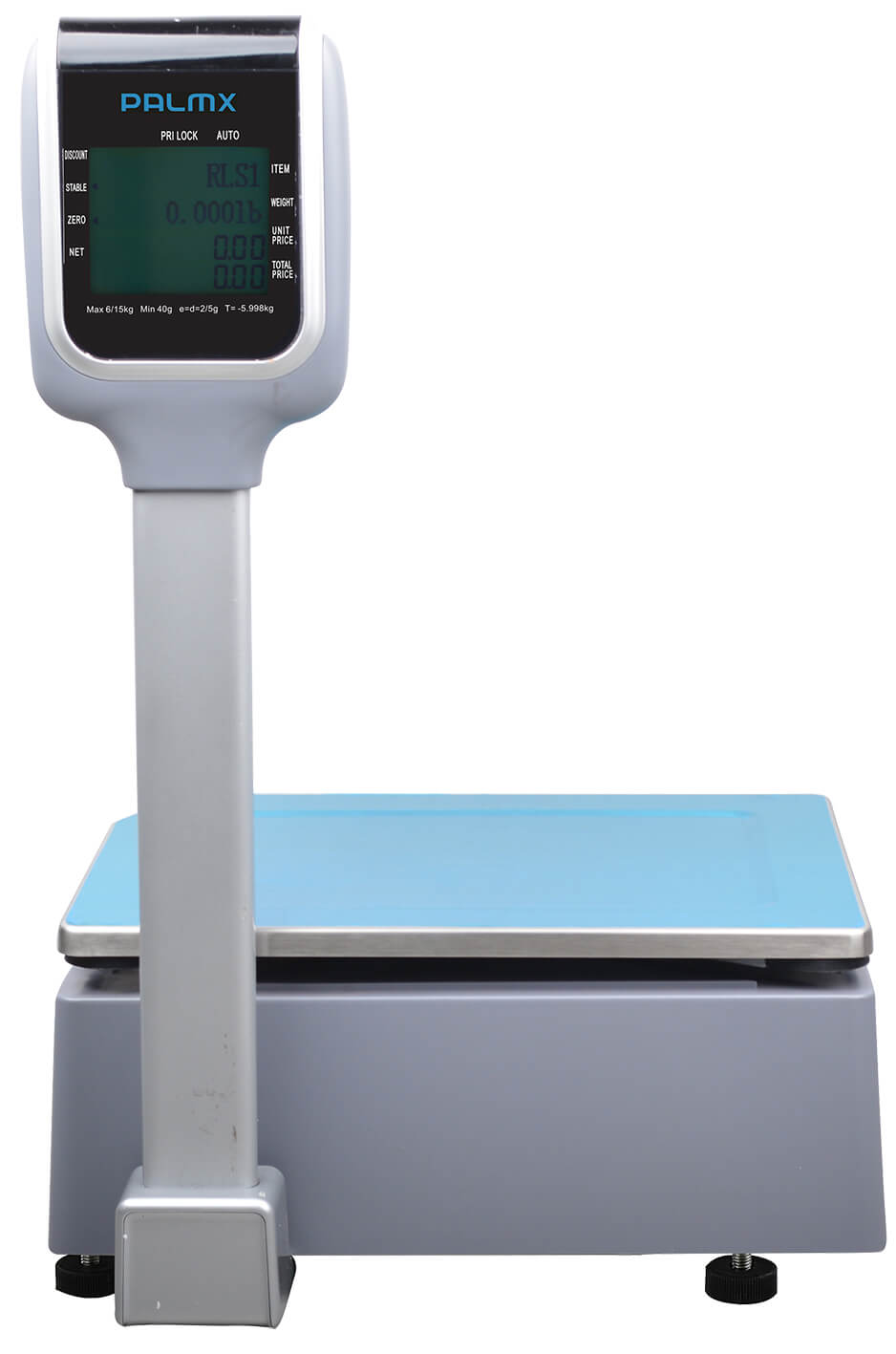

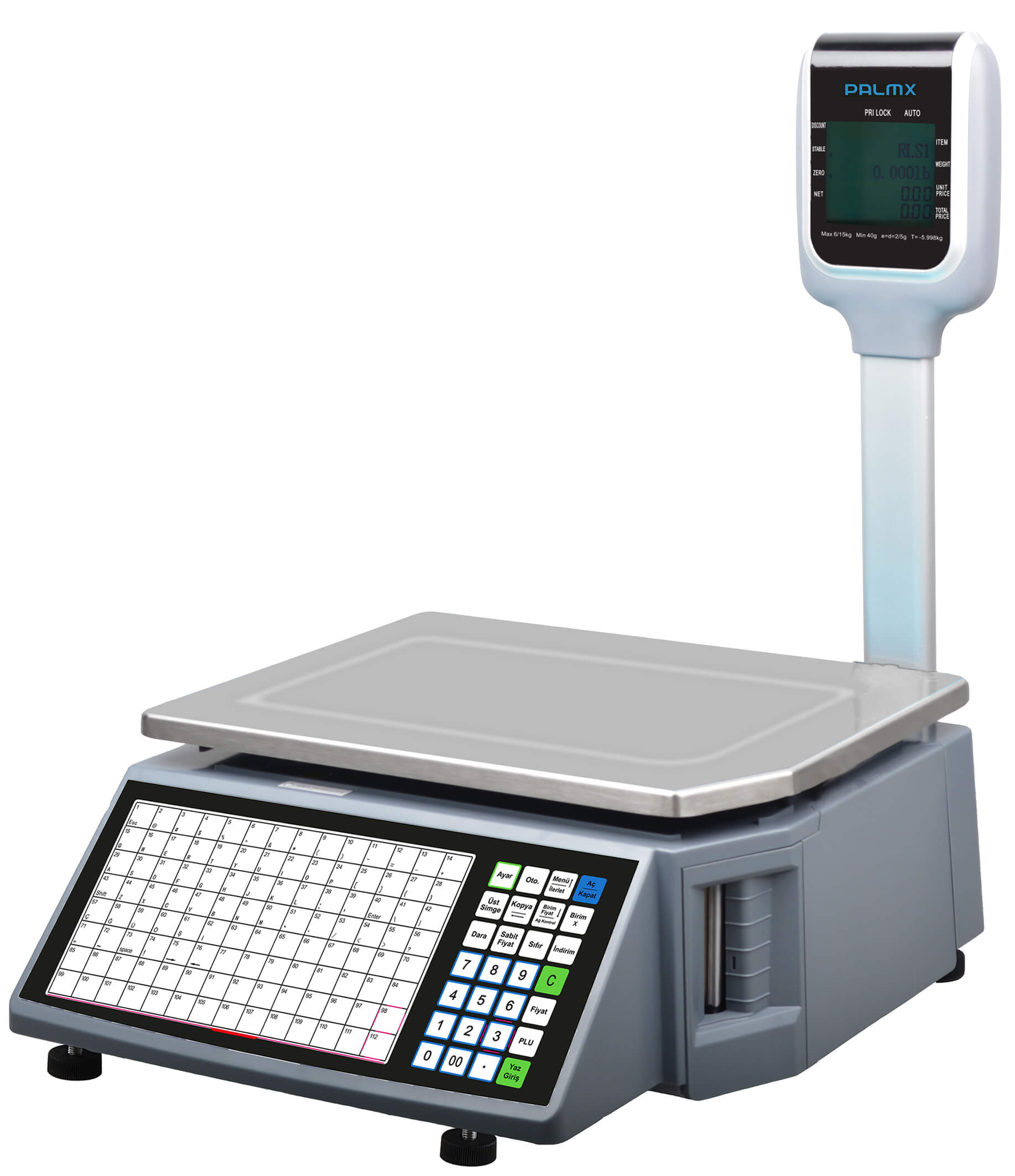

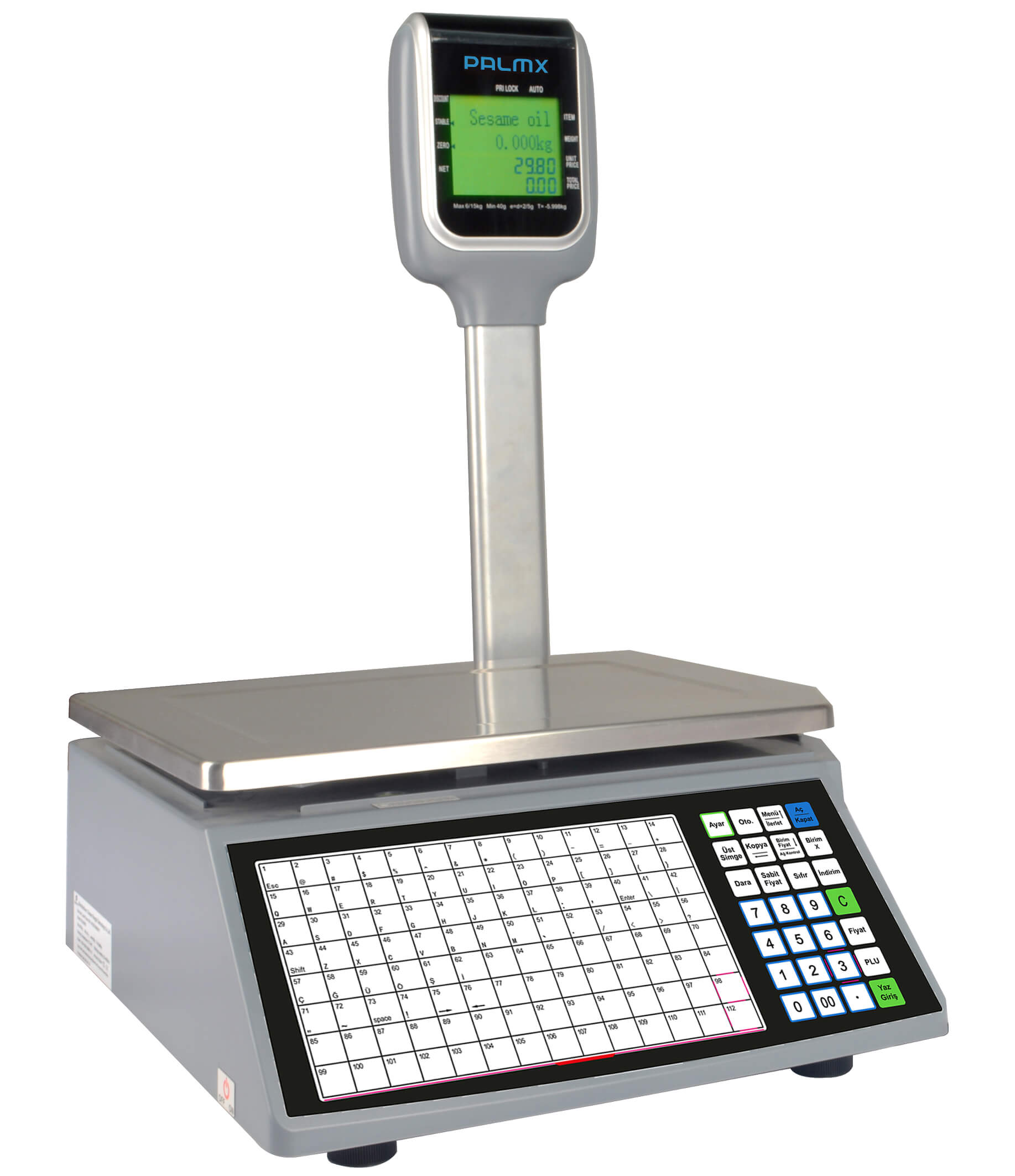

Palmx RLS1X00D
Barcode Label Printing Scale



● Max. 15 Kg or 30 Kg Weighing options
● High speed direct thermal printing
● 10.000 PLU Capacity
● 4 Lines LCD Display With Backlight
● 112 X 2 Keypad
● RS232 and Ethernet connection options

 Model  Max. Weighing
 RLS1000D  15 Kg.
 RLS1100D  30 Kg.
Operational
 Weighing Range RLS1000D Max. 15 Kg.
RLS1100D Max. 30 Kg.
 Weighing Sensitivity RLS1000D 2 / 5 gr
RLS1100D 5 / 10 gr
 Weighing Tare RLS1000D 5.998 Kg
RLS1100D 14.995 Kg

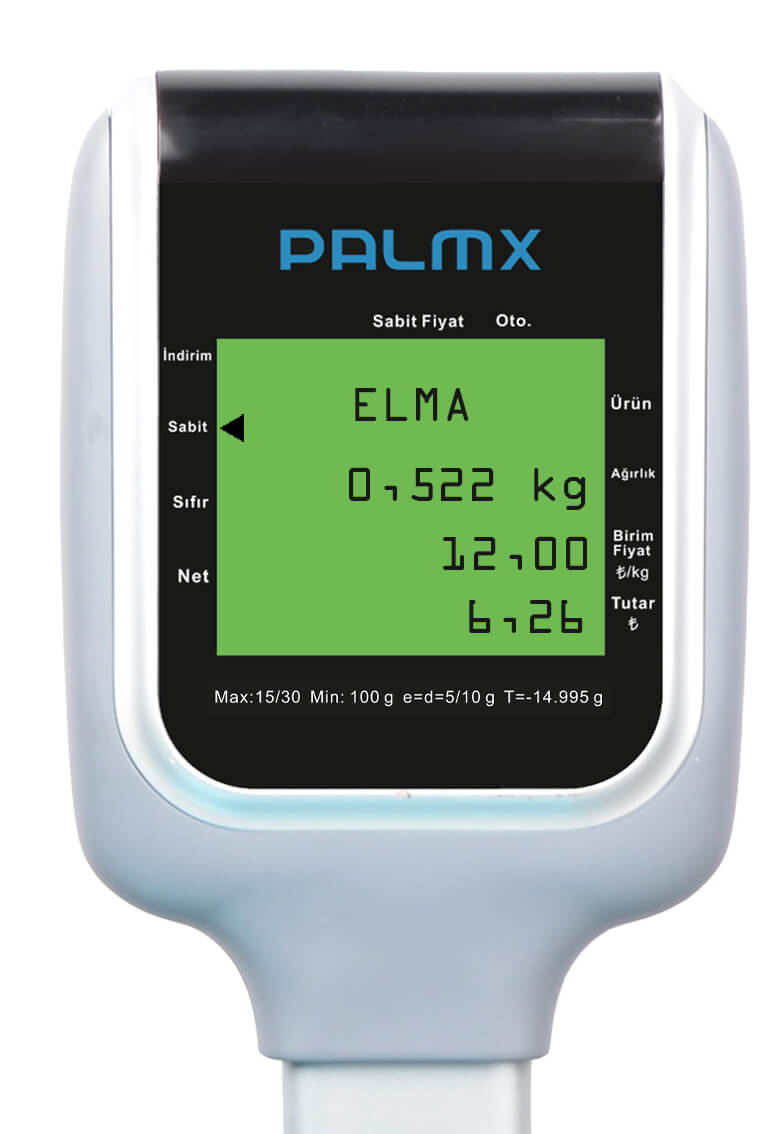

 LCD Displa Position Top
Type Square
Line Quantity 4
Resolution 96 X 32 Pixel
Backlight Avalaible

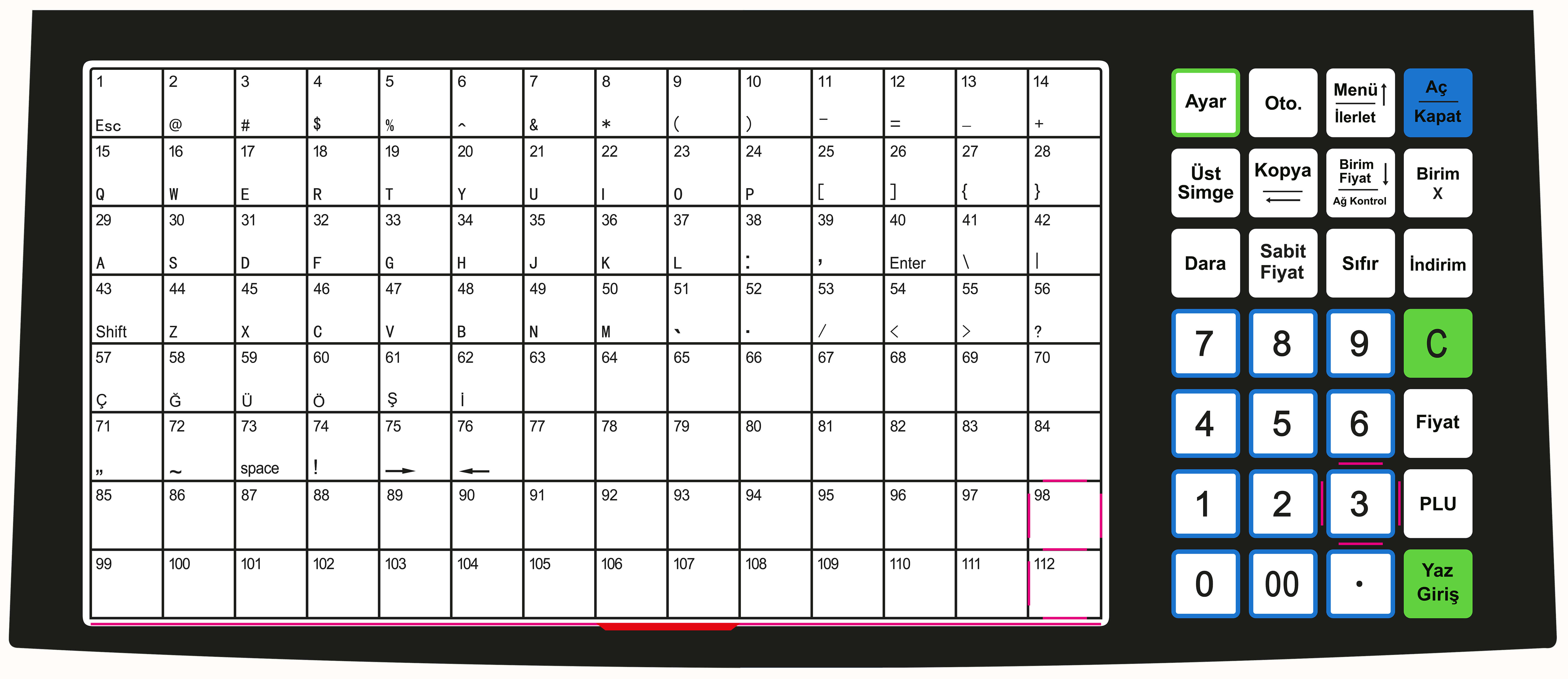

 Keypad Type Mylar Button
Quantity Total: 140 (Hotkey: 112, Function: 28)
 Paper Type Thermal Label , Termal Receipt
 Label Width 61,5 mm (±0,5 mm)
 Roll Inner Diameter Min. 28 mm (Optional: 40 mm)
 Roll Outer Diameter Max. 100 mm
 Printing width 56 mm (203 Dot/Line)
 Printing Speed 90 mm / Second
 Paper Out Method Tear or Strip
 Programmable data per PLU LFCode, Item Name, Item No, Unit Price, Charge Unit, Fresh Days, Tare Weight, Barcode, Department, Packing Weight, Packing Type Normal, Fixed Weight, Fixed Price, Fixed Weight and Fixed Price, Info One, Info Two, Label format, Discount, Hotkey
 Interfaces RS-232C, Ethernet and Wifi
 Power Source AC 100~240V, 50~60 Hz
 Accuracy Class III
 Executive Standard GB/T 7722-2005,OIML R 76-1(2006) ve EN 45501:2015
 Certification OIML, NTEP, CE
 Proccessor LPC1778FBD208
 Memory 512 KB
 SD RAM 16 MB (Nand Flash)
 Physical
 Only Scale  Width 372 mm
 Height 560 mm
 Depth 453 mm
 Weight 8,96 Kg
 Physical
 Temperature  Working 0°C ~ 40°C
 Storage -10°C ~ 60°C
 Humidity  Working %5 ~ %85
 Storage %10 ~ %90 (Label / Paper Not Included)
