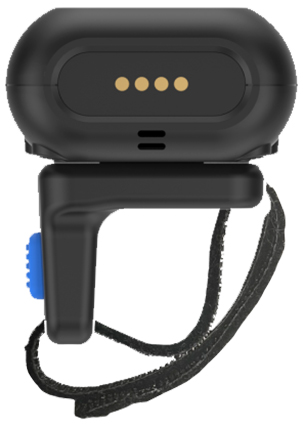

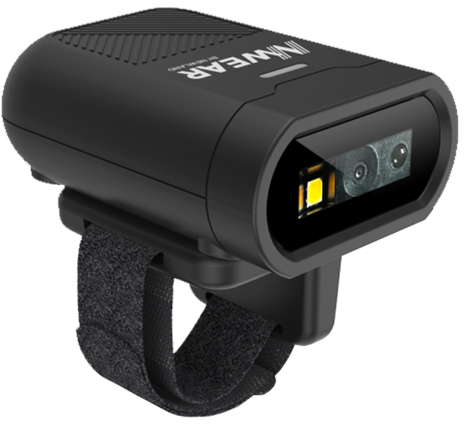

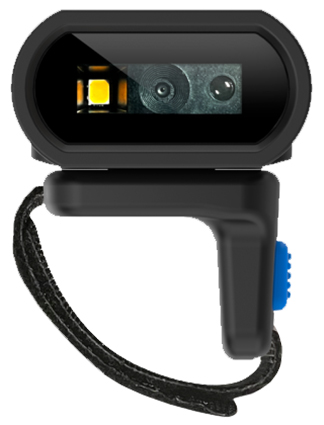

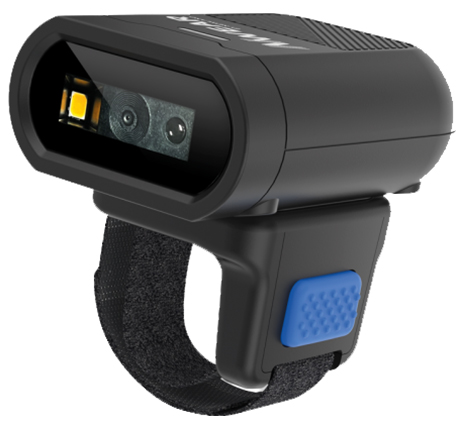

Newland WD4
(NWear)

Wireless Barcode Scanner



● 2D Imager Barcode Scanner
● 640 x 480 Pixel CMOS Sensor
● Wireless (Bluetooth) Communication
● Operate with a 40 meter data transmission range
● Max. 10 hours Battery Life
● 1 MB Memory

Performance
 Imager Sensor 640 x 480 Pixel CMOS
 Light source Illumination: White LED
Aiming : Red LED
 Indicators LED light, Buzzer, Vibration
 Support Barcodes Type 1D and 2D
 Depth of Fields Code 39 (5 Mil) 55 mm ~ 145 mm
EAN13 (13 Mil) 55 mm ~ 280 mm
PDF417 (6.7 Mil) 40 mm ~ 130 mm
Datamatrix (10 Mil) 40 mm ~ 140 mm
QrCode (15 Mil) 30 mm ~ 195 mm
 Print Contrast ≥%20
 Storage 1 MB
 Interface USB
 Minimum Bar Width 0.076 mm (3 Mil) (Code 128)
 Performance
 Radio Technology Bluetooth 5.0
 Communication Distance Max. 40 metre (Open Space)
 Electrical
 Power Adaptor Input: AC100 ~ 240V, 50 ~ 60 Hz
Output: 5VDC, 1A
 Battery Type 4.35V 670 mAh Rechargeable Li-ion Battery
 Charging Time <2 hours
 Battery Life 10 hours of continuous operation
 Environmental
 Operation temperature -20°C ~ 50°C
 Storage temperature -40°C ~ 70°C
 Charge temperature 0°C ~ 45°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD Protection ±8 KV (Contact discharge); ±12 KV (Air discharge)
 Drop 1,2 m drop to concrete
 IP Rating IP42
 Certifications CE, RoHS
 Decode Capabilities
 1D Barcodes Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Standard 25, Codabar, Industrial 25, Code39, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS),Matrix 2 of 5, Interleaved 2 of 5, ITF-6, ITF-14
 2D Barcodes PDF417, QR Code, Data Matrix, Aztec, Micro PDF, Micro QR
