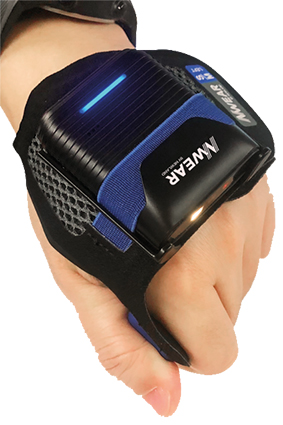

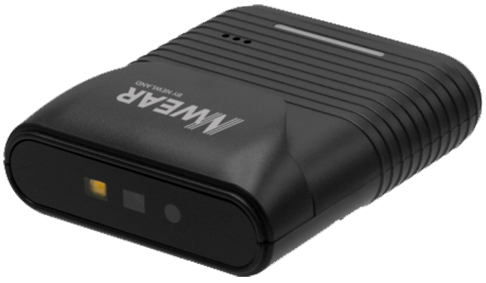

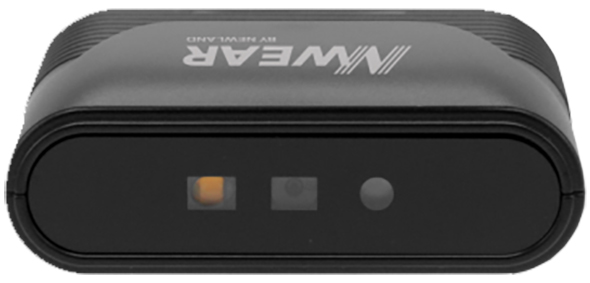

Newland WD2
Wearable Barcode Scanner



● 1D or 2D Barcode Scanner Options
● Wireless (Bluetooth) Communication
● Operate with a 80-meter data transmission range
● 43 gr Weigth
● Compatible Windows, Android and iOS Devices

Data Capture
 Imager Sensor 1280 x 800 Pixel (Megapiksel) CMOS
 Illumination White LED
 Aimimg SR Model 650 nm Laser (Crosshair Laser)
MR Model 650 nm Laser (Dot Laser)
 Decode Capabilities
 OCR OCR-B, Pasaport OCR, Chinese ID Card, Cihana Travel Permit OCR
 Postal US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal
 1D Barcodes EAN-8, EAN-13, UPC-E, UPC-A, Code128, UCC/EAN128, I2Of5, ITF14, ITF6, Matrix 25, CodaBar, Code39, Code32(Italian Pharma Code), Code93, ISSN, ISBN, Industrial25, Standard25, Plessey, Code11, MSI Plessey, UCC/EAN Composite, GS1 Databar, China Post 25, Code 49, Code 16K
 2D Barcodes PDF417, QR Code, Micro QR, DataMatrix, Aztec, MaxiCode, Chinese Sensible Code, GM Code, Micro PDF417, CODEONE
 Scanning Distances
 Standart Range Model 1D Code 39 : (5 mil) 120 mm ~ 330 mm
EAN-13: (13 mil) 65 mm ~ 540 mm
2D PDF417: (6.7 mil) 125 mm ~ 240 mm
Datamatrix : (10 mil) 125 mm ~ 240 mm
QrCode : (15 mil) 40 mm ~ 360 mm
 Mid Range Model 1D Code 39 : (20 mil) 80 mm ~ 1300 mm
Code 39 : (100 mil) 250 mm ~ 3500 mm
EAN-13: (13 mil) 60 mm ~ 850 mm
Code 128 : (5 mil) 190 mm ~ 300 mm
2D Datamatrix : (10 mil) 160 mm ~ 300 mm
 Notifications LED and Beep volume
 Print Contrast ≥%25
 Field of View SR Model Horizontal: 40°, Vertical: 25°
MR Model Horizontal: 40°, Vertical: 25°
 Interfaces USB, Bluetooth HID/SPP
 Communication
 Radio Technology Bluetooth 5.0
 Communication Modes BLE, HID
 Communication Distance Max. 80 metre (Open Space)
 Physical
 Dimensions Height 18 mm
Depth 58,8 mm
Width 48,8 mm
 Weight 43 Gram
 Electrical
 Battery Type 670 mAh rechargeable Li-ion battery
 Charging Time <2 hours
 Battery Life Max: 10 hours (Scan once per 4 second)
 Environmental
 Operation temperature -20°C ~ 50°C
 Storage temperature -40°C ~ 60°C
 Charghe temperature 0°C ~ 45°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±4 KV (Contact discharge), ±12 KV (Air discharge)
 Drop 1,2 m drop to concrete
 IP Standard IP42
 Certifications
 Certifications CE RED, FCC ID, RoHS, SRRC, IEC 62471
 Software
 Configuration Tools EasySet
