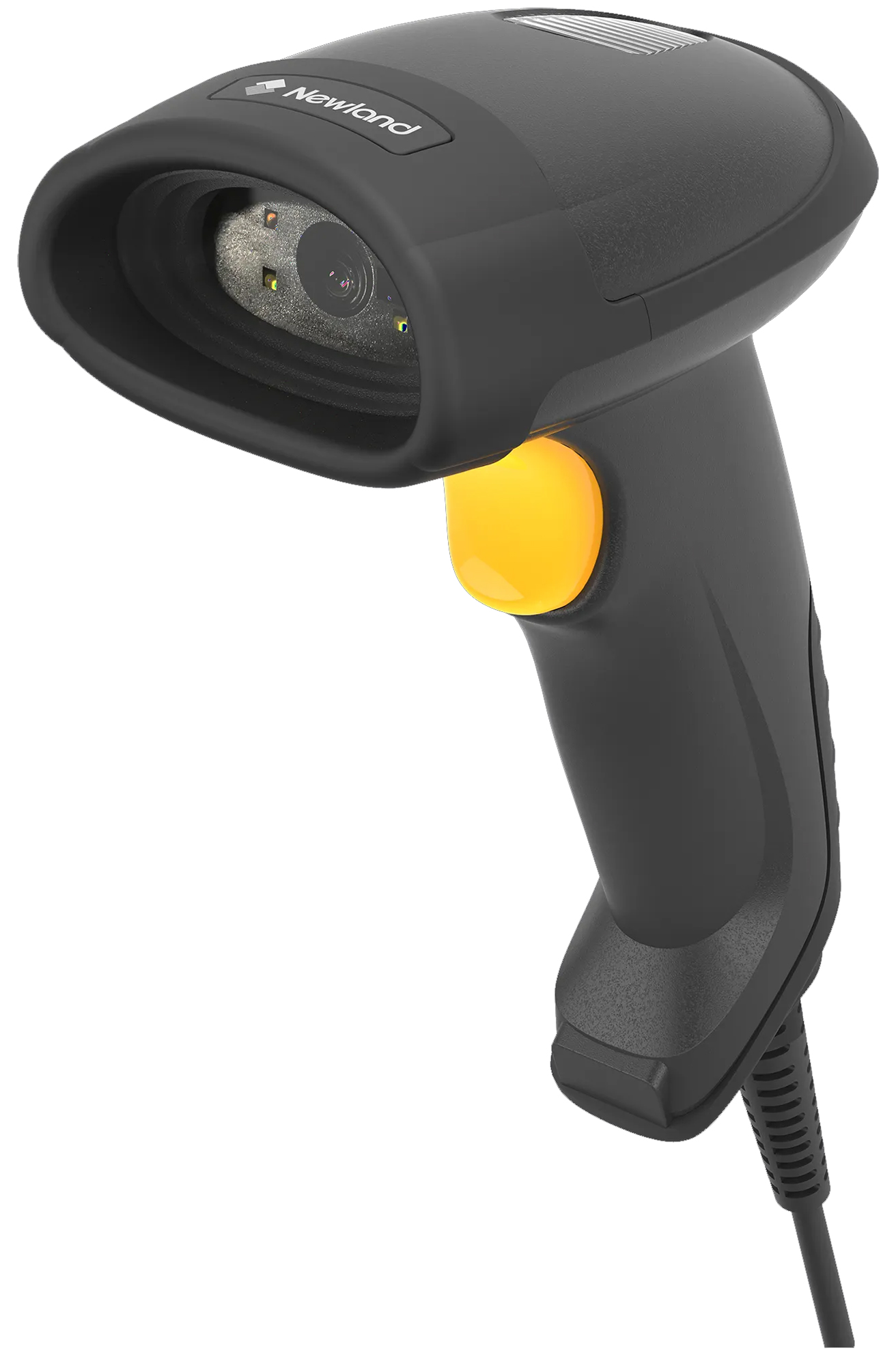

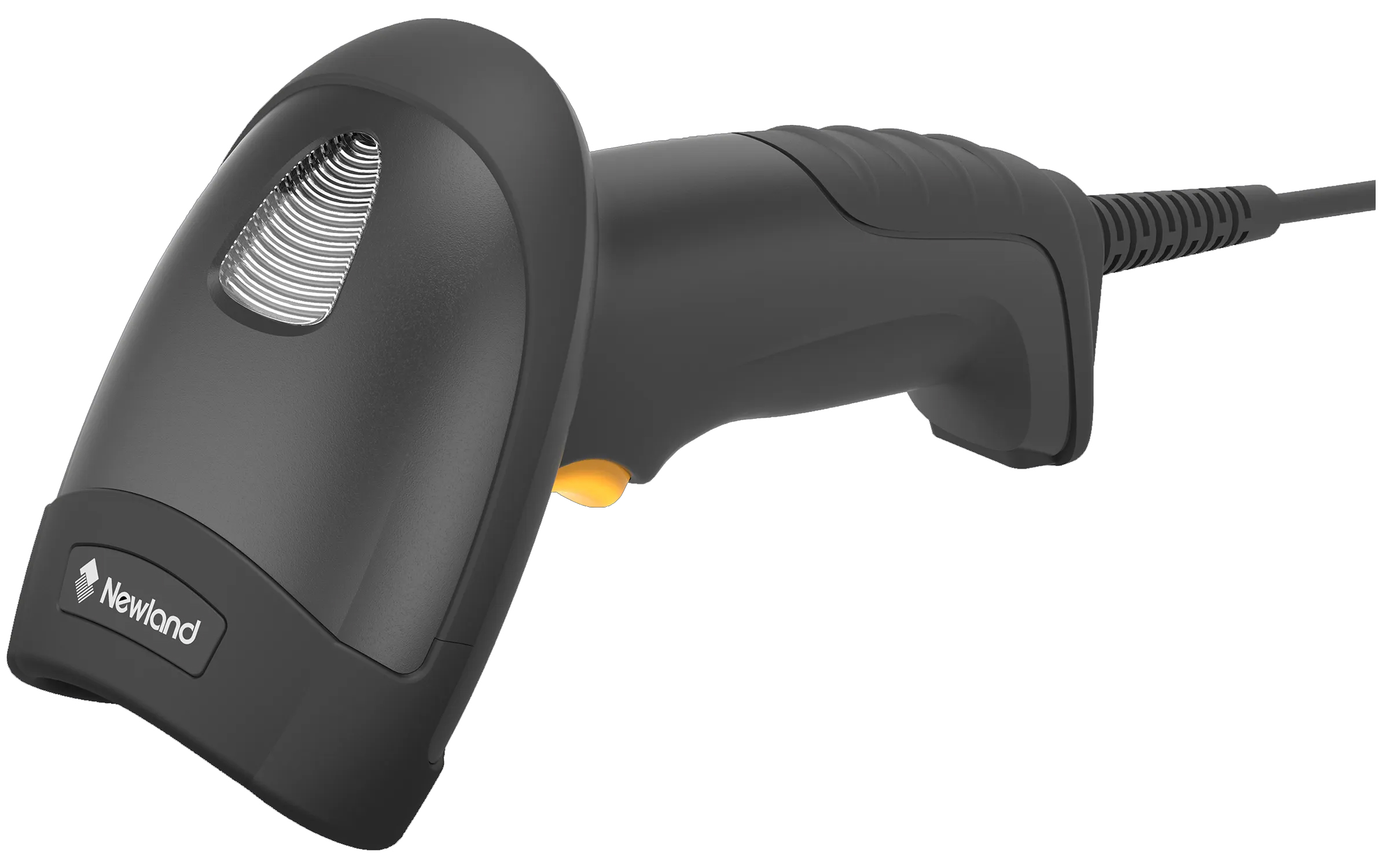

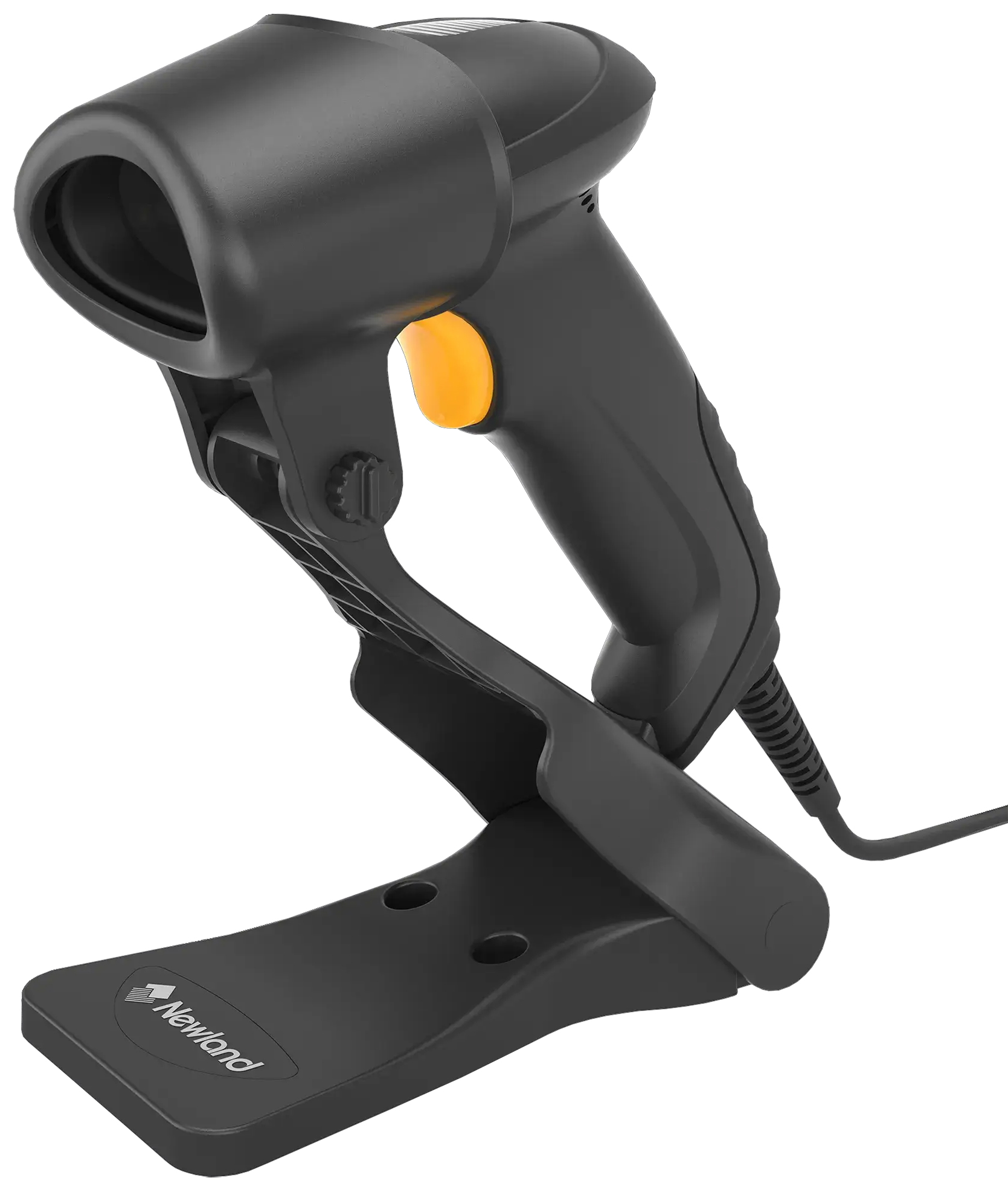

Newland HR3280
(Marlin II)
2D / Wired Barcode Scanner



● Support 1D and 2D Barcodes
● 1280 x 800 Pixel Sensor
● 1D: 3 mil resolution
● 20 ~ 510 mm scanning distance
● IP42 Protection Class
● RS-232 and USB Interfaces

 Performance
 Image Sensor 1280 x 800 Pixel CMOS
 Light source Illumination: Red / White LED
Aiming: Green LED
 Scanning angle Pitch: ±55°; Roll: ±360°; Skew: ±55°
 Resolution 0,076 mm / 3 mil (1D Codes)
 Indicators LED and Beep volume
 Print Contrast ≥%25
 Supported Interfaces RS-232 and USB
 Physical
 Length 113,5 mm
 Width 73,3 mm
 Height 159 mm
 Weight 162 Gram
 Electrical
 Power Consumption Max. 916,6mW
 Power Adaptor (Optional) Input: AC100~240V, 50~60Hz
Output: 5VDC, 1,5A
 Current Standby: 71,3 mA
Operation:238,2 mA (Max: 260,5 mA)
 Environmental
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %0 ~ %95 (Non Condensing)
 Drop Max. 1.5 m
 Sealing IP42
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5,Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey etc.
 Postal Codes

USPS Postnet, Royal Mail, KIX Post, Australian Postal etc.

 2D Codes PDF417, QR Code, Data Matrix,Aztec, Maxicode etc.
 Scanning Distances
 Scanning Distances 1D Code 39 (5 Mil): 75 mm ~ 220 mm
EAN-13 (13 Mil): 45 mm ~ 510 mm
2D PDF417 (6,67 Mil): 70 mm ~ 215 mm
Datamatrix (10 Mil): 50 mm ~ 220 mm
QrCode (15 Mil): 20 mm ~ 330 mm
