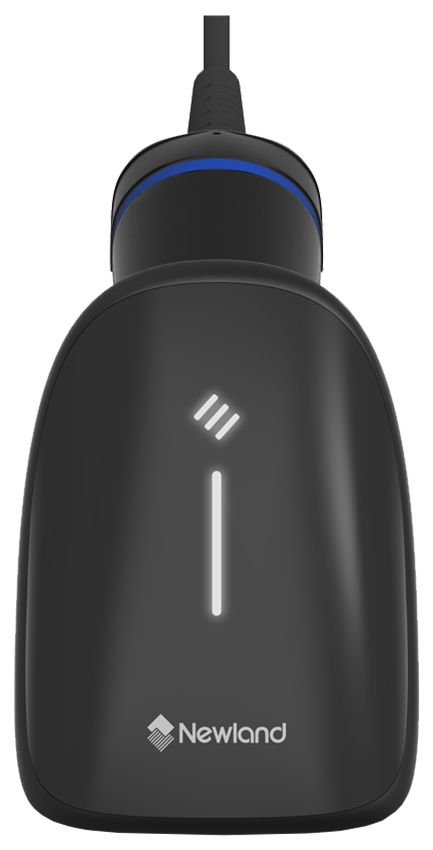

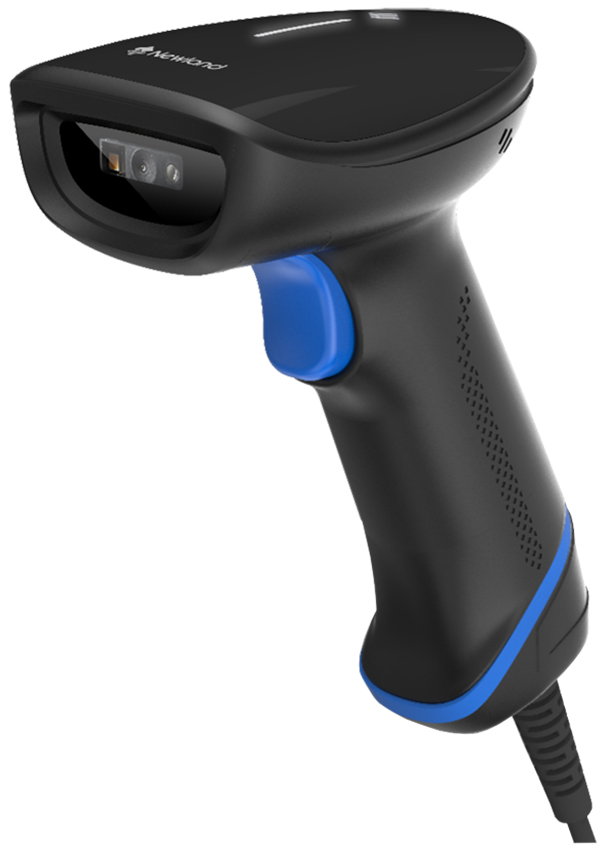

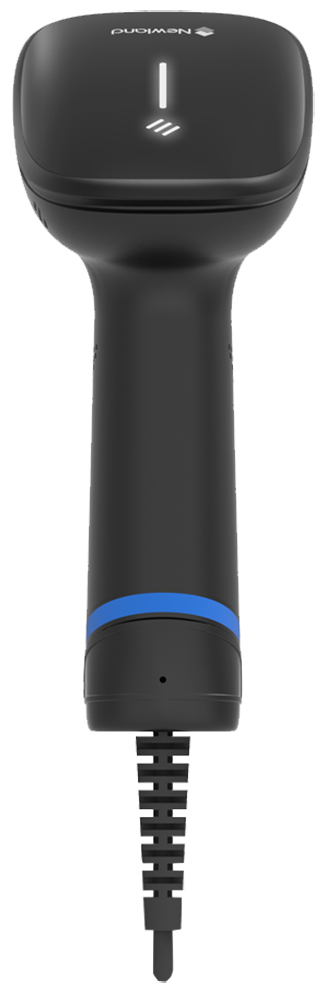

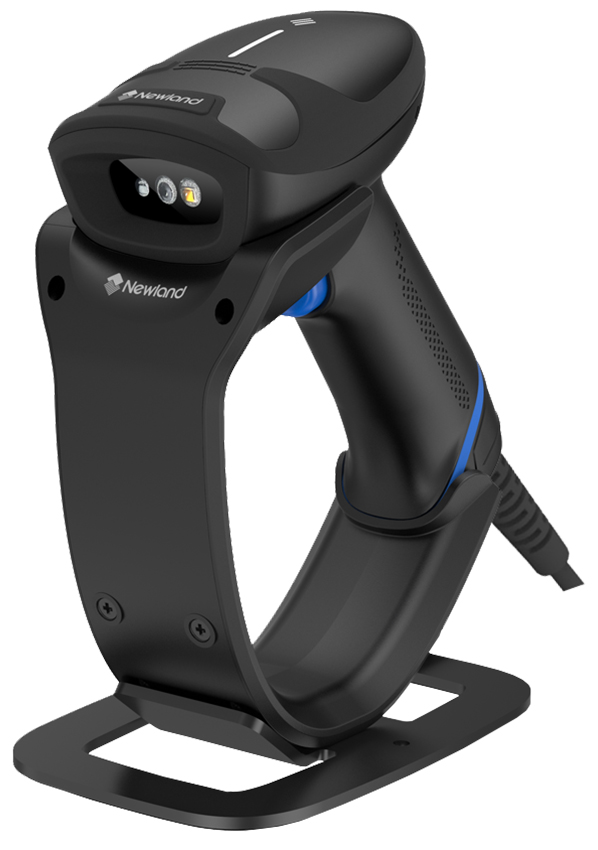

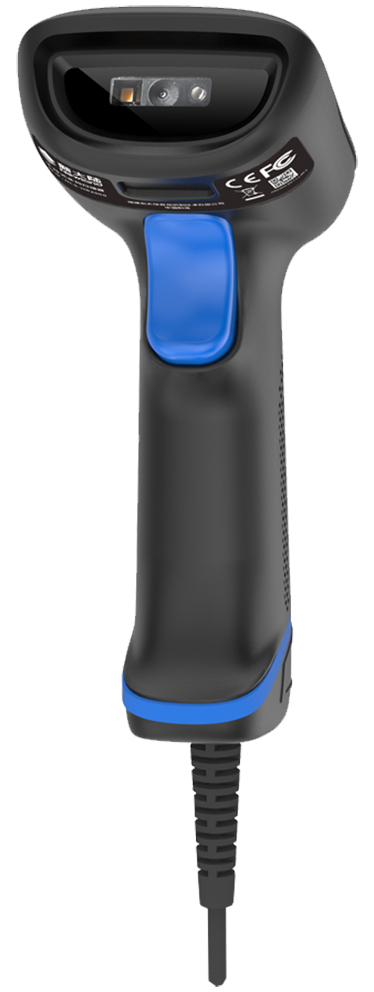

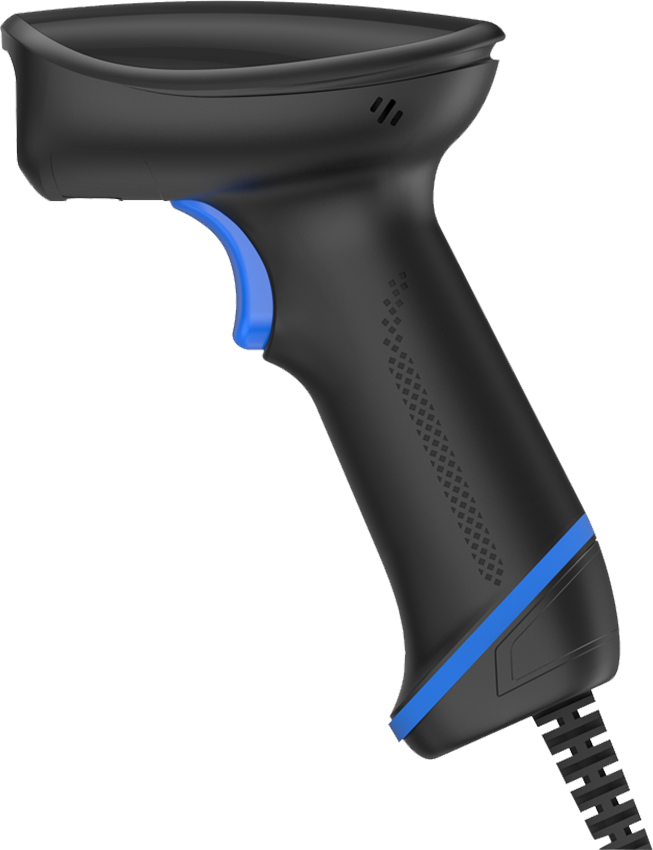

Newland HR2300
(Dorada)
2D / Wired Barcode Scanner



● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● 1D: 3 mil resolution
● 30 ~ 280 mm scanning distance
● IP52 Protection Class
● RS-232 and USB Interfaces

 Performance
 Image Sensor 640 x 480 Pixel CMOS
 Light source Illumination: White LED
Aiming: Red LED
 Scanning angle Pitch: ±60°; Roll: ±360°; Skew: ±60°
 Resolution 0,076 mm / 3 mil (1D Codes)
 Field of View Horizontal: 45°, Vertical: 34°
 Indicators LED, Beep volume and Vibration
 Print Contrast ≥%20
 Supported Interfaces USB (Type A), USB-KBW, USB-CDC, HID-POS, RS232
 Physical
 Width 68 mm
 Depth 95 mm
 Height 161 mm
 Weight 137 Gram
 Electrical
Input Voltage 5V DC (±%5)
 Current Standby: 35 mA
Operation:190 mA (Max: 200 mA)
 Environmental
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %0 ~ %95 (Non Condensing)
 Drop Max. 1.5 meter
 Sealing IP52
 Certifications
 Certifications CE, FCC, RoHS 2.0, IEC62471
 Scanning Capability
 1D Linear Barcodes Code 11, Code 128, Code 39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5, China Post 25, MSI-Plessey, Plessey, GS1Databar(RSS)
 2D Codes PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR
 Scanning Distances
 Scanning Distances 1D Code 39 (5 Mil): 50 mm ~ 120 mm
EAN-13 (13 Mil): 50 mm ~ 280 mm
2D PDF417 (6,7 Mil): 40 mm ~ 120 mm
Datamatrix (10 Mil): 30 mm ~ 125 mm
