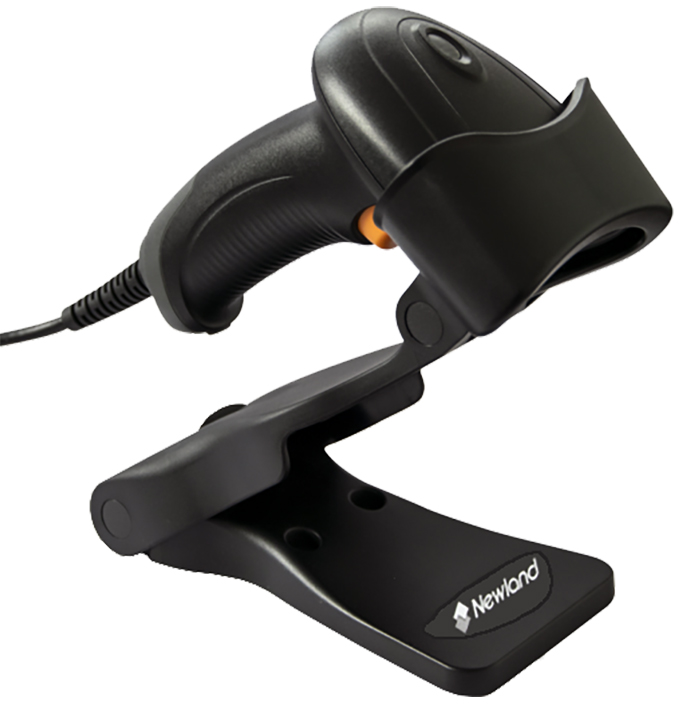

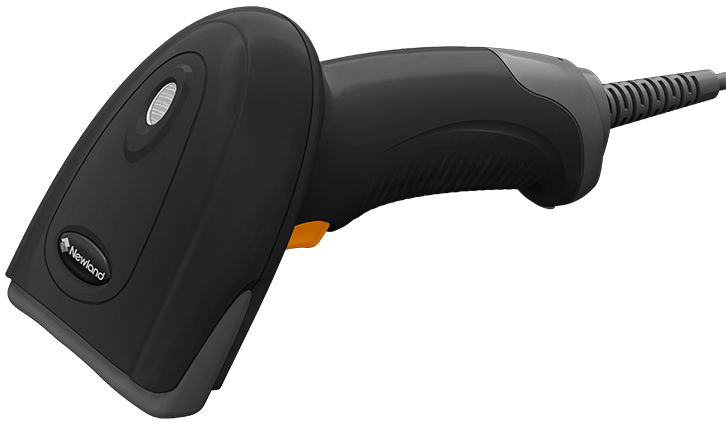

Newland HR2280
(Dorada II)
2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 640 x 480 Pixel Sensor
● IP42 Standard
● Schockproof to 1,2 meters
● RS-232C and USB Interfaces

 Performance
 Image Sensor 640 x 480 Pixel CMOS
 Light Source Illumination: White LED
Aiming: Red LED (625 nm)
 Scanning angle Pitch: ±55°; Roll: ±360°; Skew: ±55°
 Indicators LED and Beep volume
 Print Contrast ≥%20
 Interfaces RS-232C and USB
 Physical
 Length 145 mm
 Width 101 mm
 Height 68 mm
 Weight 111 Gr
 Electrical
 Input Voltage 5VDC (±%5)
 Current Standby: 35 mA
Operation:190 mA (Max:201 mA)
 Environmental
 Operation temperature -20°C ~ 60°C
 Storage temperature -40°C ~ 70°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±8 KV (contact discharge); ±15 KV (air discharge)
 Drop Durability 1,5 meter
 IP Standard IP42
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes All major 1D symbologies, including Code 11, Code 128, Code 39, GS1-128 (UCC/EAN 128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 25, ITF6, ITF-14, Standard 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS).
 2D Codes All major 2D symbologies, including PDF417, Micro PDF417, Micro QR, QR Code, Data Matrix, Aztec.
 Scanning Distances
 Scanning Distances 1D Code 39 (5 Mil): 50 mm ~ 115 mm
EAN-13 (13 Mil): 50 mm ~ 260 mm
2D PDF417 (6,67 Mil): 50 mm ~ 120 mm
Datamatrix (10 Mil): 35 mm ~ 125 mm
QrCode (15 Mil): 30 mm ~ 170 mm
