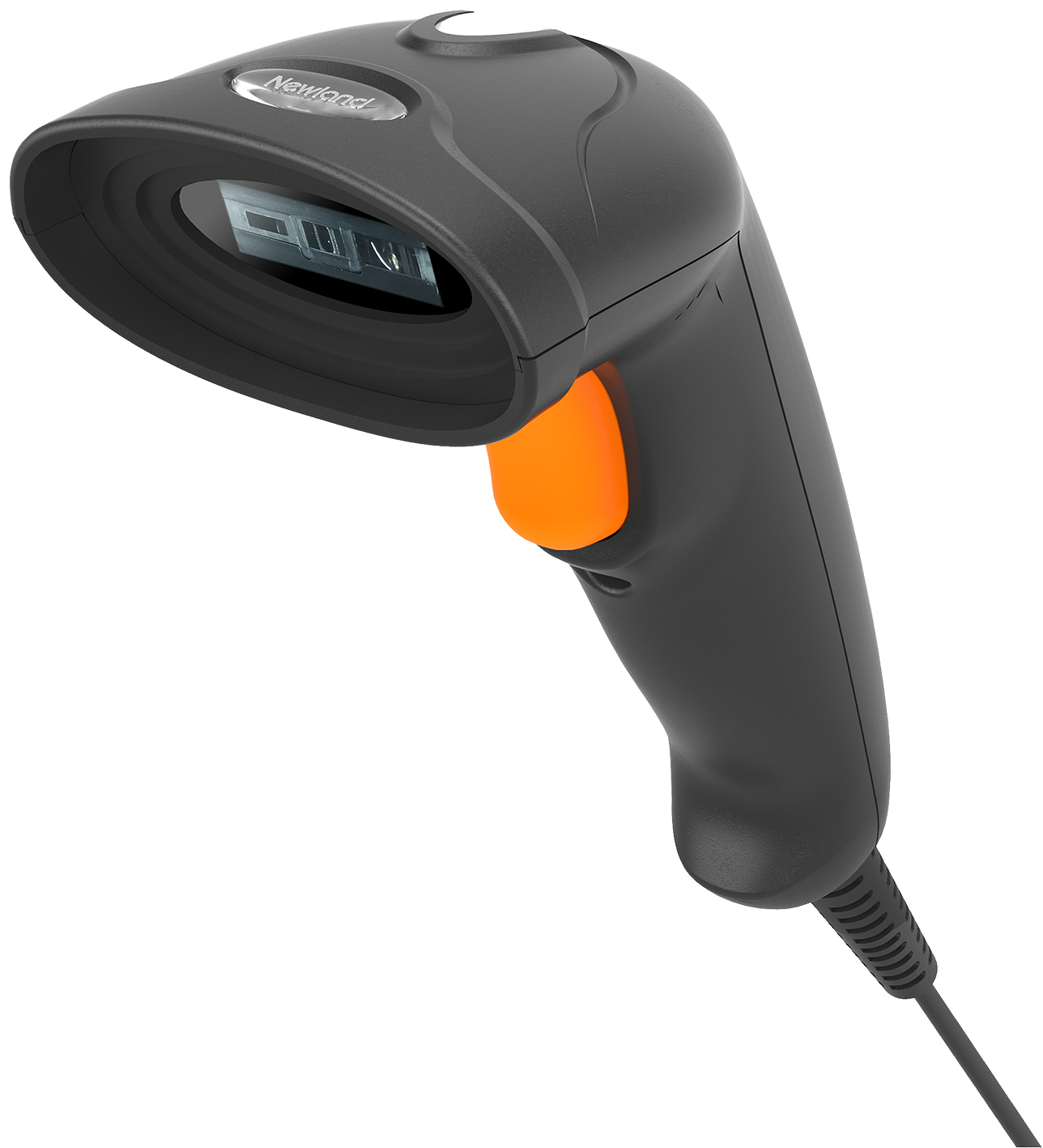

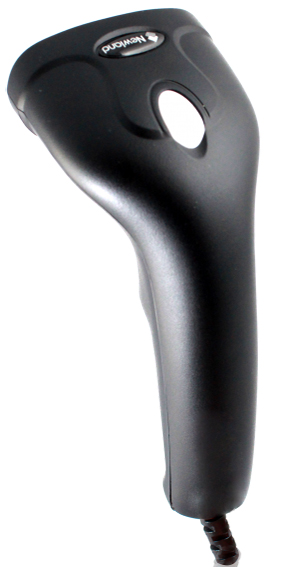

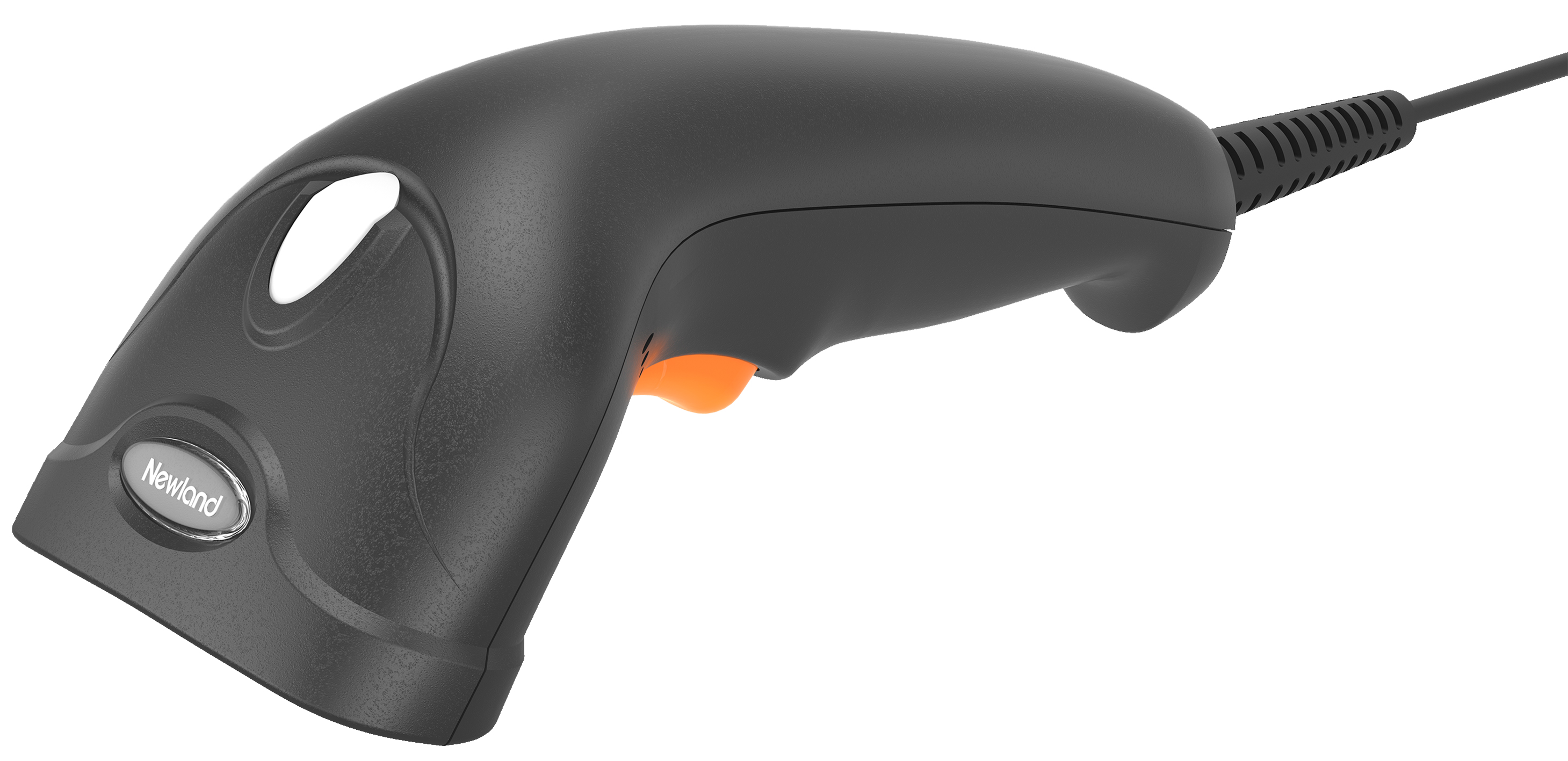

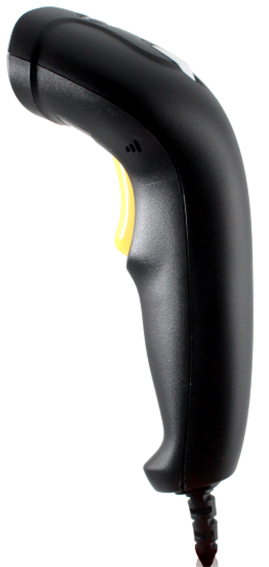

Newland HR1250
CCD Barcode Scanner



● 1D CCD barcode scanner
● Light weight, ergonomic design
● 300 scan per second
● 0,1 mm (4 mil) resolution
● 40 ~ 655 mm scanning distance
● USB interface

Performance
 Light source 610 ~ 640 nm Red LED
 Optical Type Linear Imager
 Depth of field 40 ~ 655 mm
 Scan Rate 300 Scans/Sec
 Scanning angle Pitch: ±60°; Roll: ±30°; Skew: ±60°
 Minimum Bar Width 0,1 mm (4 mil)
 Indicators (LED) LED and Beep volume
 Print Contrast ≥%30
 System Interfaces USB
 Physical
 Height 58,5 mm
 Length 163 mm
 Width 68,4 mm
 Weight 130 Gram
 Electrical
 Input voltage 5VDC
 Current Standby Current: 21 mA ±2 mA
Operating Current: 55 mA ± 5mA (Max. 120 mA)
 Environmental
 Operating temperature -20°C ~ 60°C
 Storage Temperature -40 °C ~ 85 °C
 Humidity %0 ~ %95 (non-condensing)
 ESD ±8 KV (contact discharge); ±10 KV (air discharge)
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
