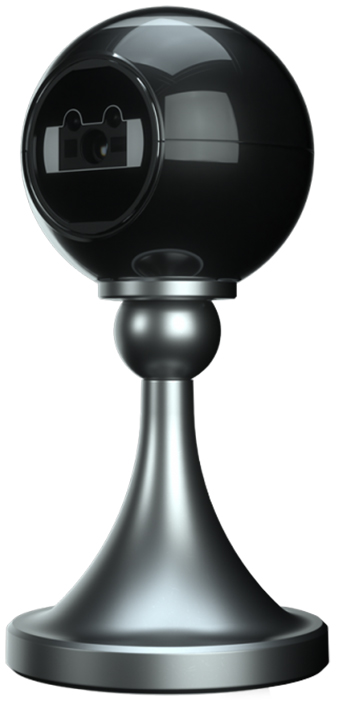

Newland FR5080
Desktop 2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 1280 x 800 Pixel Sensor
● Reading from LCD Screens
● USB-HID and USB-CDC Interfaces

 Performance
 Image Sensor 1280 x 800 Pixel CMOS
 Illumination Illumination: Red LED
Aiming: Green LED
 Print Contrast ≥%30
 Scanning angle Pitch: ±55°; Roll: ±360°; Skew: ±55°
 Field Of View Horizontal: 51°, Vertical: 32°
 Motion Tolerance 2,5m/s
 Indicators LED and Beep volume
 Supported Interfaces USB-HID and USB-CDC
 Physical
 Scanner Width: 68 mm
Height: 68,2 mm
Depth: 61,8 mm
 Cradle Width: 75 mm
Height: 153,5 mm
Depth: 75 mm
 Weight Scanner: 202 Gram
Cradle: 324 Gram
 Electrical
 Input Voltage 5VDC (±%5)
 Power Consumption 1530 mW (typical)
 Current Operation: 306 mA (Max. 311.5 mA)
StandBy: 173,9 mA
 Environmental
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±14 KV (air discharge); ±8 KV (direct discharge)
 Sealing IP42
 Certifications
 Certifications FCC Part 15 Class B, CE EMC Class B, RoHS, IEC62471
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K etc.
 2D Codes PDF417, QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One etc.
 Accessories
 Certifications Desktop Stand, Mounting Plate
